EN

Case Overview

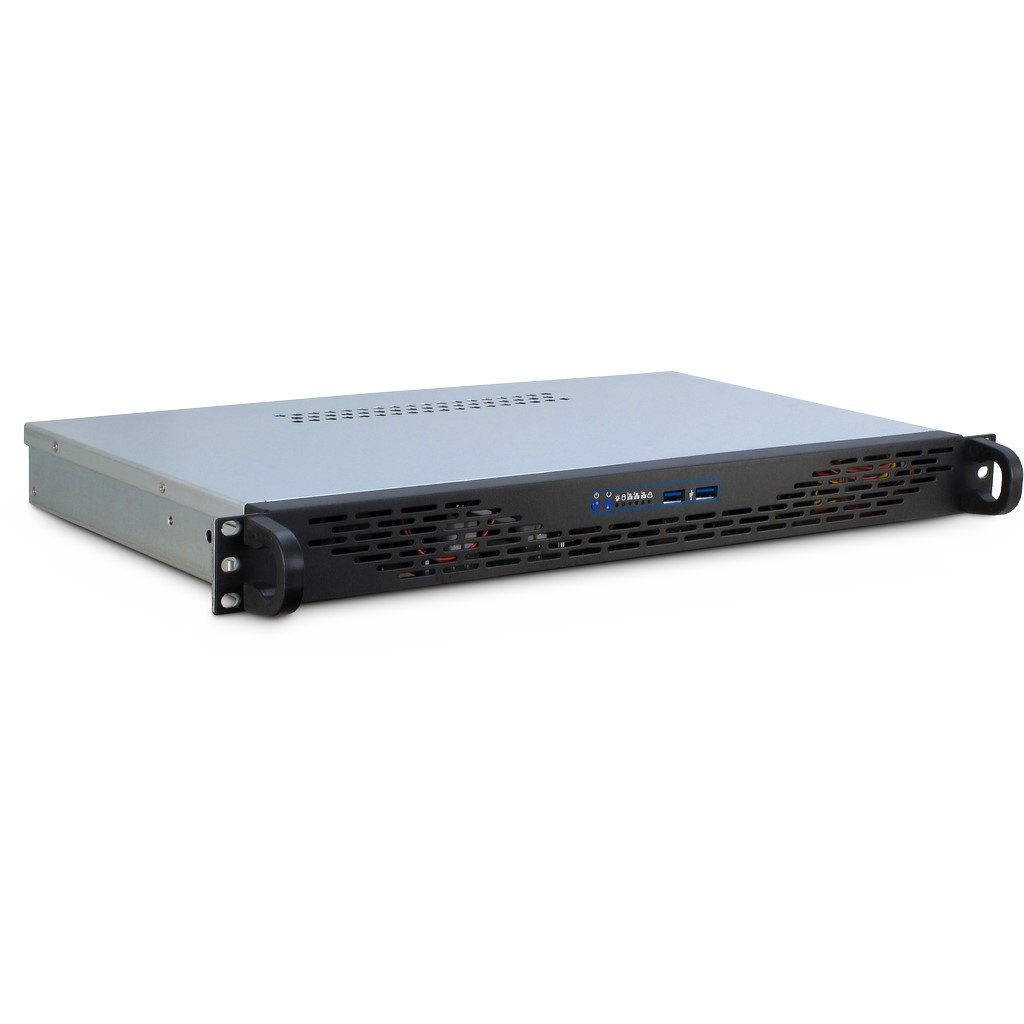

    K-125L
Art.-No.

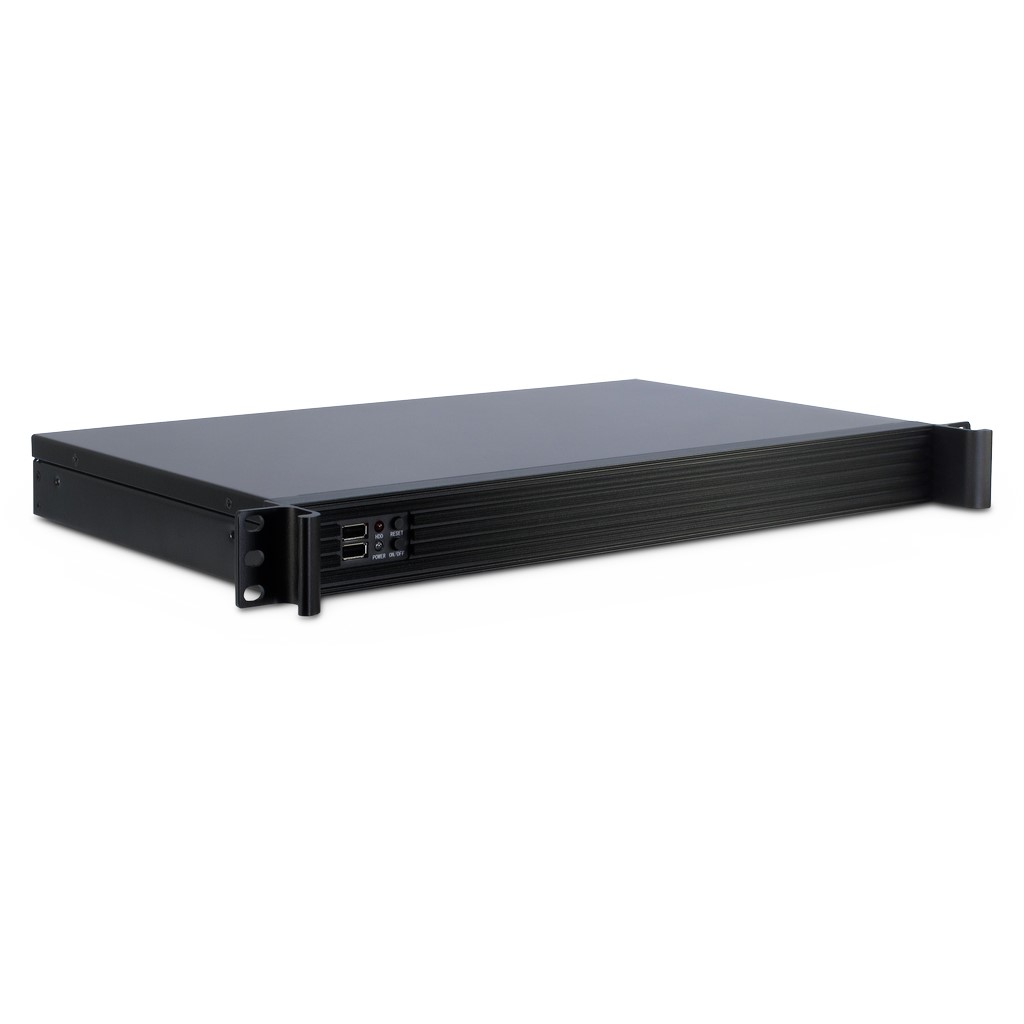

88887085		 K-126L
Art.-No.

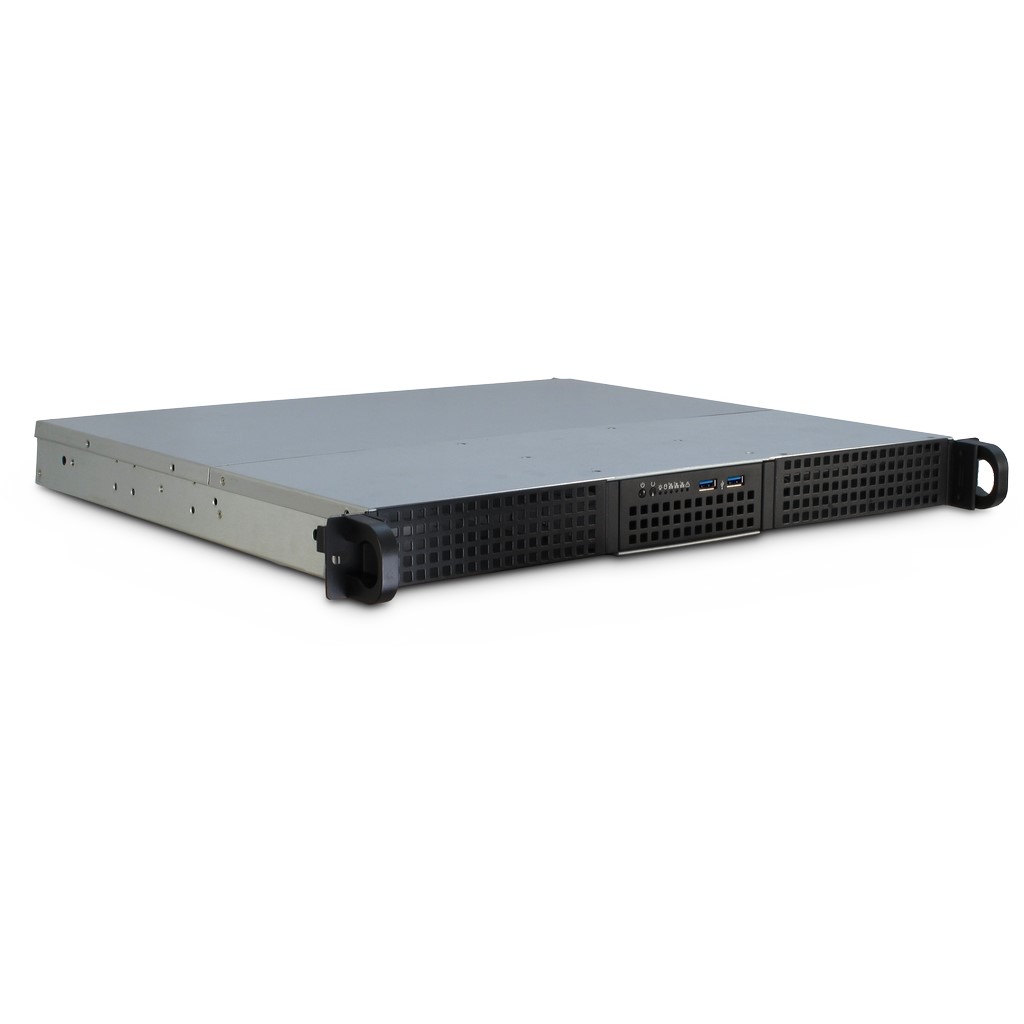

88887000		 10240
Art.-No.

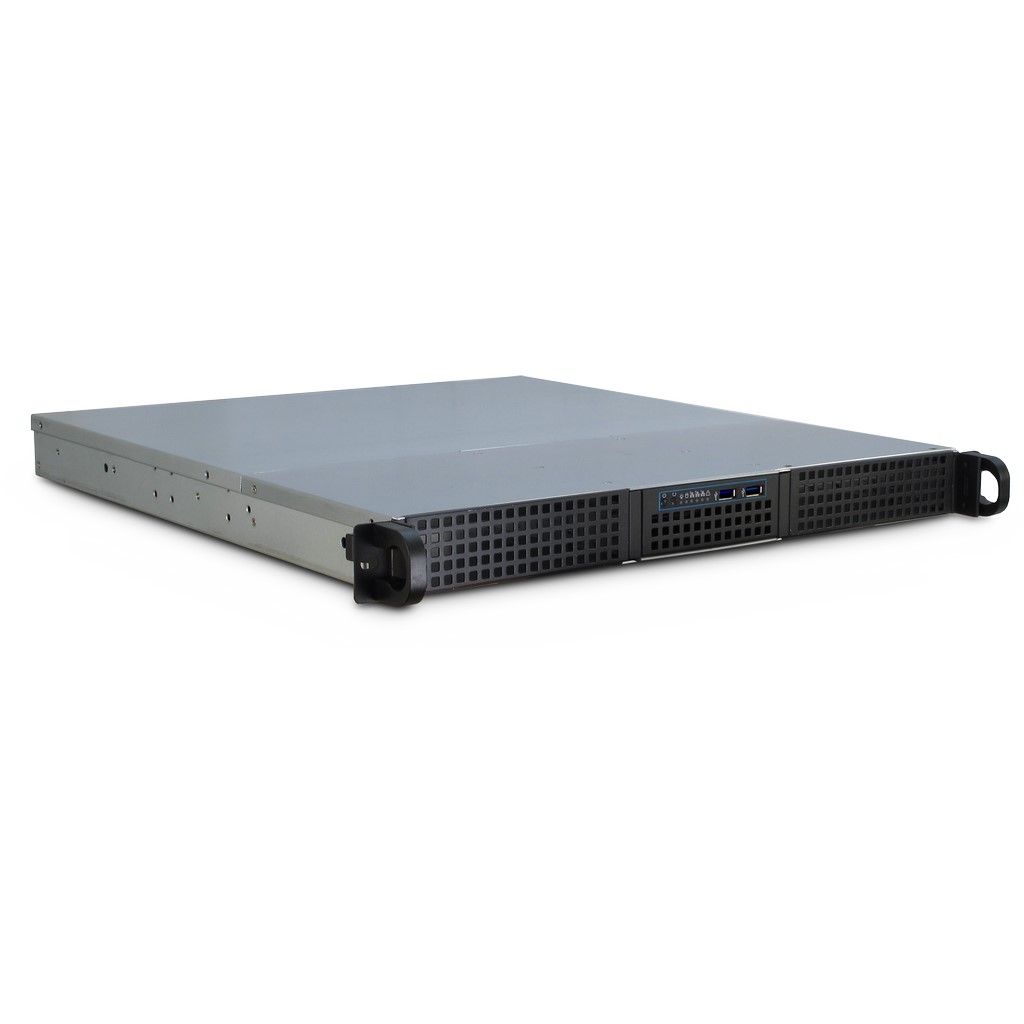

88887099		 10248
Art.-No.

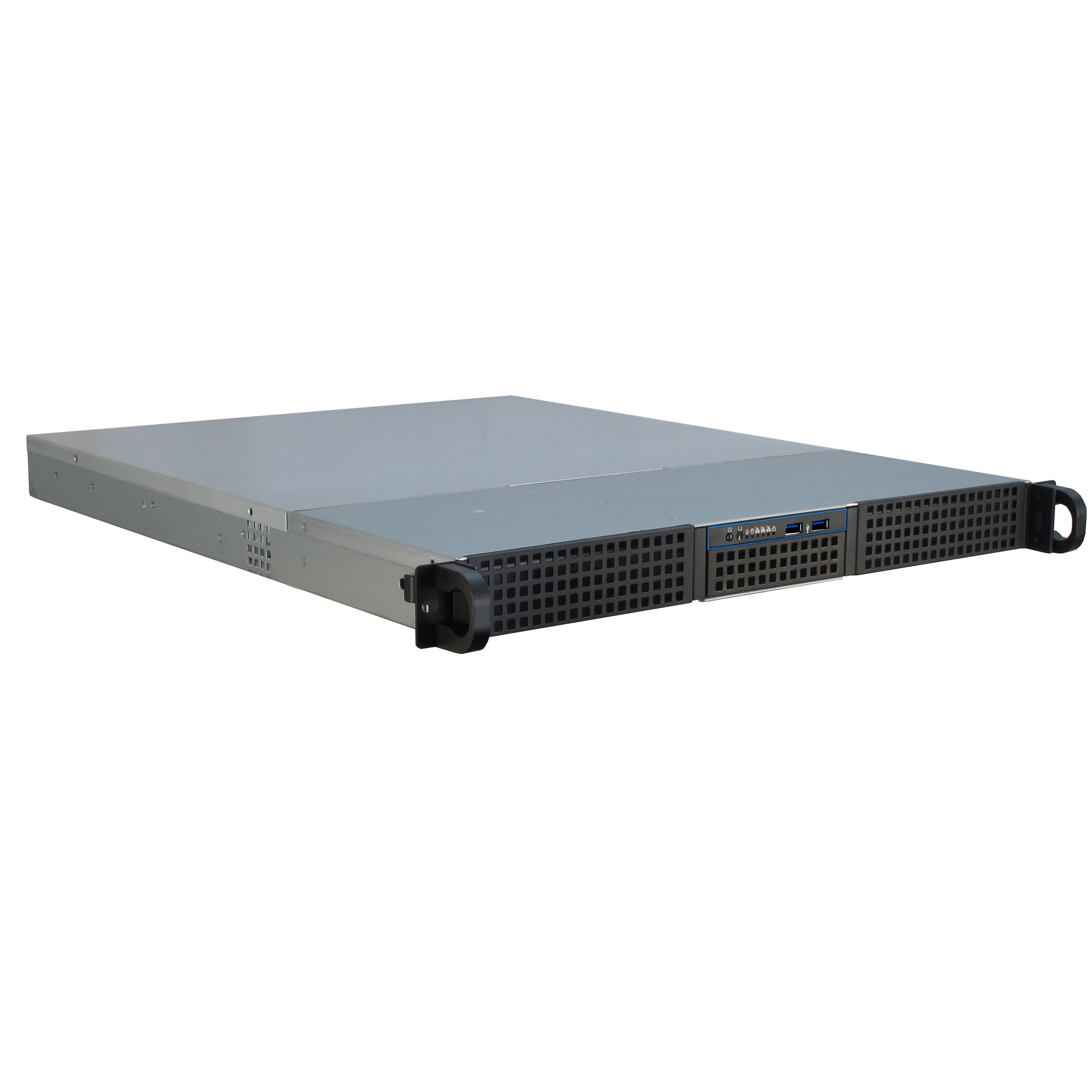

88887100		 10255
Art.-No.

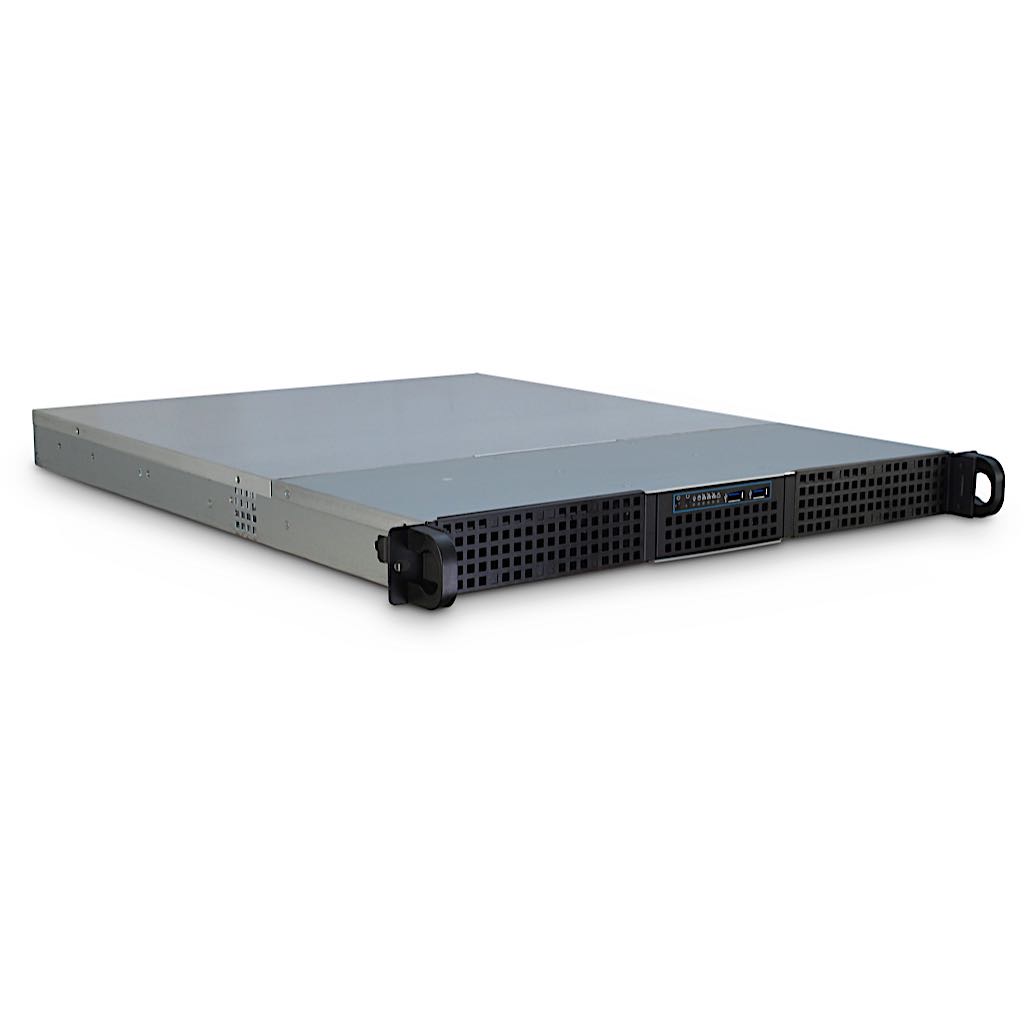

88887101		 10265
Art.-No.
88887102

Overview
as Excel file



    Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing
Dimension Height 1U 1U 1U 1U 1U 1U
Width 19" 19" 19" 19" 19" 19"
Depth (without handles) 250mm 250 mm 400 mm 408 mm 550 mm 650 mm

HDD mounting space 5.25" external - - 2 2 2 2
3.5" external - - - - - -
2.5" or 3.5" external - - - - - -
3.5" internal - - - - - -
2.5" internal - - - - - -
2.5" or 3.5" internal - - - - 1 1
2x2.5" or 1x3.5" internal 1 1 - - - -
4x2.5" or 1x3.5" internal - - 2 in 5.25" bay 2 in 5.25" bay 2 in 5.25" bay 2 in 5.25" bay

Backplane Backplane quantity - - - - - -
Hard disk quantity - - - - - -
Transfer speed - - - - - -
Connector hard disks - - - - - -
Connector controller - - - - - -
Connector power - - - - - -

Front connectors USB A 2x 3.0 2x 2.0 2x 3.0 2x 3.0 1x 3.2 Gen1, 1x 2.0 2x 3.2 Gen1
USB C - - - - - -
Headphone - - - - - -
Microphone - - - - - -

Fans 140mm - - - - - -
120mm - - - - - -
80mm - - - - - -
60mm - - - - - -
40mm 3x 3Pin to Molex 2x 3Pin to Molex 2x 3Pin 2x 3Pin 5x 4Pin to Molex
Hotplug		 5x 4Pin to Molex
Hotplug

Mounting options Mainboard Mini-ITX Mini-ITX up to ATX
up to 191 mm		 up to SSI EEB up to SSI CEB up to SSI EEB
Power supply Flex-ATX Flex-ATX Flex-ATX, 1HU Flex-ATX, 1HU,
1HU redundant		 Flex-ATX, 1HU,
1HU redundant		 Flex-ATX, 1HU,
1HU redundant
PCIe 1 1 1 1 1 1
CPU cooler < 32 mm < 32 mm < 32 mm < 32 mm < 32 mm < 32 mm
Graphics adapter < 170 mm < 170 mm < 191 mm < 270 mm < 270 mm < 340 mm
Fans - - - - - -

Scope of delivery   Case Case Case Case Case Case
  Universal I/O shield Universal I/O shield Universal I/O shield Universal I/O shield Universal I/O shield Universal I/O shield
  Mounting frame
for power supplies		 Mounting frame for FlexATX PSU Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Adapter 5.25" to
Slim-DVD + 3.5"

Warranty   24 Months 24 Months 24 Months 24 Months 24 Months 24 Months

Logistic data Net weight 2.79 kgs 2.59 kgs 5.00 kgs 5.60 kgs 6.90 kgs 7.80 kgs
Gross weight 3.91 kgs 3.62 kgs 6.60 kgs 7.44 kgs 8.91 kgs 10.41 kgs
Article number 88887085 88887000 88887099 88887100 88887101 88887102
GTIN 4260133125711 4260133129849 4260133126206 4260133126213 4260133126220 4260133126237
Packing unit 1/ 65 (Pallet) 1/ 45 (Pallet) 1/ 42 (Pallet) 1/ 30 (Pallet) 1/ 27 (Pallet) 1/ 27 (Pallet)

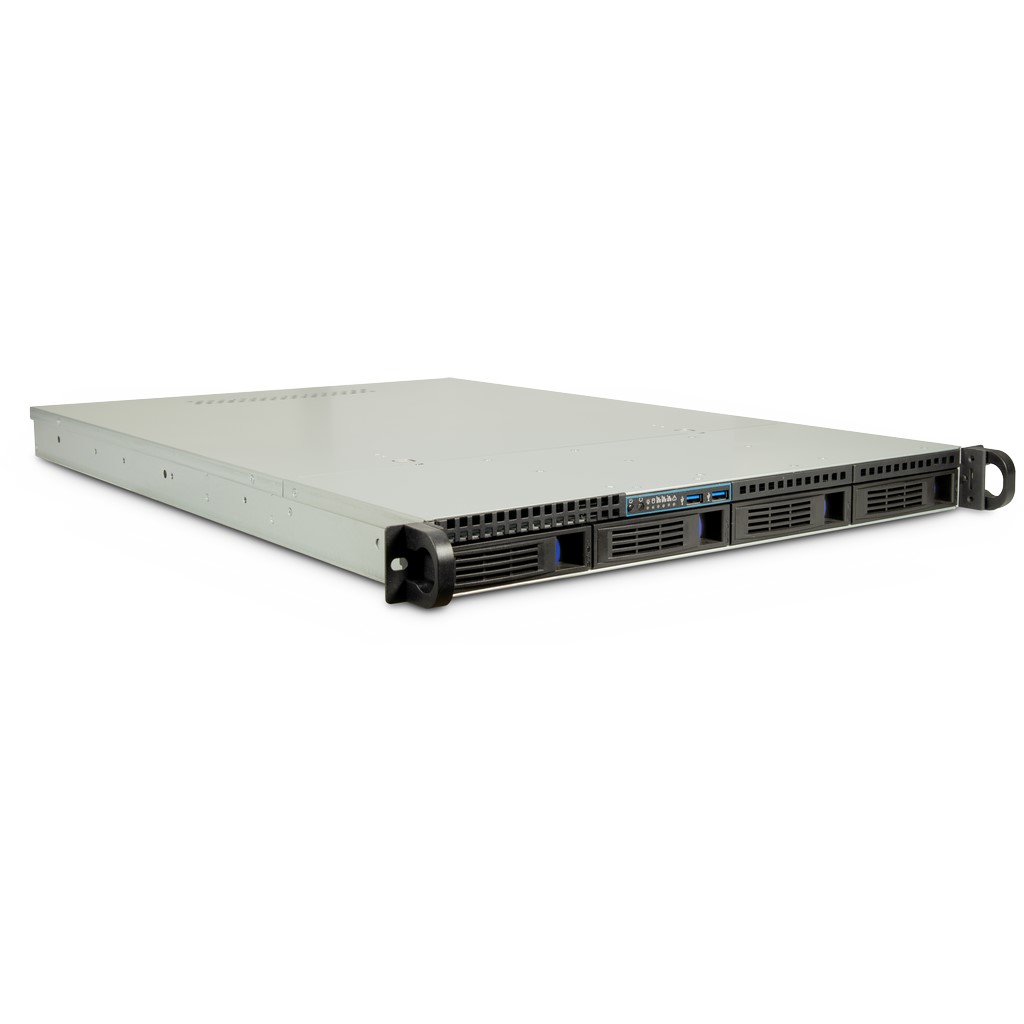

    1404
Art.-No.
88887115		 1528L
Art.-No.

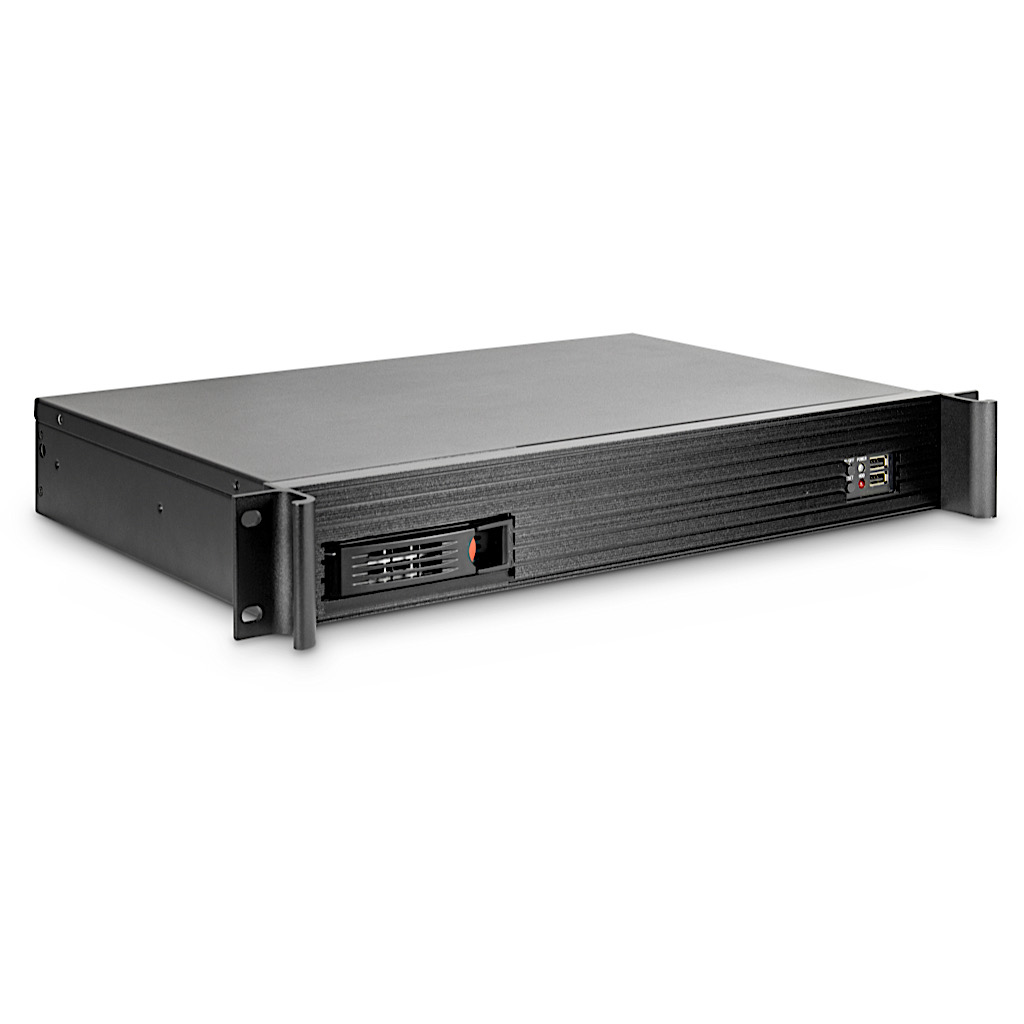

88887210		 1528-1
Art.-No.
88887377
Overview
as Excel file



    Techn. Drawing Techn. Drawing Techn. Drawing
Dimension Height 1U 1.5U 1.5U
BreiteWidth 19" 19" 19"
Depth (without handles) 650 mm 280 mm 280 mm

HDD mounting space 5.25" external 1 Slim - -
3.5" external - - -
2.5" or 3.5" external 4 2 1
3.5" internal - - -
2.5" internal 3 2 2
2,5" or 3,5" internal - - -
2x2.5" or 1x3.5" internal - - -
4x2.5" or 1x3.5" internal - - -

Backplane Backplane quantity 1 1 1
Hard disk quantity 4 2 1
Transfer speed 6 Gb/s 6 Gb/s 6 Gb/s
Connector hard disks SAS/ SATA SAS/ SATA SAS/ SATA
Connector controller SFF-8087 SATA SATA
Connector power 1x Molex 1x Molex 1x Molex

Front connectors USB A 2x 3.2 Gen1 2x 2.0 2x 2.0
USB C - - -
Headphone - - -
Microphone - - -

Fans 140mm - - -
120mm - - -
80mm - - -
60mm - 2x Molex 2x Molex
40mm 5x 4Pin to Molex Hotplug - -

Mounting options Mainboard up to SSI EEB Mini-ITX Mini-ITX
Power supply Flex-ATX, 1HU Flex-ATX Flex-ATX
PCIe 1 2 2
CPU cooler < 32 mm < 40 mm < 40 mm
Graphics adapter < 345 mm < 170 mm < 145 mm
Fans - - -

Scope of delivery   Case Case Case
  Mounting frame
for power supplies		 - -

Warranty   24 Months 24 Months 24 Months

Logistic data Net weight 7.94 kgs 4.29 kgs 4.11 kgs
Gross weight 10.02 kgs 6.03 kgs 5.56 kgs
Article number 88887115 88887210 88887377
GTIN 4260133126367 4260455641722 420455647892
Packing unit 1/ 27 (Pallet) 1/ 32 (Pallet) 1/ 32 (Pallet)

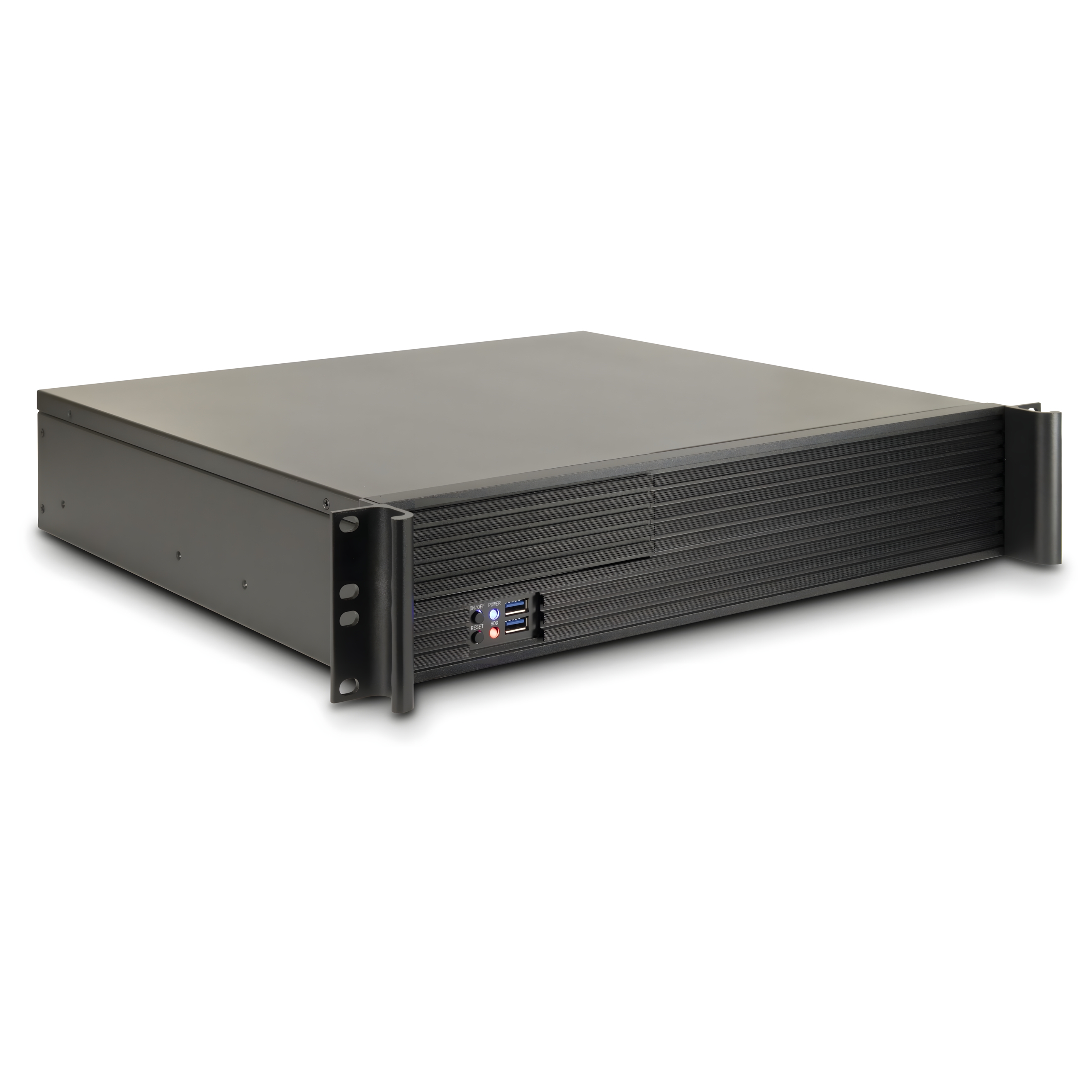

    K-240L
Art.-No.
88887331		 2098-SK
Art.-No.

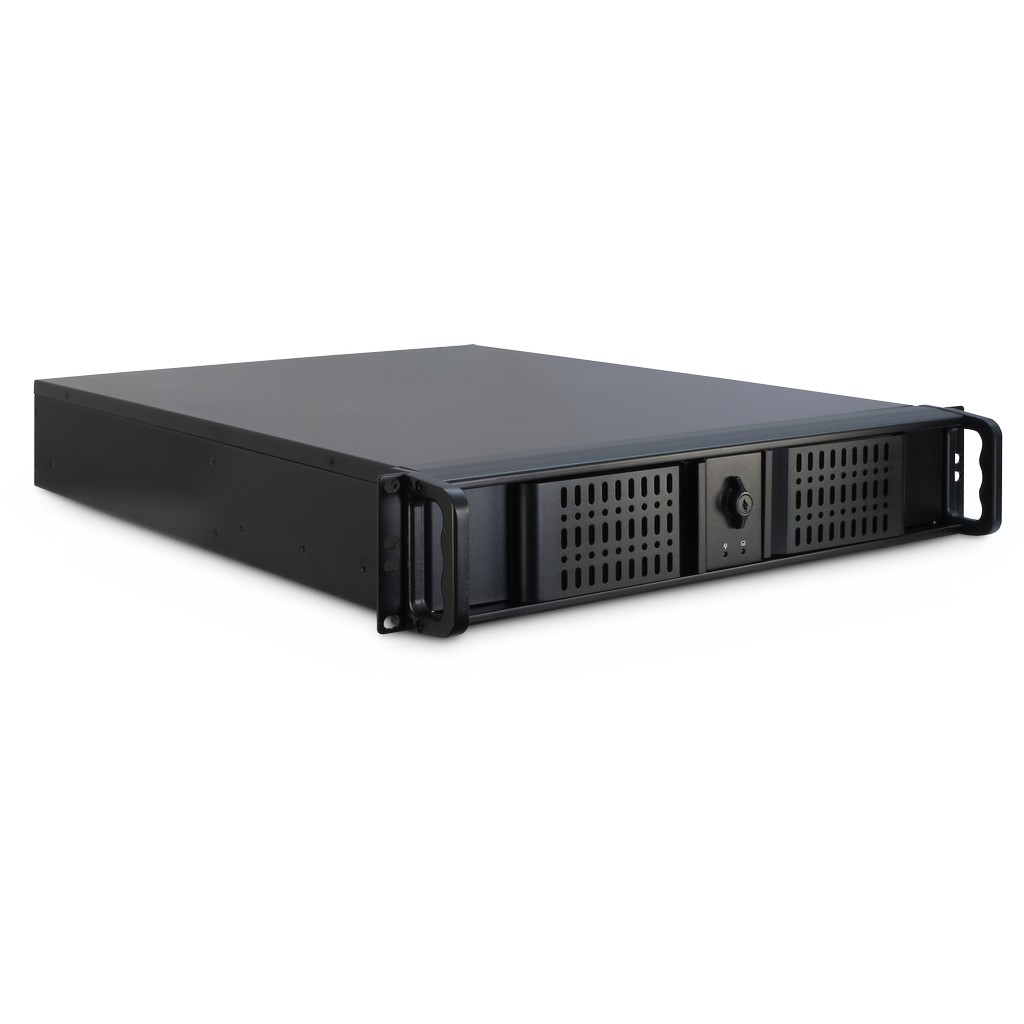

88887180		 2098-SL
Art.-No.

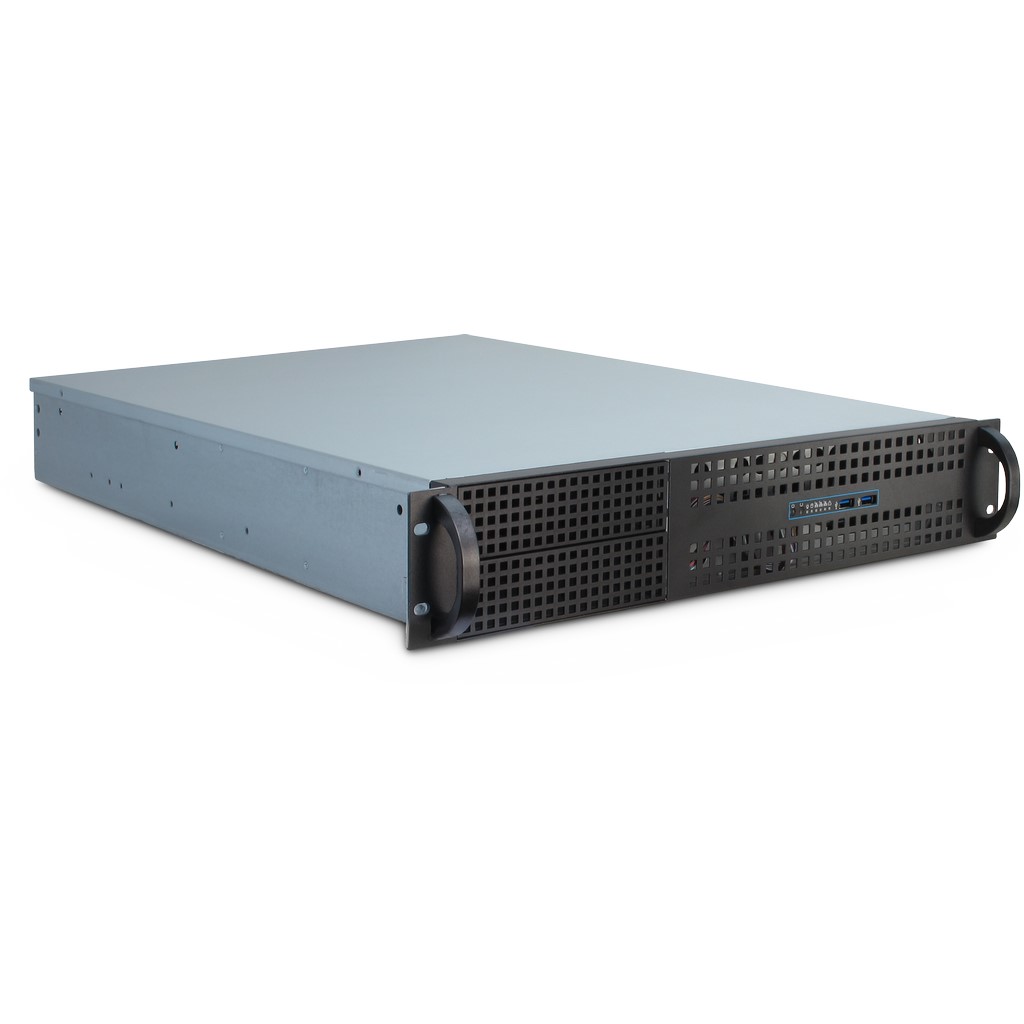

88887127		 2129-N
Art.-No.
88887194		 20240
Art.-No.
88887103		 20248
Art.-No.

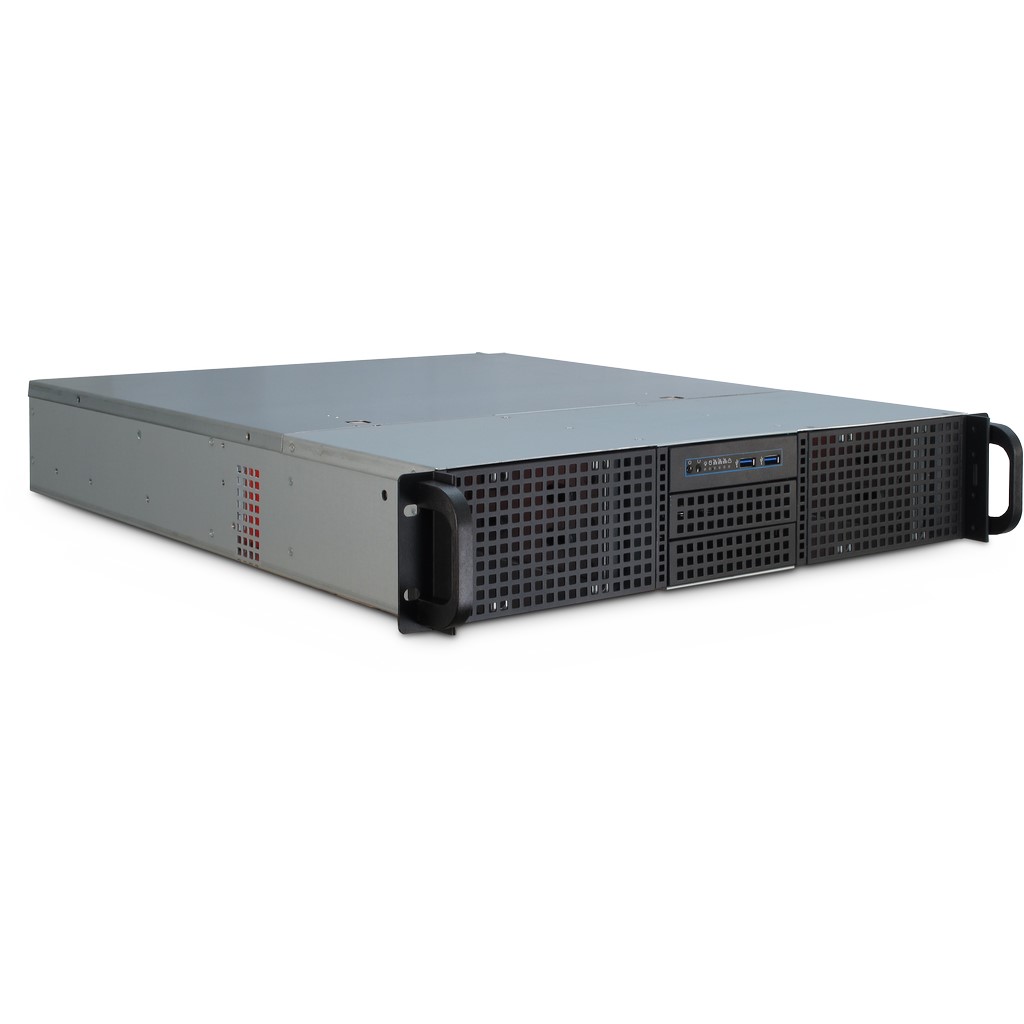

88887104		 20255
Art.-No.
88887105
Overview
as Excel file



    Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing
Maße Height 2U 2U 2U 2U 2U 2U 2U
Width 19" 19" 19" 19" 19" 19" 19"
Depth (without handles) 400 mm 450 mm 560 mm 650 mm 400 mm 480 mm 550 mm

HDD mounting space 5.25" external 1 1 1 2 4 instead of 2x HDD cage 4 instead of 2x HDD cage 4 instead of 2x HDD cage
3.5" external - 1 1 - - - -
2.5" or 3.5" external - - - - - - -
3.5" internal 4 6 4 7 6 in 2x HDD cage 6 in 2x HDD cage 6 in 2x HDD cage
2.5" internal 2 3 3 - 1 1 1
2.5" or 3.5" internal - - - - 2 2 2
2x2.5" or 1x3.5" internal - - - - - - -
4x2.5" or 1x3.5" internal - - - - - - -

Backplane Backplane quantity - - - - - - -
Hard disk quantity - - - - - - -
Transfer speed - - - - - - -
Connector hard disks - - - - - - -
Connector controller - - - - - - -
Connector power - - - - - - -

Front connectors USB A 2x 3.2 Gen1 2x 2.0 2x 2.0 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1
USB C - - - - - - -
Headphone - - - - - - -
Microphone - - - - - - -

Fans 140mm - - - - - - -
120mm - - - - - - -
80mm 2x Molex - 3x 3Pin to
1x Molex		 4x 3Pin auf
1x Molex		 2x 3Pin 2x 3Pin 4x 4Pin to
1x Molex Hotplug
60mm - 2x Molex - - - - -
40mm - - - - - - -

Mounting options Mainboard ITX/ mATX up to mATX up to ATX up to SSI EEB up to ATX
up to 191 mm depth		 up to ATX up to ATX
Power supply ATX (80mm Fan) ATX (80mm Fan) ATX (80mm Fan)
or 2 HU 		ATX (80mm),
1HU/2HU or
2HU redundant		 Flex, 1HUServer
up to 191mm depth		 1HU/2HU or
2HU redundant		 1HU/2HU or
2HU redundant
PCIe 4x Low Profile 4x Low Profile 7x Low Profile 7x Low Profile 7x Low Profile 7x Low Profile 7x Low Profile
CPU cooler < 60 mm < 65 mm < 65 mm < 65 mm < 65 mm < 65 mm < 65 mm
Graphics adapter < 244 mm < 260 mm < 290 mm < 350 mm < 191 mm < 270 mm < 280 mm
Fans 2x 60 mm - 1x 80 mm
2x 60 mm		 1x 60 mm - - 2x 80 mm

Scope of delivery   Case Case Case Case Case Case Case
  Screws Screws Screws Screws Screws Screws Screws
  - Keys Keys Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies
            Drive rails Drive rails Drive rails

Warranty   24 Months 24 Months 24 Months 24 Months 24 Months 24 Months 24 Months

Logistic data Net weight 5.35 kgs 6.48 kgs 8.72 kgs 8.93 kgs 7.39 kgs 8.04 kgs 9.10 kgs
Gross weight 6.72 kgs 8.38 kgs 10.80 kgs 11.27 kgs 9.10 kgs 10.08 kgs 11.4 kgs
Article number 88887331 88887180 88887127 88887194 8887103 88887104 88887105
GTIN 4260455646383 4260133128125 4260133128071 4260133128385 426033126244 4260133126251 4260133126268
Packing unit 1/ 24 (Pallet) 1/ 24 (Pallet) 1/ 20 (Pallet) 1/ 18 (Pallet) 1/ 27 (Pallet) 1/ 18 (Pallet) 1/ 24 (Pallet)

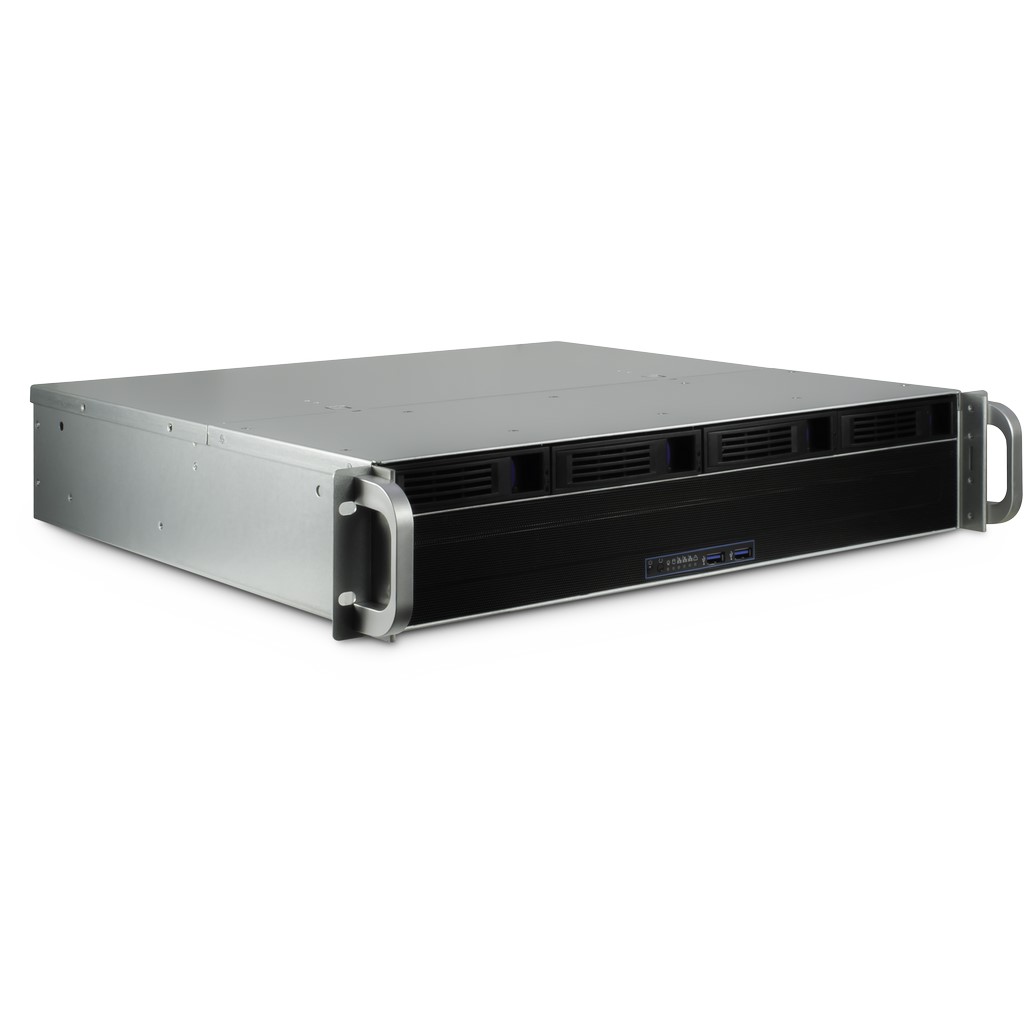

    2404S
Art.-No.

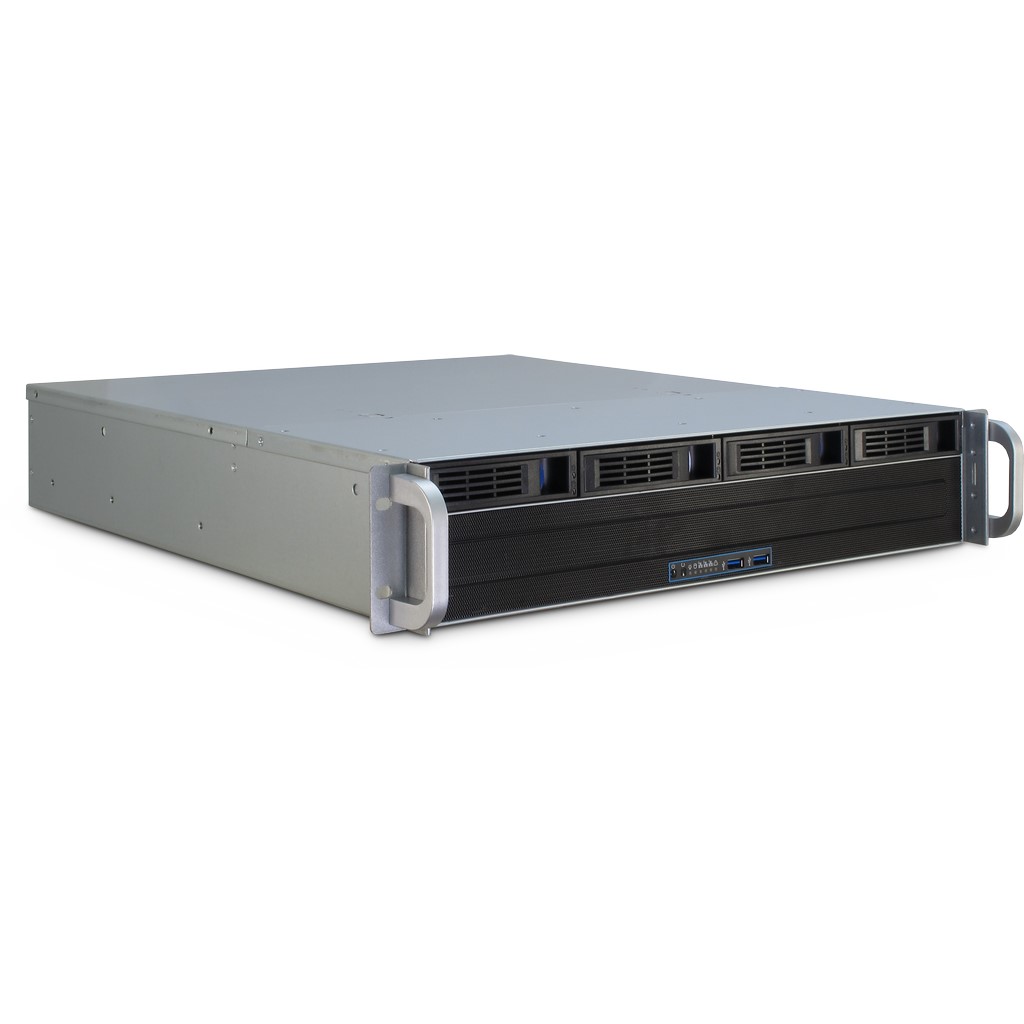

88887190		 2404L
Art.-No.

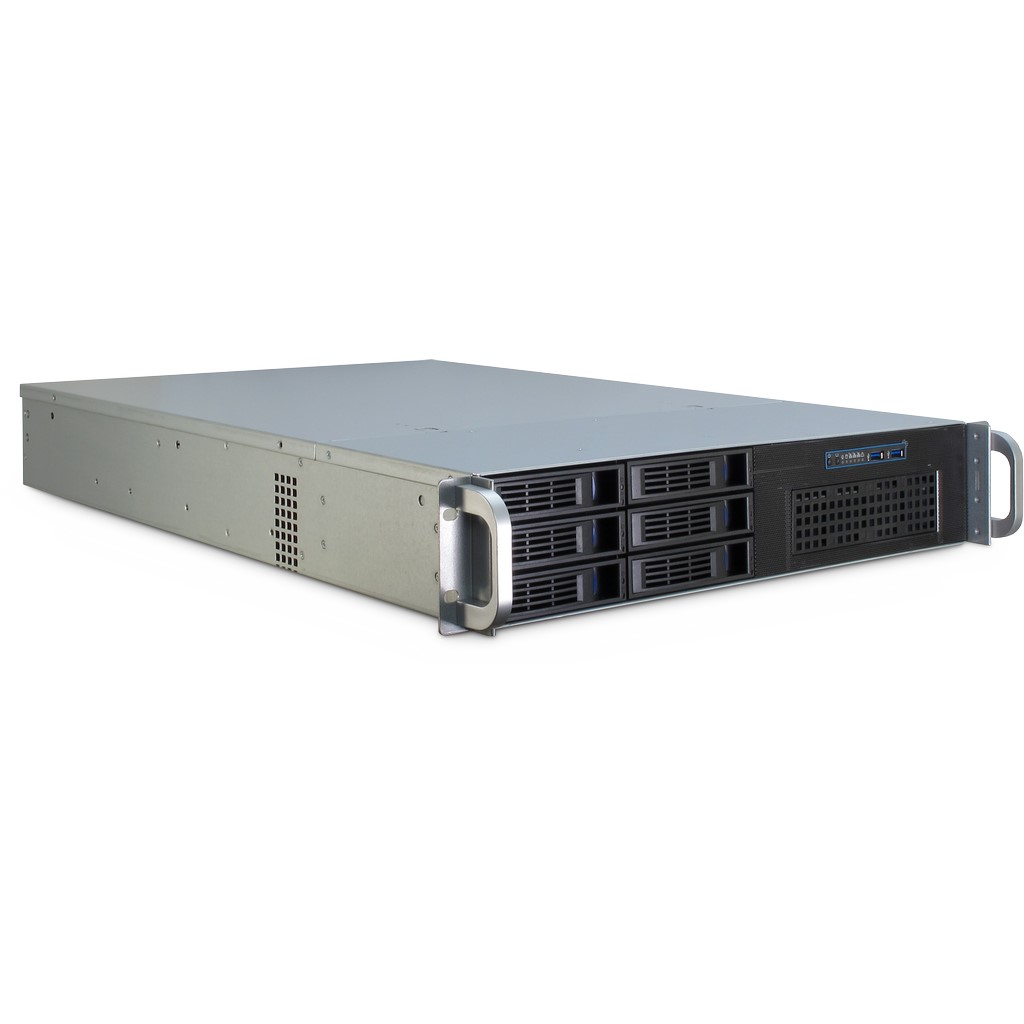

88887113		 2406
Art.-No.
88887196		 2408
Art.-No.

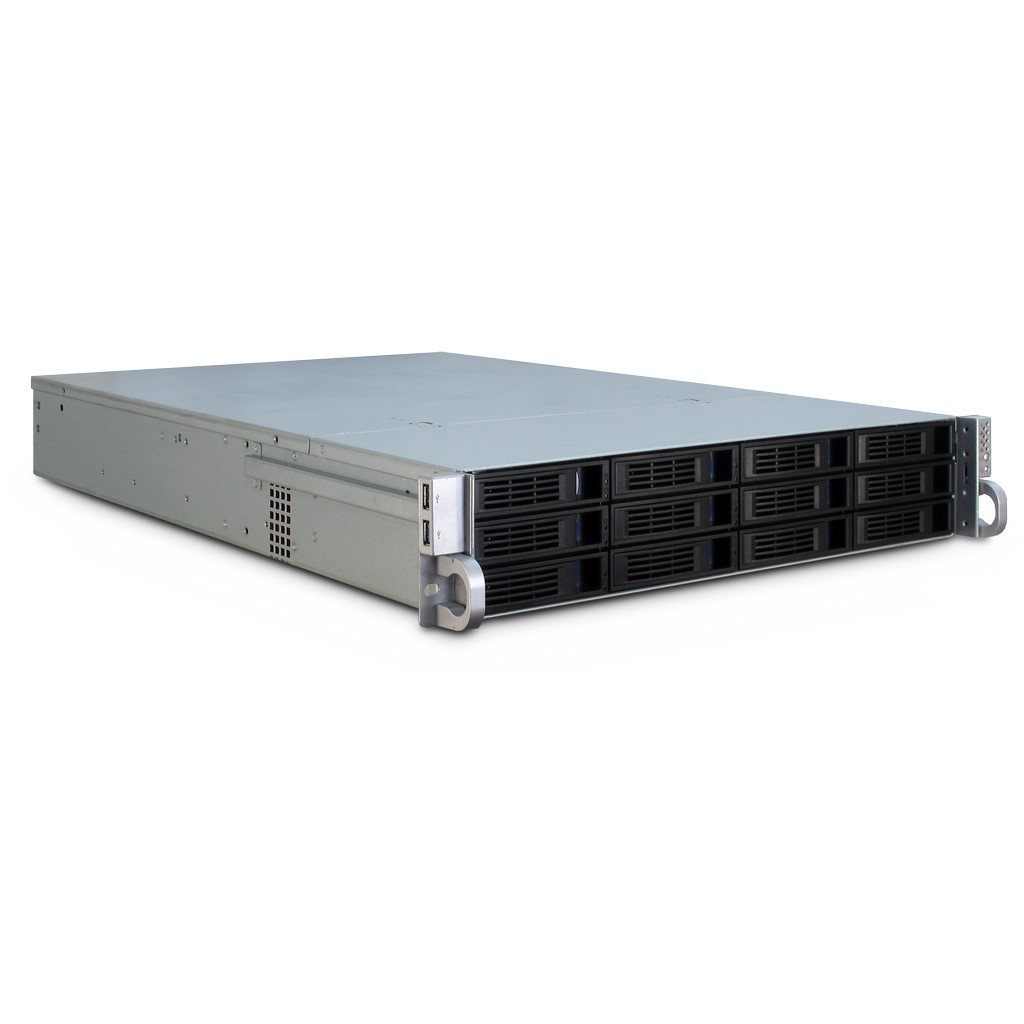

88887117		 2412
Art.-No.

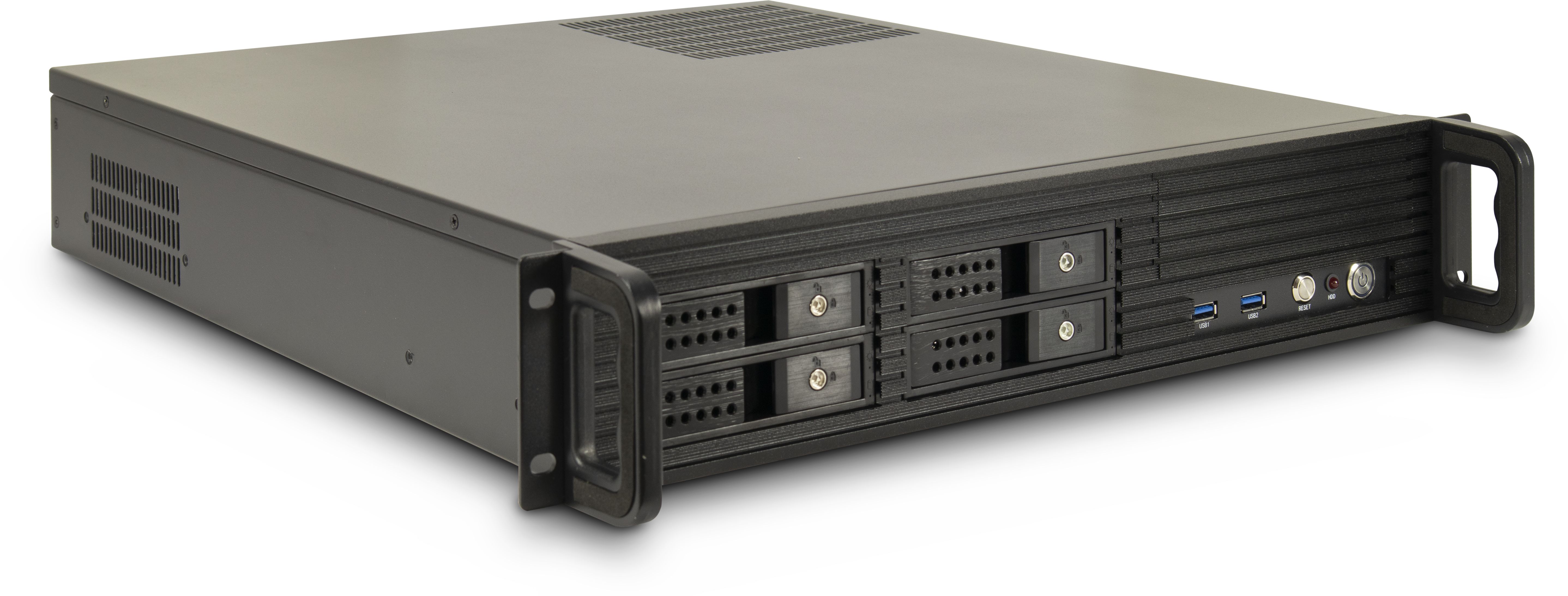

88887118		 2504
Art.-No.
88887334

Overview as
Excel file



    Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing
Dimension Height 2U 2U 2U 2U 2U 2U
Width 19" 19" 19" 19" 19" 19"
Depth (without handles) 400 mm 480 mm 650 mm 650 mm 650 mm 480 mm

HDD mounting space 5.25" external - - 1 1 Slim DVD - 1
3.5" external - - - -   -
2.5" or 3.5" external 4 4 6 8 12 4
3.5" internal - - - - 1 -
2.5" internal - - - 1 instead of
SLIM DVD		 2 2
2.5" or 3.5" internal 1 1 1 2 - -
2x2.5" or 1x3.5" internal - - - - - -
4x2.5" or 1x3.5" internal - - 1x 5,25" bay - - -

Backplane Backplane quantity 1 1 3 2 3 2
Hard disk quantity 4 4 6 8 12 2
Transfer speed 12Gbit/s 12 Gb/s 12Gbit/s 12 Gb/s 12Gbit/s 6Gbit/s
Connector hard disks SAS/ SATA SAS/ SATA SAS/ SATA SAS/ SATA SAS/ SATA SAS/ SATA
Connector controller SFF-8643 SFF-8087 SATA SFF-8643 SFF-8087 SATA
Connector power 1x Molex 1x Molex 1x Molex 1x Molex 1x Molex 1x Molex

Front connectors USB A 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1
USB C - - - - - -
Headphone - - - - - -
Microphone - - - - - -

Fans 140mm - - - - - -
120mm - - - - - -
80mm - - 4x 4Pin to
1x Molex Hotplug		 4x 4Pin to
1x Molex Hotplug		 4x 4Pin to
1x Molex Hotplug		 -
60mm - - - - - 2x Molex
40mm 3x 3 Pin 3x 3 Pin - - - -

Mounting options Mainboard ITX/ mATX ITX/ mATX up to SSI EEB up to SSI EEB up to SSI EEB ITX/ mATX
Power supply ATX (80mm Fan) ATX (80mm Fan) or PS2/Mini-redundant 1HU/2HU or
2HU redundant		 1HU/2HU or
2HU redundant		 1HU/2HU or
2HU redundant		 ATX (80mm Fan)
PCIe 4x Low Profile 4x Low Profile 7x Low Profile 7x Low Profile 7x Low Profile 4x Low Profile
CPU cooler < 65 mm < 32 mm / 65 mm < 65 mm < 65 mm < 65 mm < 60 mm
Graphics adapter < 190 mm < 270 mm < 345 mm < 345 mm < 345 mm < 250 mm
Fans - - - - - -

Scope of delivery   Case Case Case Case Case Case
  Screws Screws Screws Screws Screws Screws
  Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies

Warranty   24 Months 24 Months 24 Months 24 Months 24 Months 24 Months

Logistic data Net weight 5.97 kgs 6.72 kgs 9.65 kgs 10.10 kgs 10.50 kgs 7.71 kgs
Gross weight 7.67 kgs 8.75 kgs 12.05 kgs 12.36 kgs 12.72 kgs 10.53 kgs
Article number 88887190 88887113 88887196 88887117 88887118 88887334
GTIN 4260133128613 4260133128644 4260133128729 4260133126381 4260133126398 4260455646413
Packing unit 1/ 21 (Pallet) 1/ 21 (Pallet) 1/ 21 (Pallet) 1/ 21 (Pallet) 1/ 21 (Pallet) 1/ 15 (Pallet)

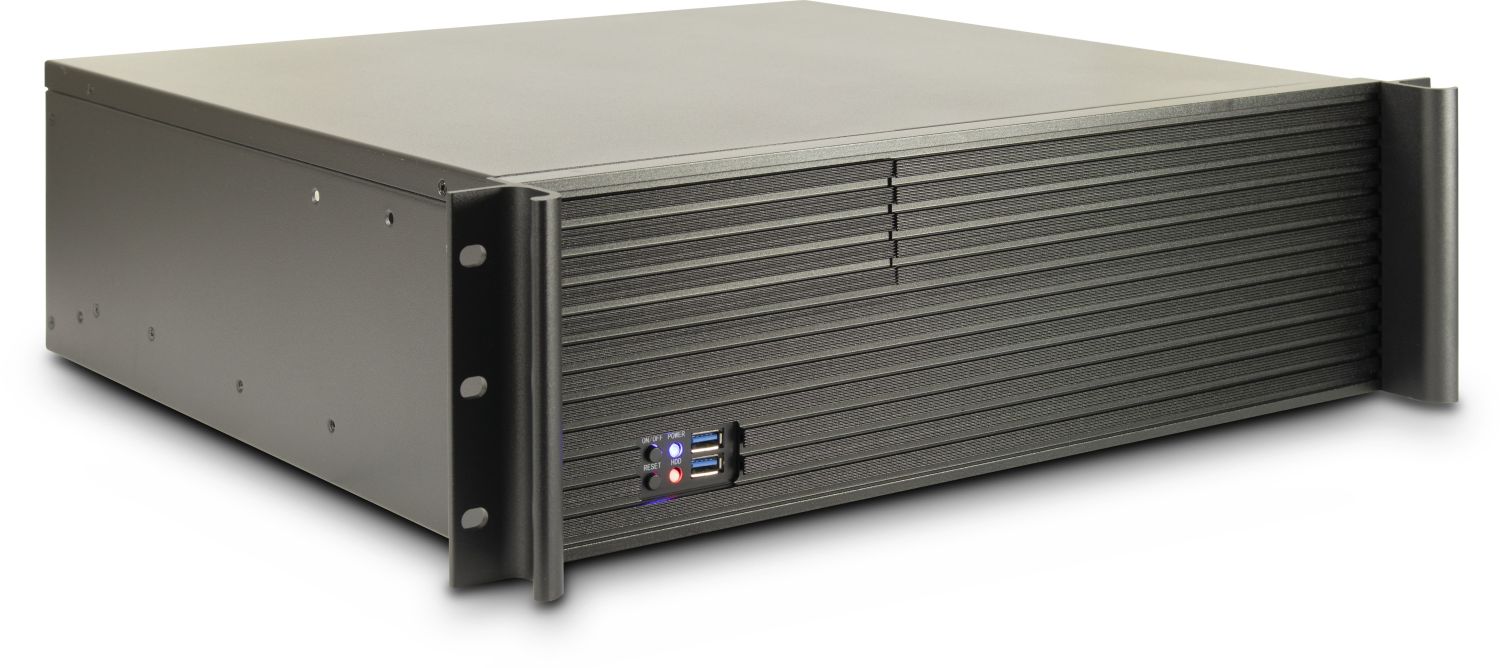

    K-340L
Art.-No.

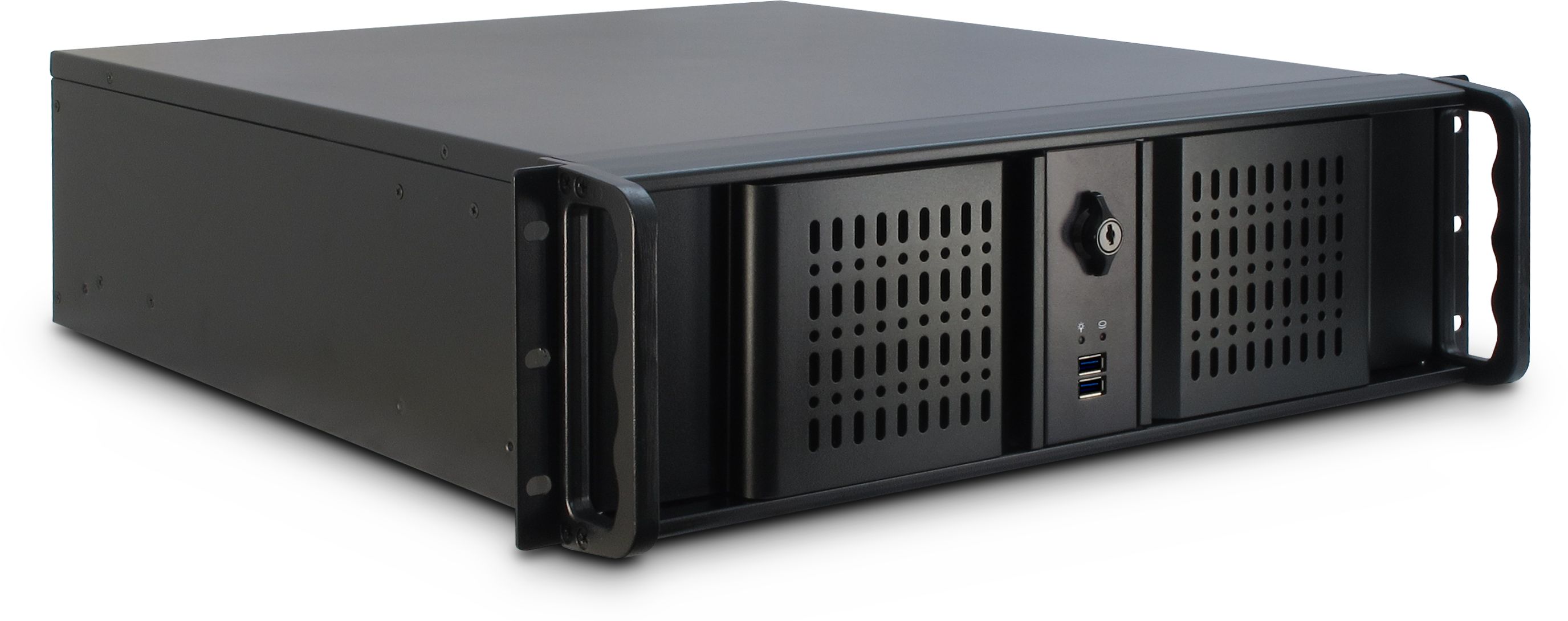

88887332		 3098-S
Art.-No.

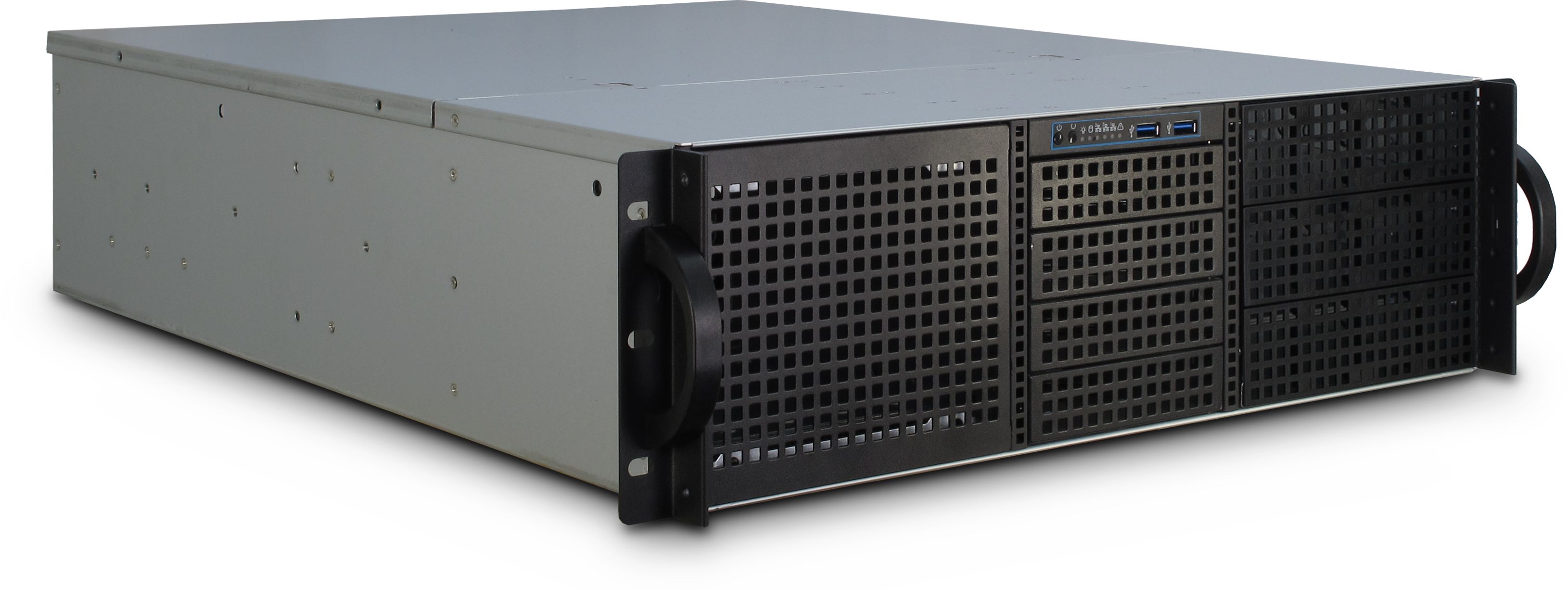

88887176		 30240
Art.-No.

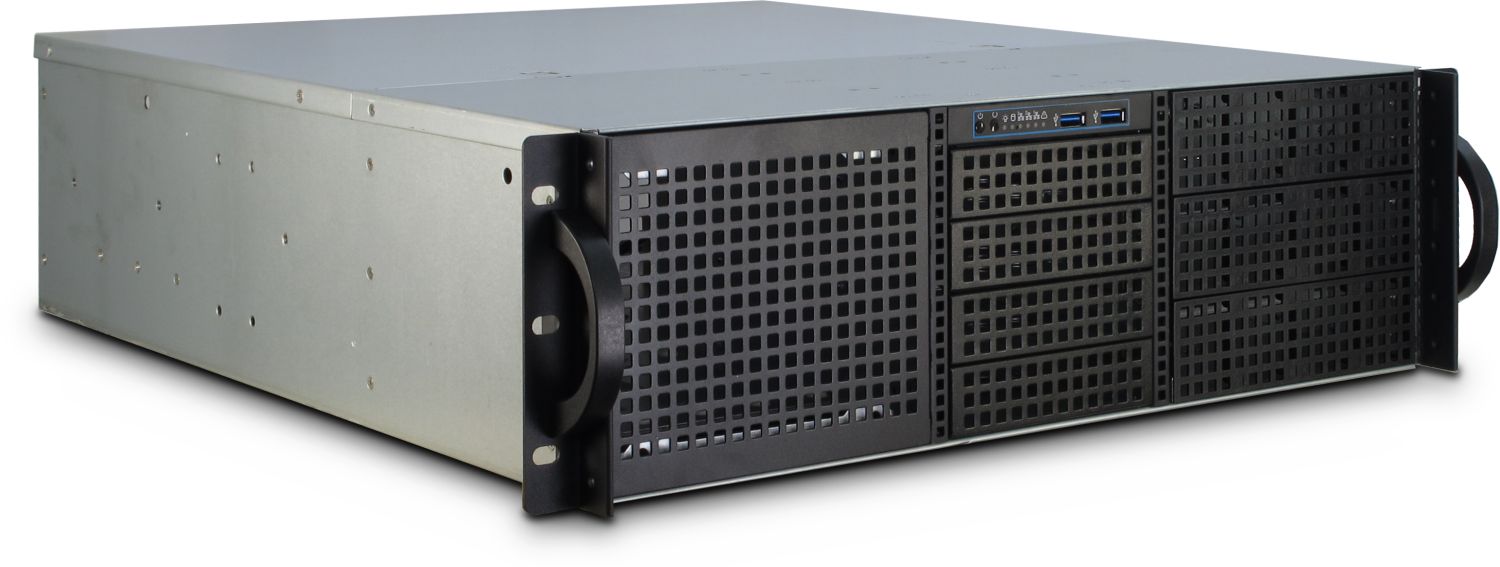

88887106		 30248
Art.-No.

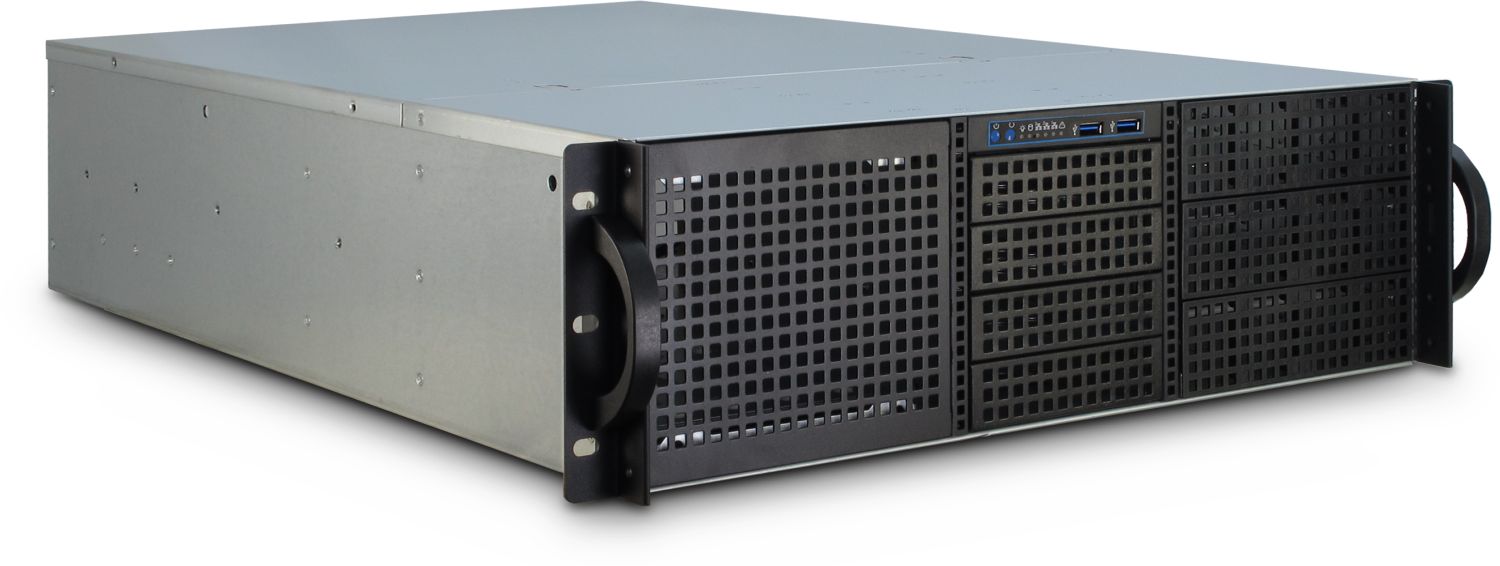

88887107		 30255
Art.-No.
88887108		 30765
Art.-No.
88887385
Overview as
Excel file
    Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing
Dimension Height 3U 3U 3U 3U 3U 3U
Width 19" 19" 19" 19" 19" 19"
Depth (without handles) 400 mm 465 mm 400 mm 480 mm 550 mm 650 mm

HDD mounting space

 5.25" external 1 4 3 instead of
1x HDD cage,
3 in 3x 5.25" bays
 3 instead of
1x HDD cage,
3 in 3x 5.25" bays		 3 instead of
1x HDD cage,
3x in 3x 5.25" bays
 6 instead of
2x HDD cage
3.5" external - - - - - -
2.5" or 3.5" external - - - - - -
3.5" internal 8 5 5
in 1x HDD cage		 5
in 1x HDD cage		 5
in 1x HDD cage		 10
in 2x HDD cages
2.5" internal 2 6 - - - -
2.5" or 3.5" internal - - 4 4 4 4
2x2.5" or 1x3.5" internal - - 1x in 1x 5.25" bay 1x in 1x 5.25" bay 1x in 1x 5.25" bay -
4x2.5" or 1x3.5" internal - - 2x in 2x 5.25" bays 2x in 2x 5.25" bays 2x in 2x 5.25" bays -

Backplane Backplane quantity - - - - - -
Hard disk quantity - - - - - -
Transfer speed - - - - - -
Connector hard disks - - - - - -
Connector controller - - - - - -
Connector power - - - - - -

Front connectors USB A 2x 3.2 Gen1 2x 2.0 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1 1x 3.2 Gen1
1x 2.0
USB C - - - - - -
Headphone - - - - - -
Microphone - - - - - -

Fans 140mm - - - - - -
120mm - - 1x Molex 1x 3Pin 3x Molex(Hotplug)
+ 1x Molex		 2x 2Pin to Molex
3x Molex
80mm 2x Molex - - - - -
60mm - 2x Molex 2x 3Pin 2x 3Pin - -
40mm - - - - - -

Mounting options Mainboard up to ATX up to ATX up to ATX (max.191mm) up to SSI CEB up to SSI CEB up to SSI CEB
Power supply ATX ATX ATX ATX ATX ATX
PCIe - - - - - -
CPU cooler < 100 mm < 113 mm < 113 mm < 113 mm < 113 mm < 105 mm
Graphics adapter < 250 mm < 300 mm < 191 mm < 270 mm < 270 mm < 350 mm
Fans 2x 60 mm - 6x 40 mm 6x 40 mm 6x 40 mm 2x 60 mm

Scope of delivery   Case Case Case Case Case Case
  Screws Screws Screws Screws Screws Screws
  - Keys Drive rails Drive rails Drive rails Rails for
for 3.5" HDDs

Warranty   24 Months 24 Months 24 Months 24 Months 24 Months 24 Months

Logistic data Net weight 6.23 kgs 9.34 kgs 8.65 kgs 9.48 kgs 10.70 kgs 11.64 kgs
Gross weight 7.82 kgs 11.12 kgs 10.42 kgs 11.75 kgs 13.07 kgs 14.18 kgs
Article number 88887332 88887176 88887106 88887107 88887108 88887385
GTIN 4260455646390 4260133128088 4260133126275 4260133126282 4260133126299 4260455648363
Packing unit 1/ 18 (Pallet) 1/ 23 (Pallet) 1/ 24 (Pallet) 1/ 18[ (Pallet) 1/ 18 (Pallet) 1/ 16 (Pallet)
    3416
Art.-No.

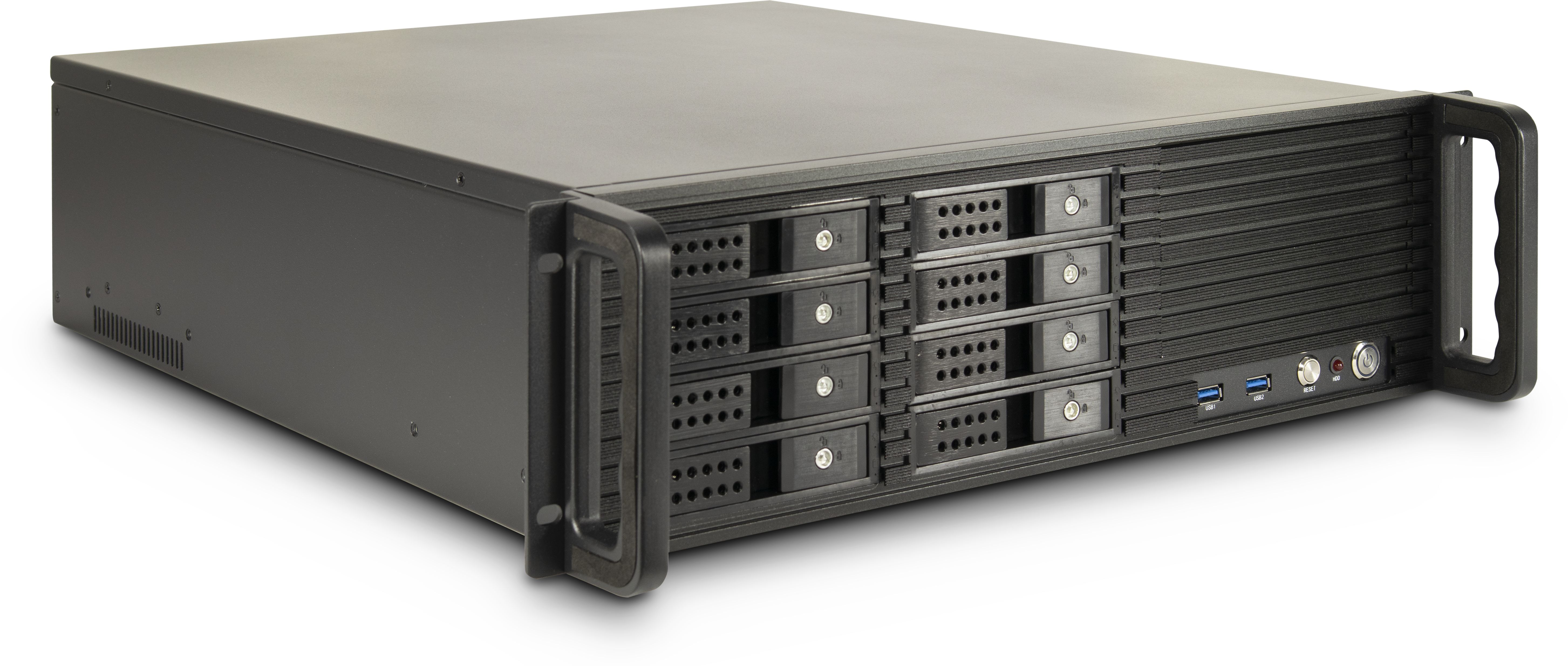

88887119		 3508
Art.-No.
88887335
Overvie as
Excel file
    Techn. Drawing Techn. Drawing
Dimension Height 3U 3U
Width 19" 19"
Depth (without handles) 650 mm 480 mm

HDD mounting space 5.25" external 1 2
3.5" external - -
2.5" or 3.5" external 16 8
3.5" internal - -
2.5" internal 3 2
2.5" or 3.5" internal - -
2x2.5" or 1x3.5" internal - -
4x2.5" or 1x3.5" internal - -

Backplane Backplane quantity 4 2
Hard disk quantity 16 8
Transfer speed 12 Gb/s 6 Gb/s
Connector hard disks SAS/ SATA SAS/ SATA
Connector controller SFF-8087 SATA
Connector power 1x Molex 2x Molex

Front connectors USB A 2x 3.2 Gen1 2x 3.2 Gen1
USB C - -
Headphone - -
Microphone - -

Fans 140mm - -
120mm 3x 4Pin to
Molex Hotplug		 -
80mm - 2x Molex
60mm 2x 3pin -
40mm - -


Mounting options



 Mainboard up to SSI EEB up to ATX
Power supply 2HU/3HU ATX
PCIe 7 7
CPU cooler < 113 mm < 100 mm
Graphics adapter < 345 mm < 244 mm
Fans - 2x 60 mm

Scope of delivery   Case Case
  Screws Screws
  Mounting for
power supplies		 -

Warranty   24 Months 24 Months

Logistic data Net weight 13.40 kgs 9.51 kgs
Gross weight 15.55 kgs 12.47 kgs
Article number 88887119 88887335
GTIN 4260133126404 4260455646420
Packing unit 1/ 18 (Pallet) 1/ 15 (Pallet)

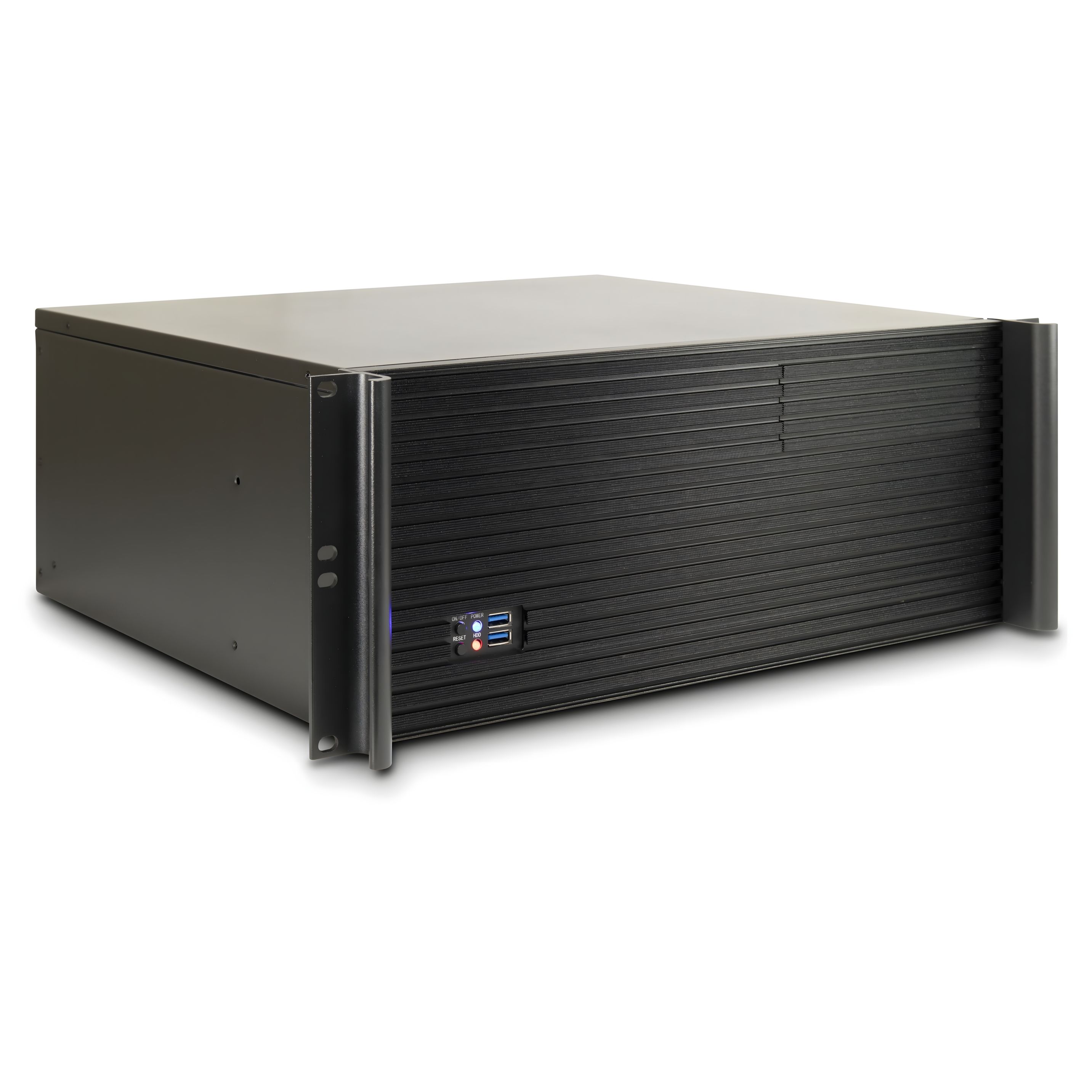

    K-439L
Art.-No.

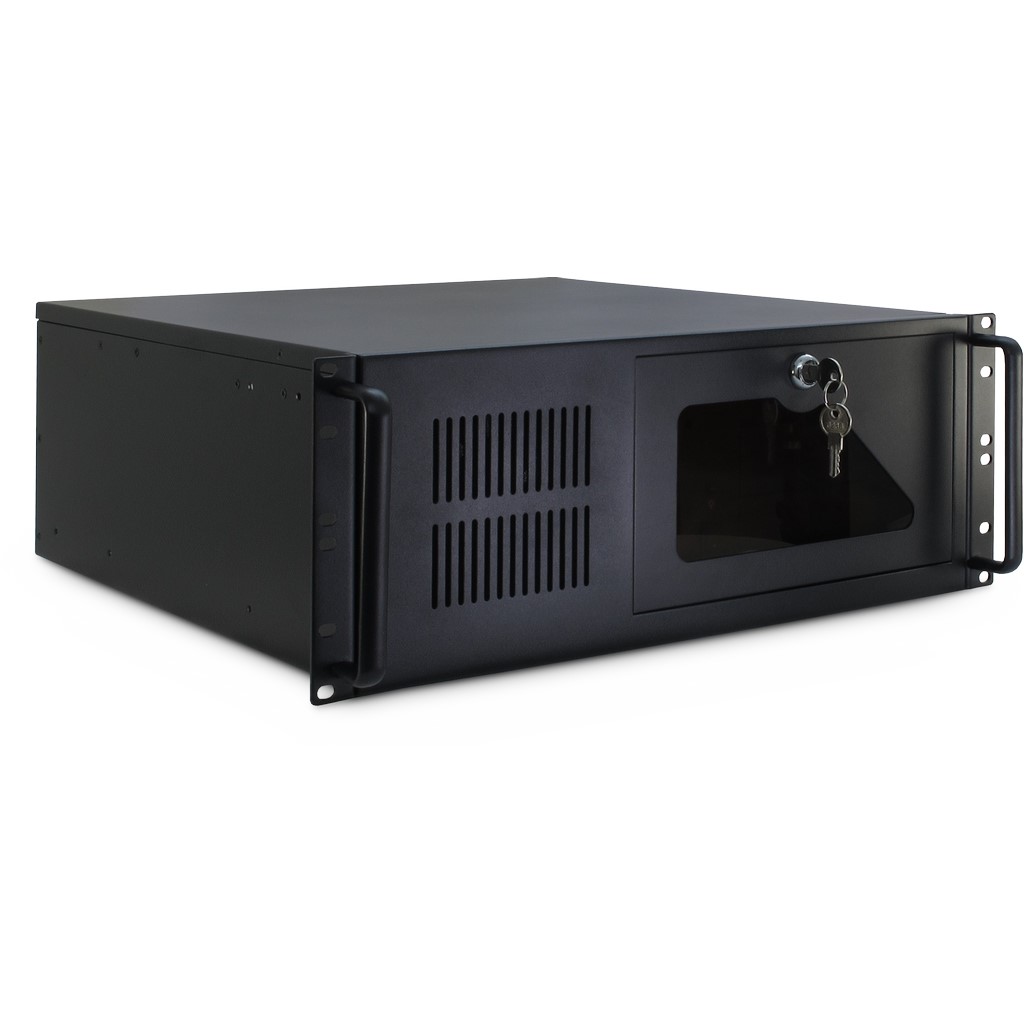

88887333		 4088-S
Art.-No.

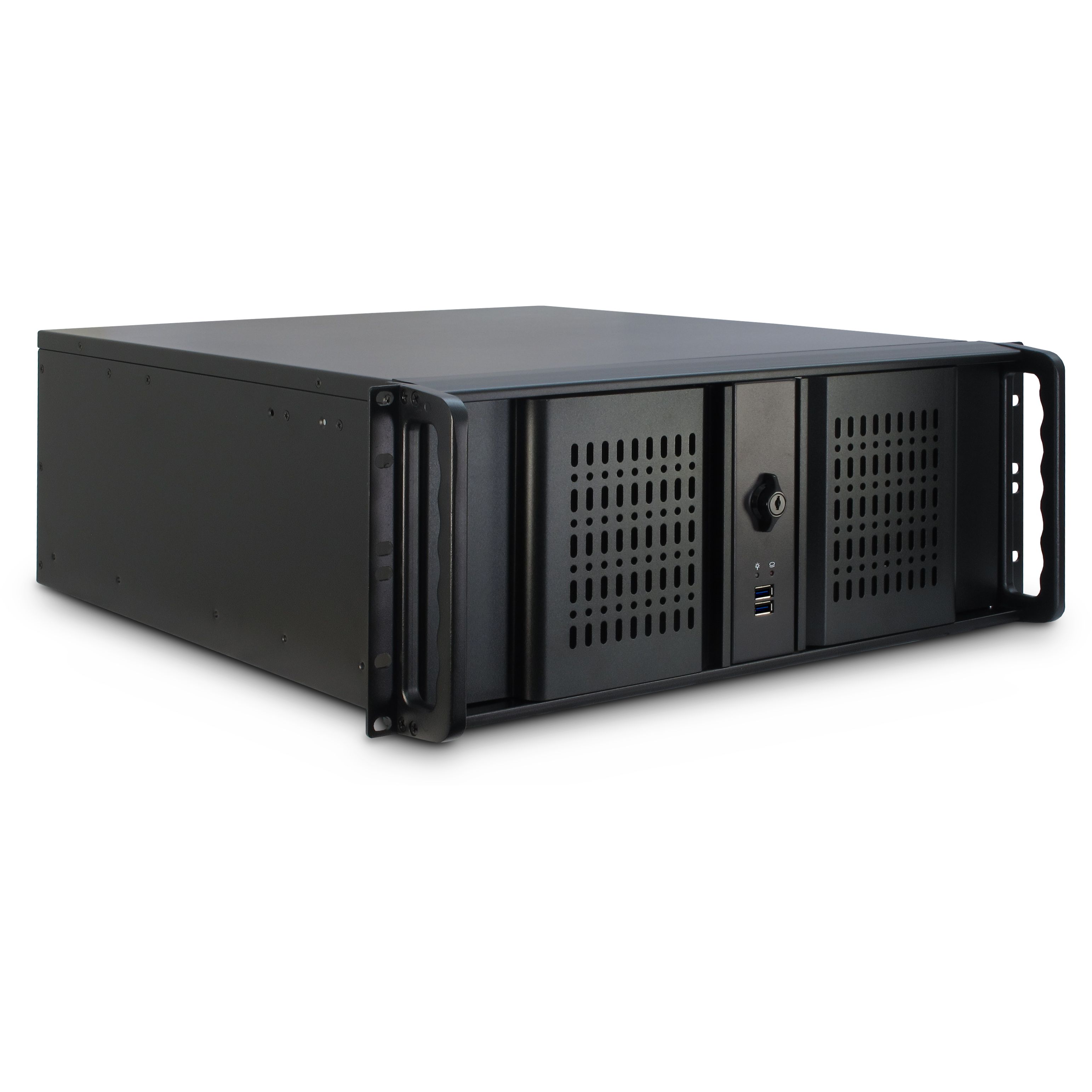

88887178		 4098-S
Art.-No.
88887177		 4129L
Art.-No.

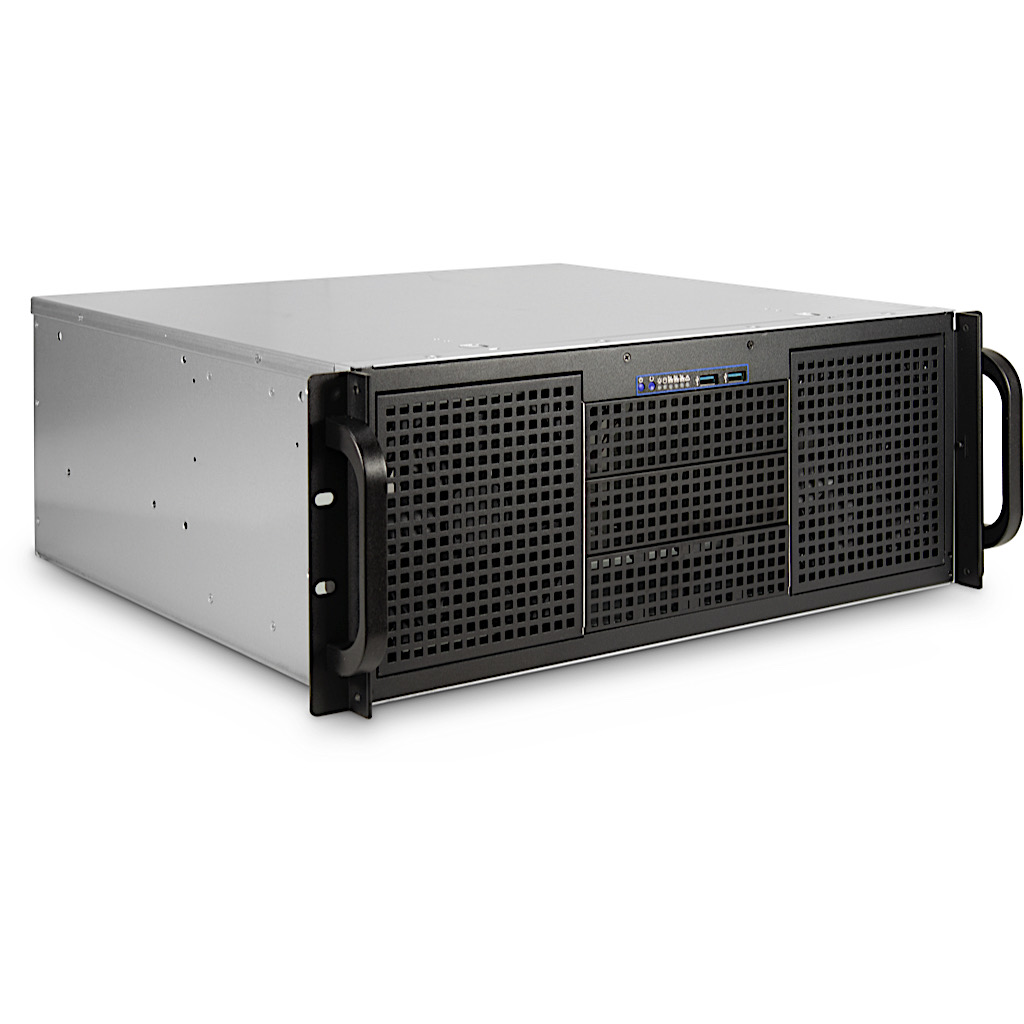

88887007		 40240
Art.-No.

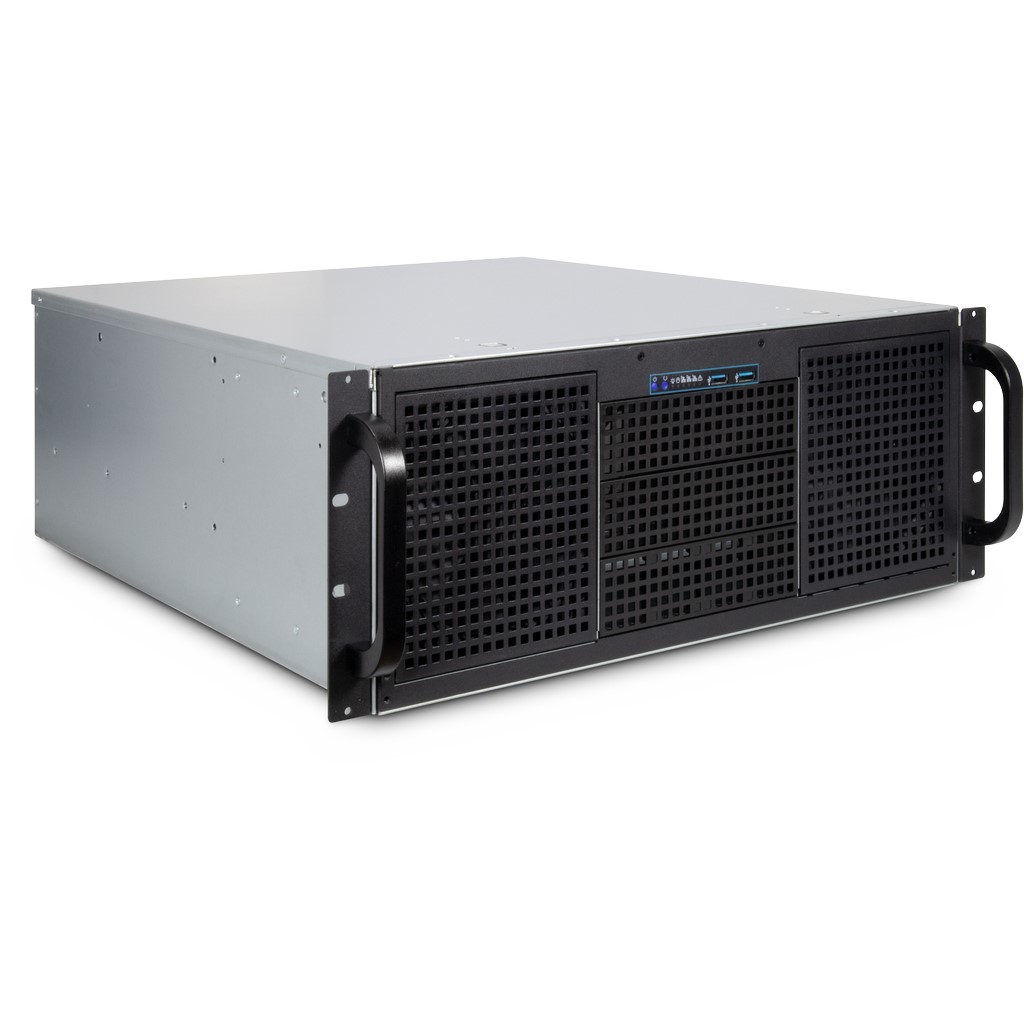

88887305		 40248
Art.-No.

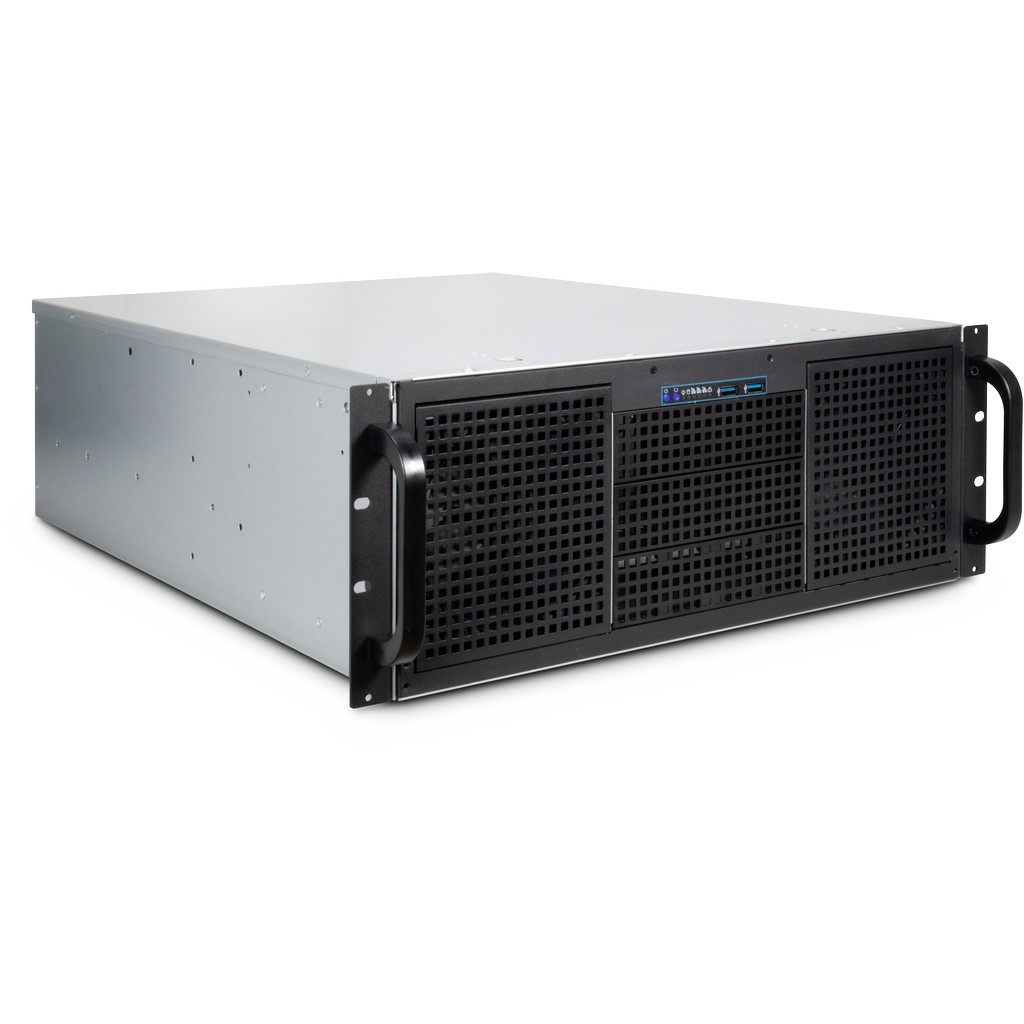

88887303		 40255
Art.-Nr.

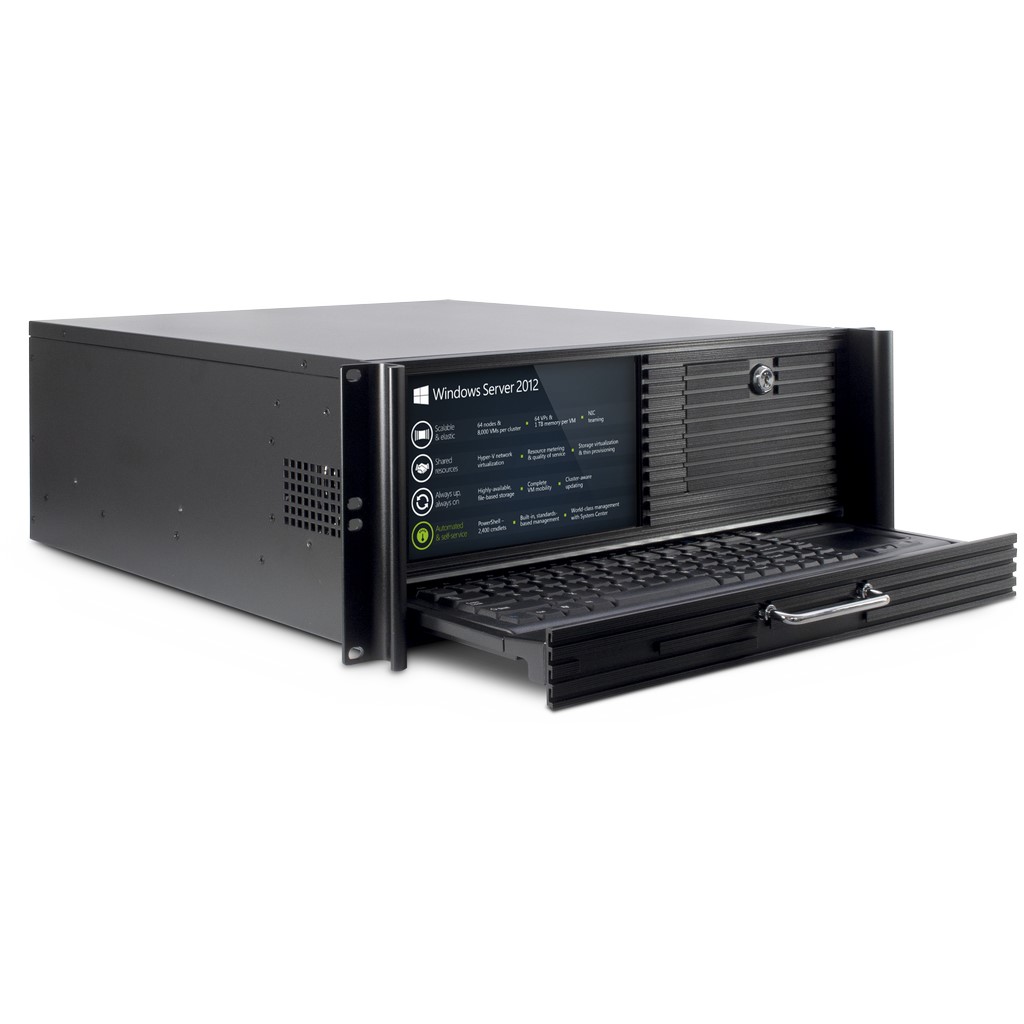

88887304		 4452-TFT Qwerty
Art.-Nr.

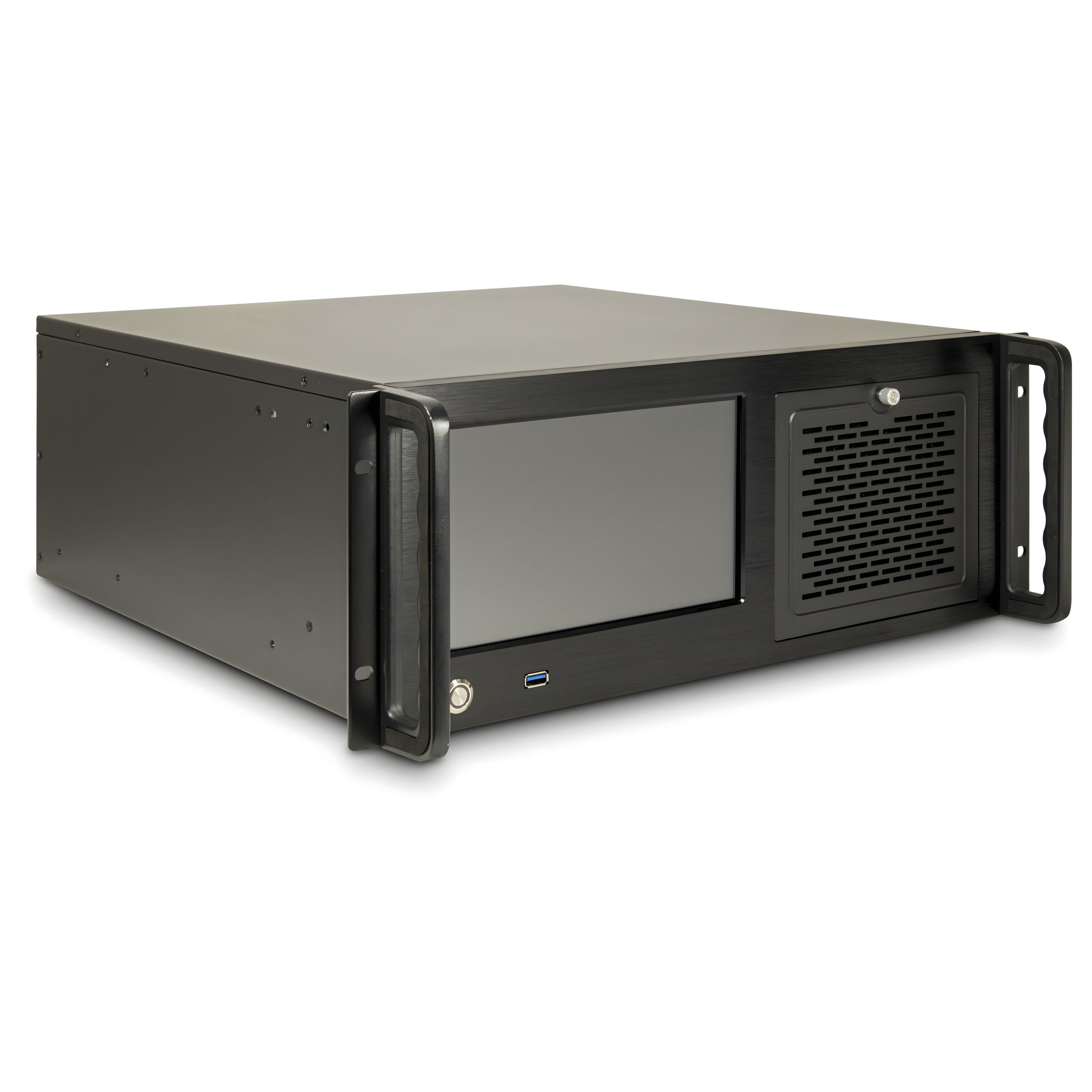

88887287		 K-4460, TFT
Art.-Nr.
88887317
Overview as
Excel file
    Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drwaing Techn. Drawing Techn. Drawing Techn. Drawing
Dimension Height 4U 4U 4U 4U 4U 4U 4U 4U 4U
Width 19" 19" 19" 19" 19" 19" 19" 19" 19"
Depth (without handles) 390 mm 450 mm 465 mm 650 mm 400 mm 480 mm 550 mm 520 mm 450 mm

HDD mounting space

 5.25" external 1 3x 6 3 9 (6x in 2x HDD cage) 9 (6x in 2x HDD cage) 9 (6x in 2x HDD cage) 1 Slim DVD -
3.5" external - 1 - - - - - - -
2.5" or 3.5" external - - - - - - - 2 -
3.5" internal 2 8 5 (3x instead of
2x 5,25")		 10 10 in 2x HDD cage 10 in 2x HDD cage 10 in 2x HDD cage 1 2
2.5" internal - 7 8 max height 7m - - - - 2 4 max height 7mm
2.5" or 3.5" internal 1 - - - - - - - 1
2x2.5" or 1x3.5" internal - - - - - - - - -
4x2.5" or 1x3.5" internal - - - - 1 in 1x 5,25" frame 1 in 1x 5,25" frame 1 in 1x 5,25" frame - -

Backplane Backplane quantity - - - - - - - 1 -
Hard disk quantity - - - - - - - 2 -
Transfer speed - - - - - - - 6G -
Connector hard disks - - - - - - - SATA/ SAS -
Connector controller - - - - - - - SATA -
Connector power - - - - - - - Molex -

Front connectors USB A 2x 3.2 Gen1 2x 3.2 Gen1 2 x 2.0 1x 3.2 Gen1
1x 2.0		 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1 2 x 2.0 1 x 3.2 Gen1
USB C - - - - - - - - -
Headphone - - - - - - - - -
Microphone - - - - - - - - -

Fans 140mm - - - - - - - - -
120mm - 1x Molex - 5x Molex 2x Molex 2x Molex 2x Molex - 1x Molex
80mm 2x Molex - 2x Molex 2x Molex 2x3Pin 2x 3Pin 2x3Pin 2x Molex -
60mm - - - - - - - - -
40mm - - - - - - - - -

Mounting options Mainboard up to E-ATX up to ATX up to ATX up to SSI EEB up to ATX up to SSI CEB up to SSI EEB, E-ATX up to ATX up to E-ATX
Power supply ATX or
PS2/Mini-red.		 ATX or
PS2/Mini-red.		 ATX or
PS2/Mini-red.		 ATX or
PS2/Mini-red.		 ATX ATX, PS2/Mini-
red., 3U/2U red.
or 2U 		ATX, PS2/Mini-
red., 3U/2U red.
or 2U		 ATX ATX or
PS2/Mini-red.
PCIe - - - - - - - - -
CPU cooler < 150 mm < 130 mm < 130 mm < 145 mm < 150 mm < 150 mm < 150 mm < 145 mm < 125 mm
Graphics adapter < 330 mm < 275 mm < 290 mm < 330 mm < 208 mm < 267 mm < 330 mm < 280 mm < 390 mm
Fans 2x 80 mm 2x 80 mm - - 6x 40 mm 6x 40 mm 6x 40 mm 2x 60 mm 2x 80 mm

Scope of delivery   Case Case Case Case Case Case Case Case Case
  Screws Screws Screws Screws Screws Screws Screws Screws Screws
  4 stands Keys Keys Keys 3,5" drive rails 3,5" drive rails 3,5" drive rails Keys VGA cable
  -

Mounting frame
5,25" to 3,5",
external

Mounting frame
5,25" to 3,5",
external

 Drive rails for HDD -

Mounting frame
for red. PSU

 Mounting frame
for red. PSU		 VGA cable -

Warranty   24 Months 24 Months 24 Months 24 Months 24 Months 24 Months 24 Months 24 Months 24 Months

Logistic data Net weight 8.81 kgs 10.00 kgs 11.36 kgs 13.22 kgs 9.79 kgs 10.69 kgs 11.46 kgs 12.97 kgs 8.90 kgs
Gross weight 7.16 kgs 12.10 kgs 15.25 kgs 15.06 kgs 11.96 kgs 12.82 kgs 13.71 kgs 16.02 kgs 11.66 kgs
Article number 88887333 88887178 88887177 88887007 88887305 88887303 88887304 88887287 88887317
GTIN 4260455646406 4260133128101 4260133128095 4260133122611 4260455645942 4260455645928 4260455645935 4260455644884 4260455646093
Packing unit 1/ 18 (Pallet) 1/ 20 (Pallet) 1/ 12 (Pallet) 1/ 14 (Pallet) 1/ 21 (Pallet) 1/ 15 (Pallet) 1/ 15 (Pallet) 1/ 12 (Pallet) 1/ 12 (Pallet)

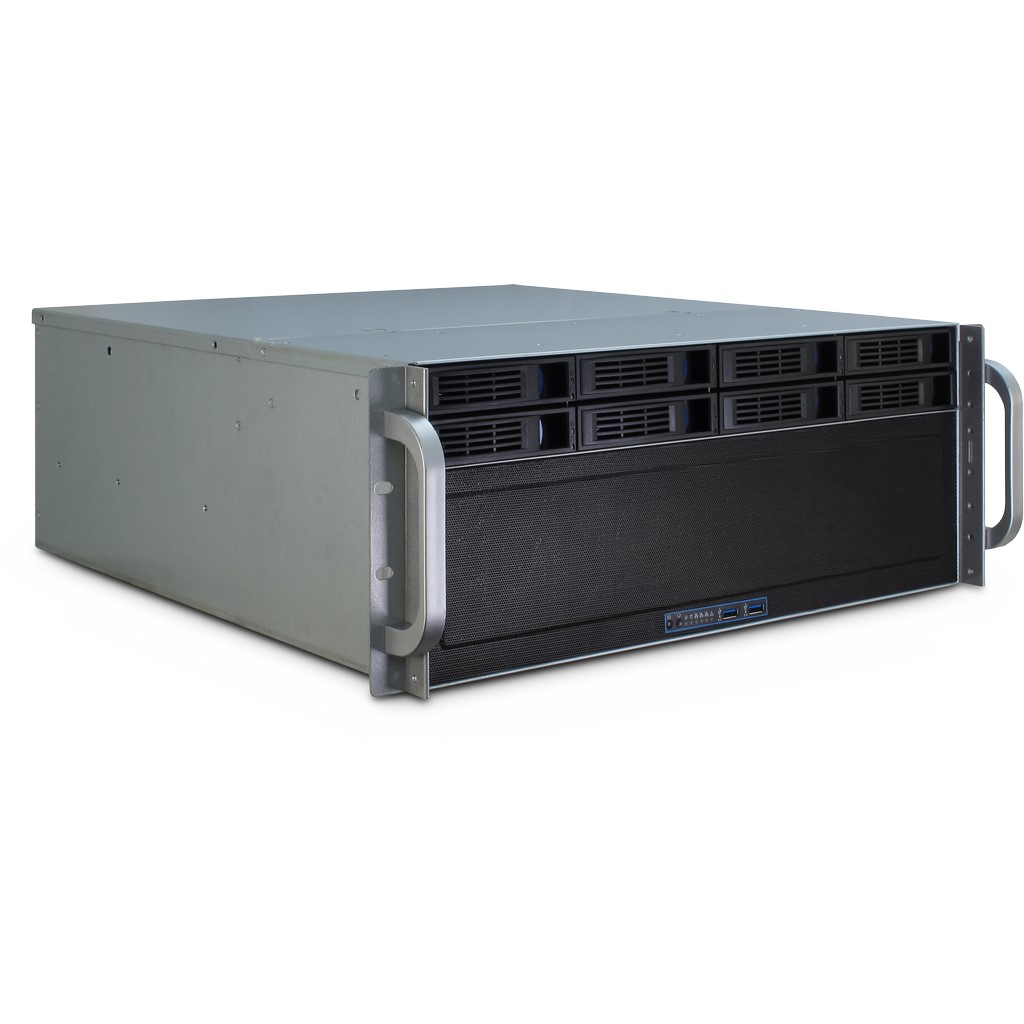

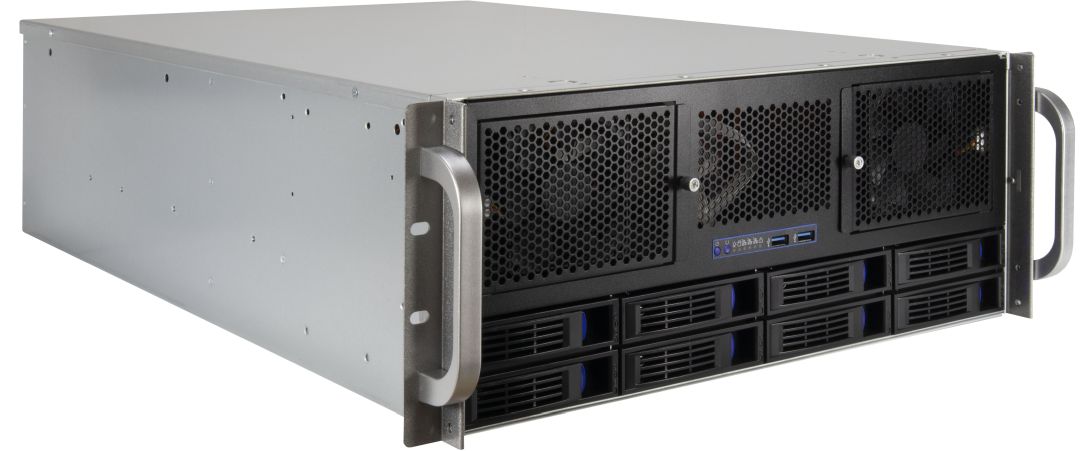

    4408
Art.-No.

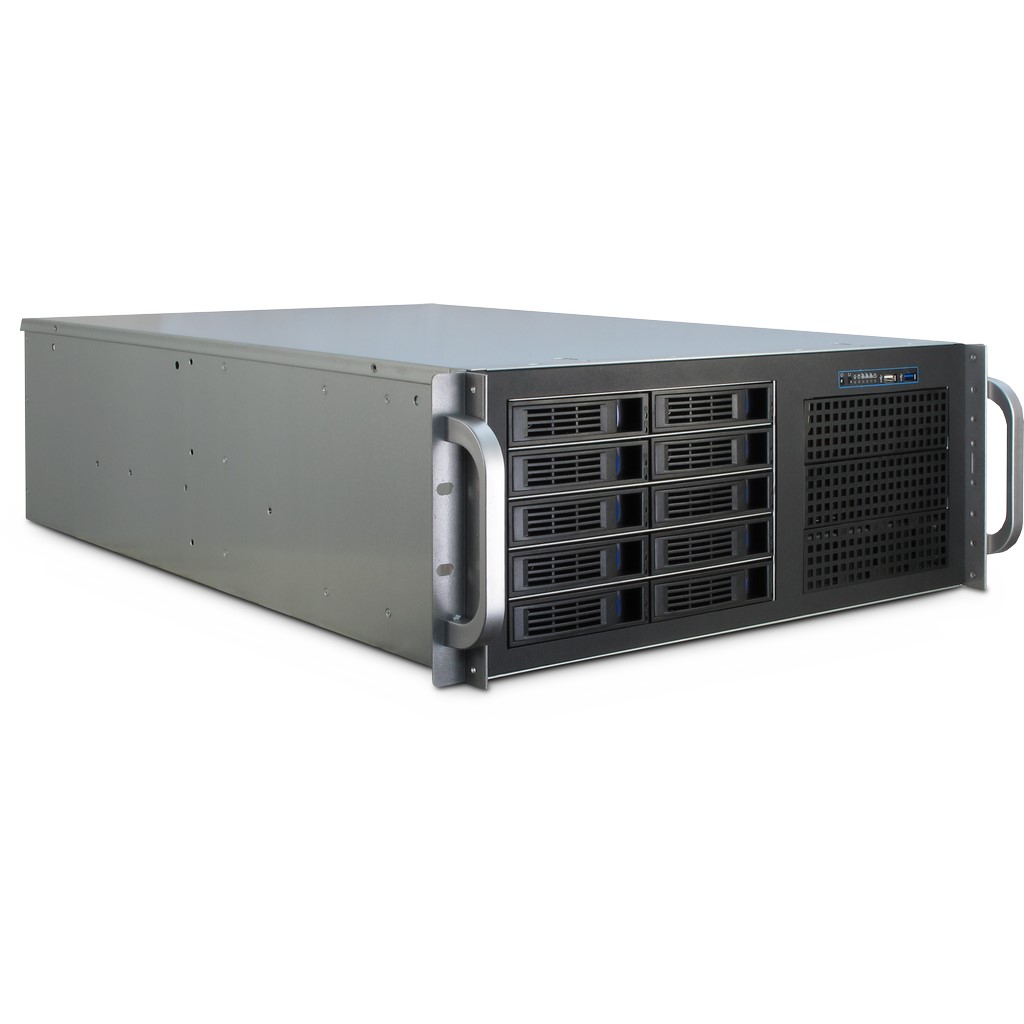

88887191		 4410
Art.-No.

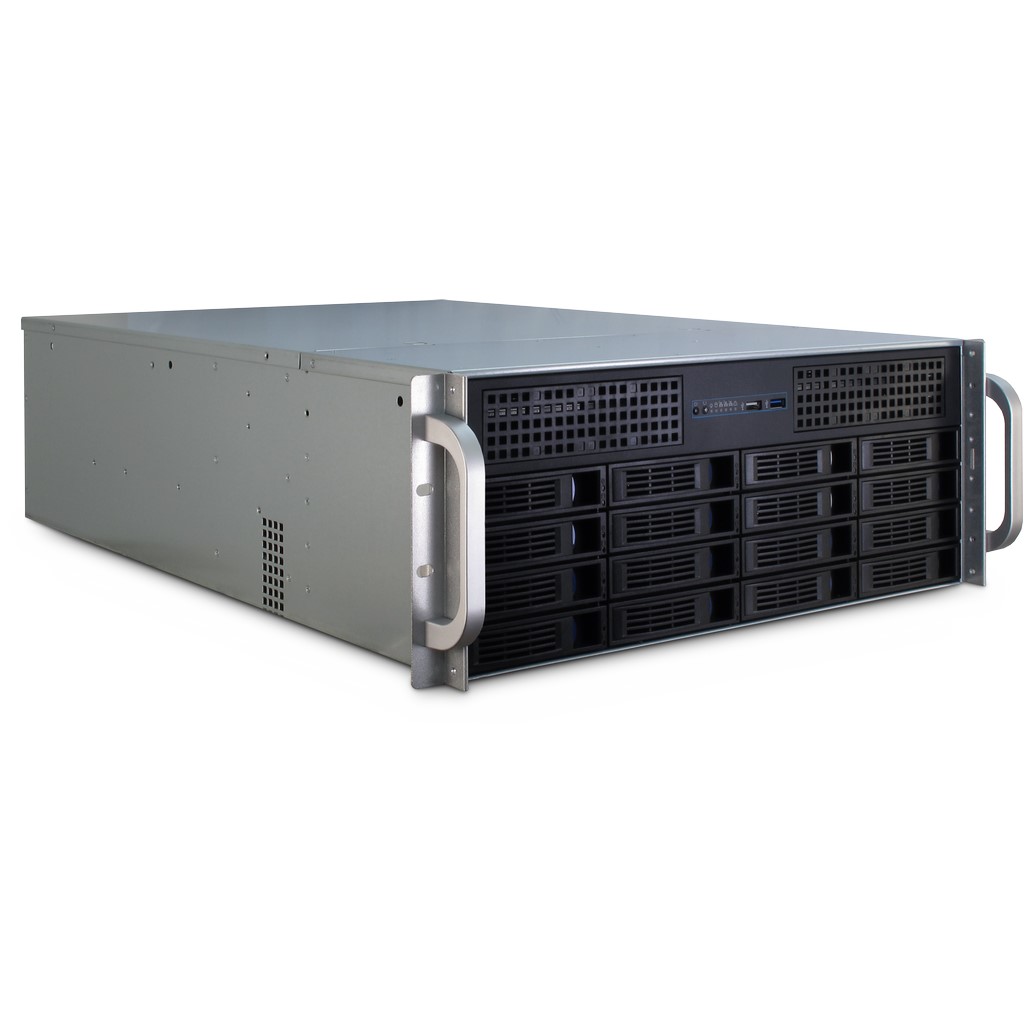

88887203		 4416
Art.-No.

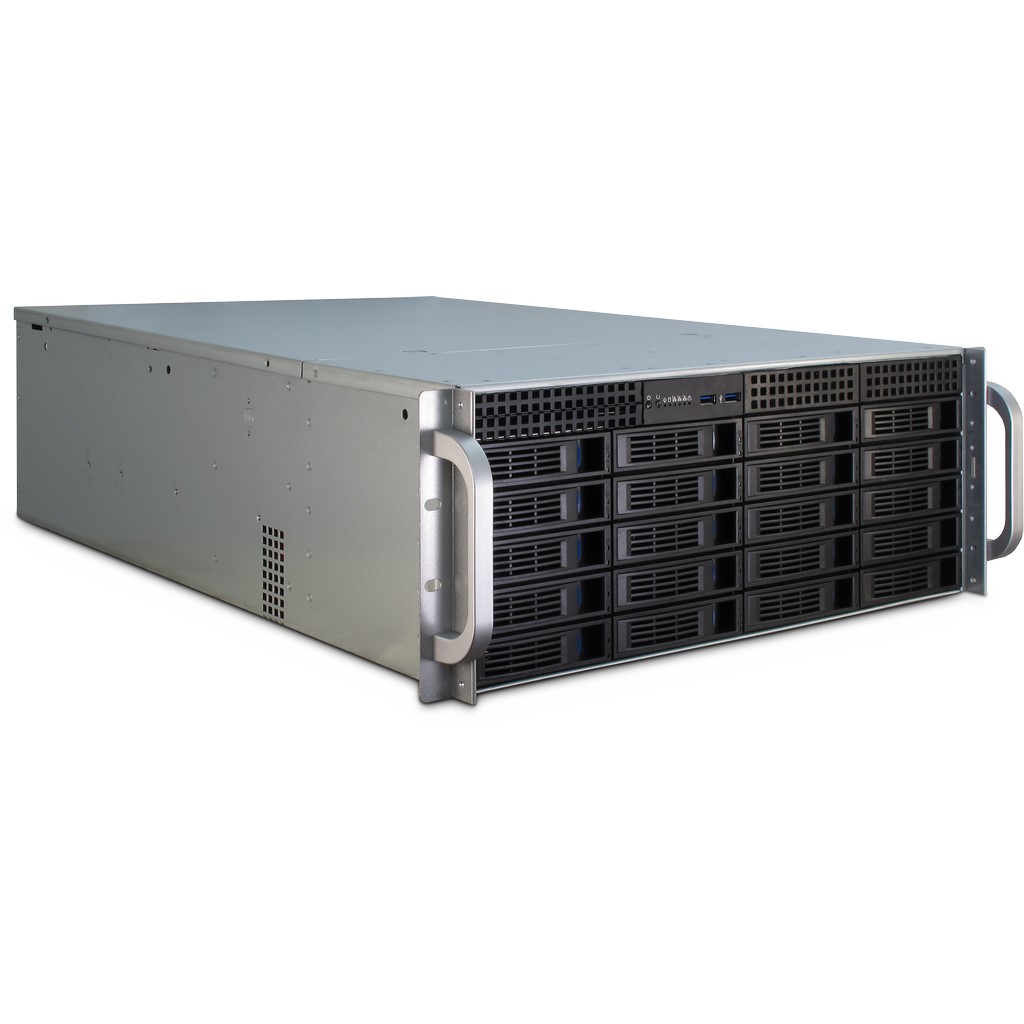

88887120		 4420
Art.-No.

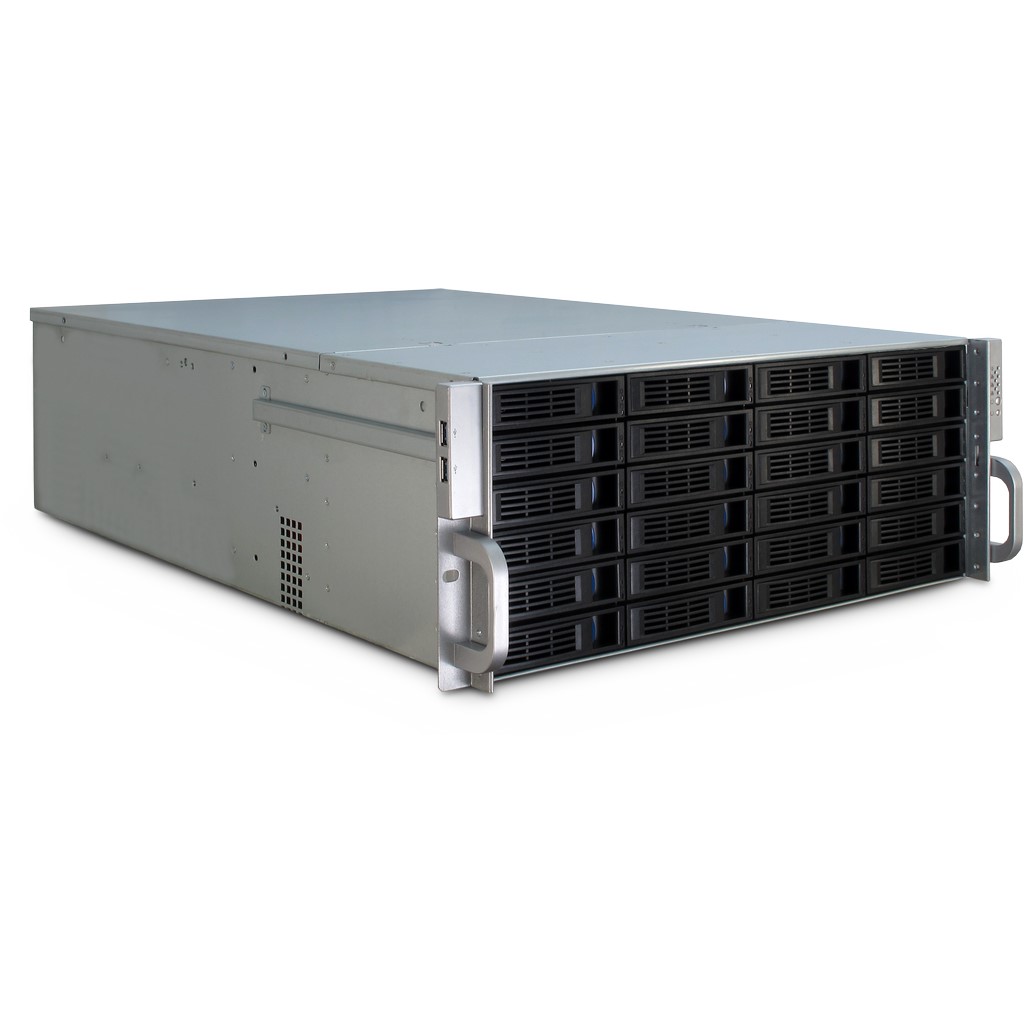

88887121		 4424
Art.-No.

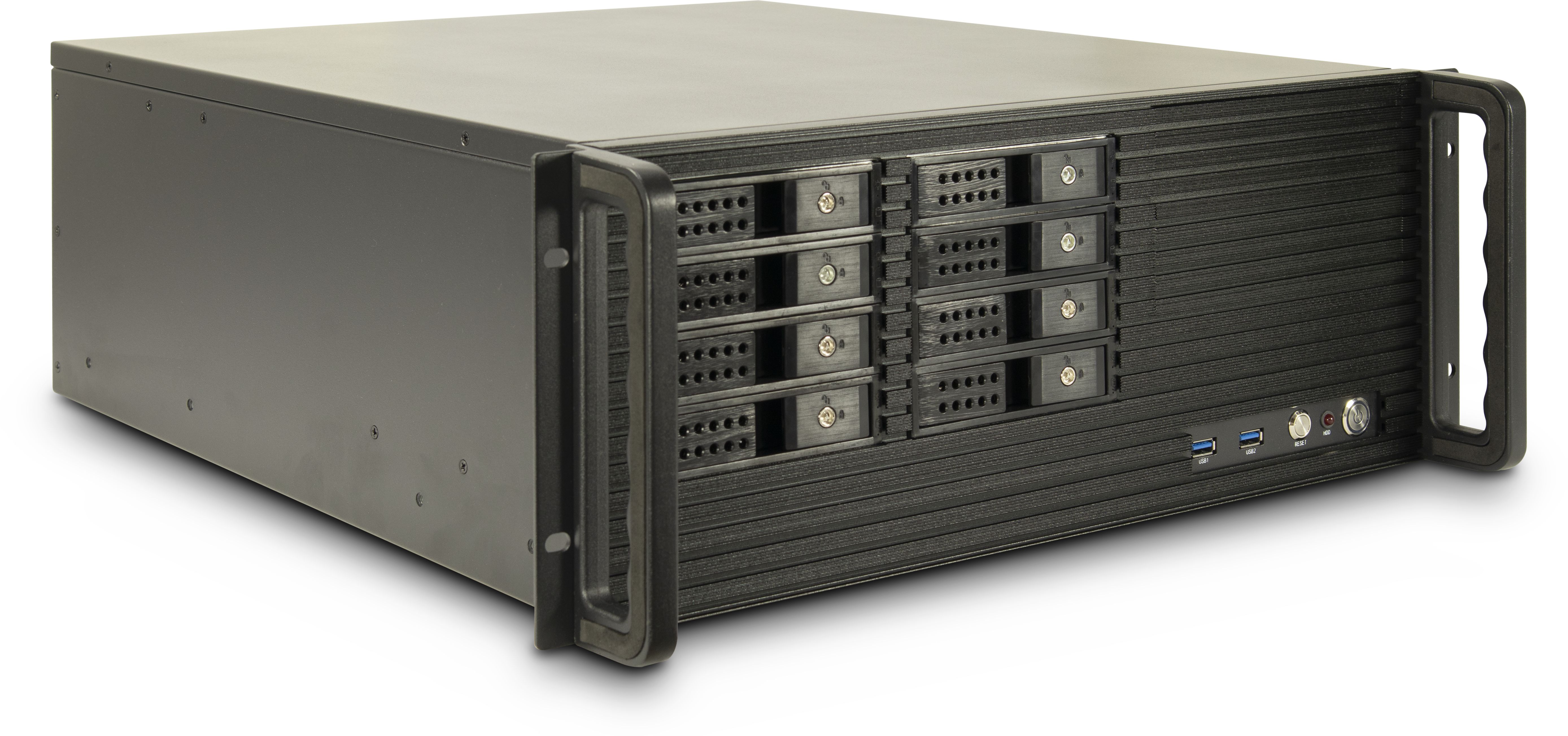

88887122		 4508
Art.-No.

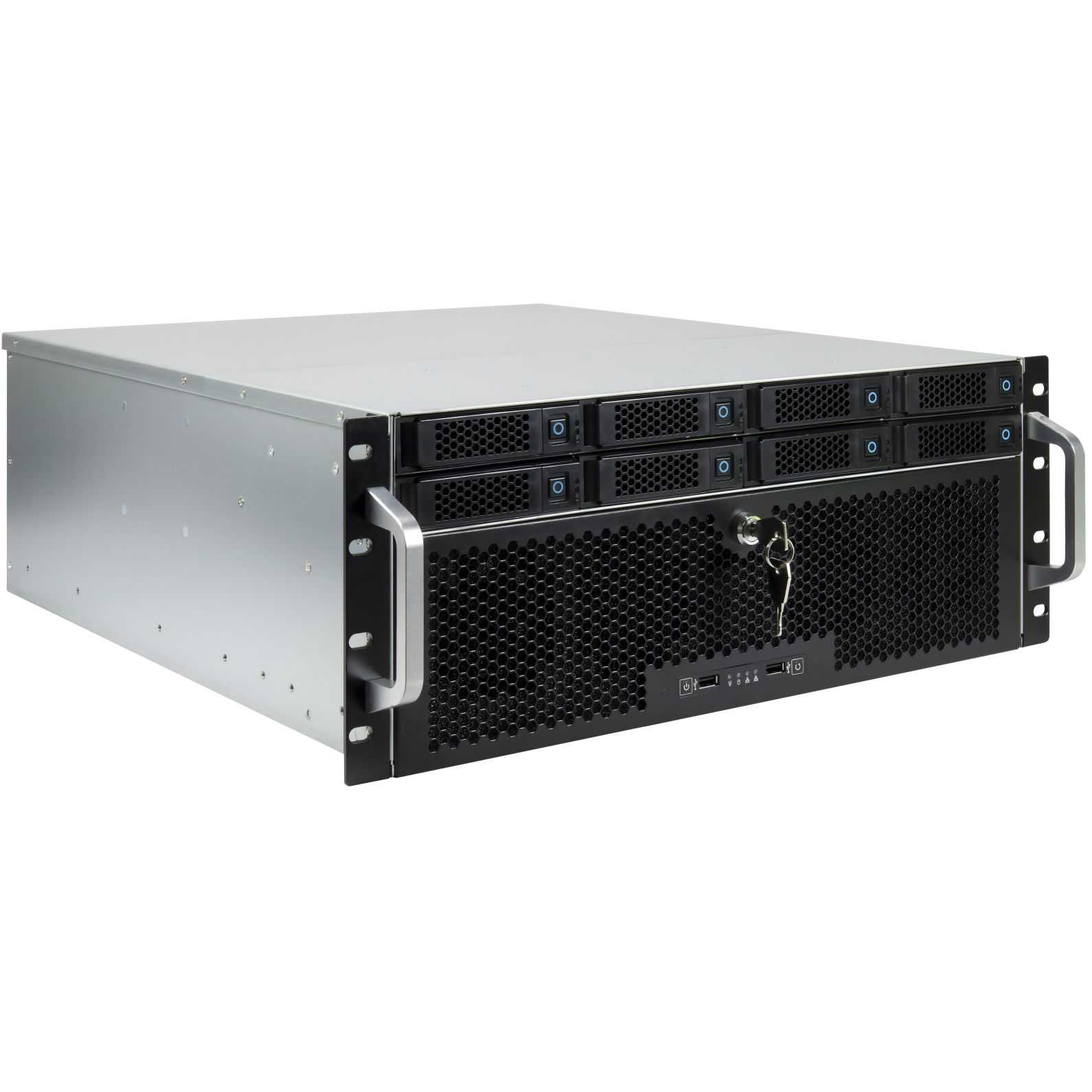

88887336		 4708
Art.-No.

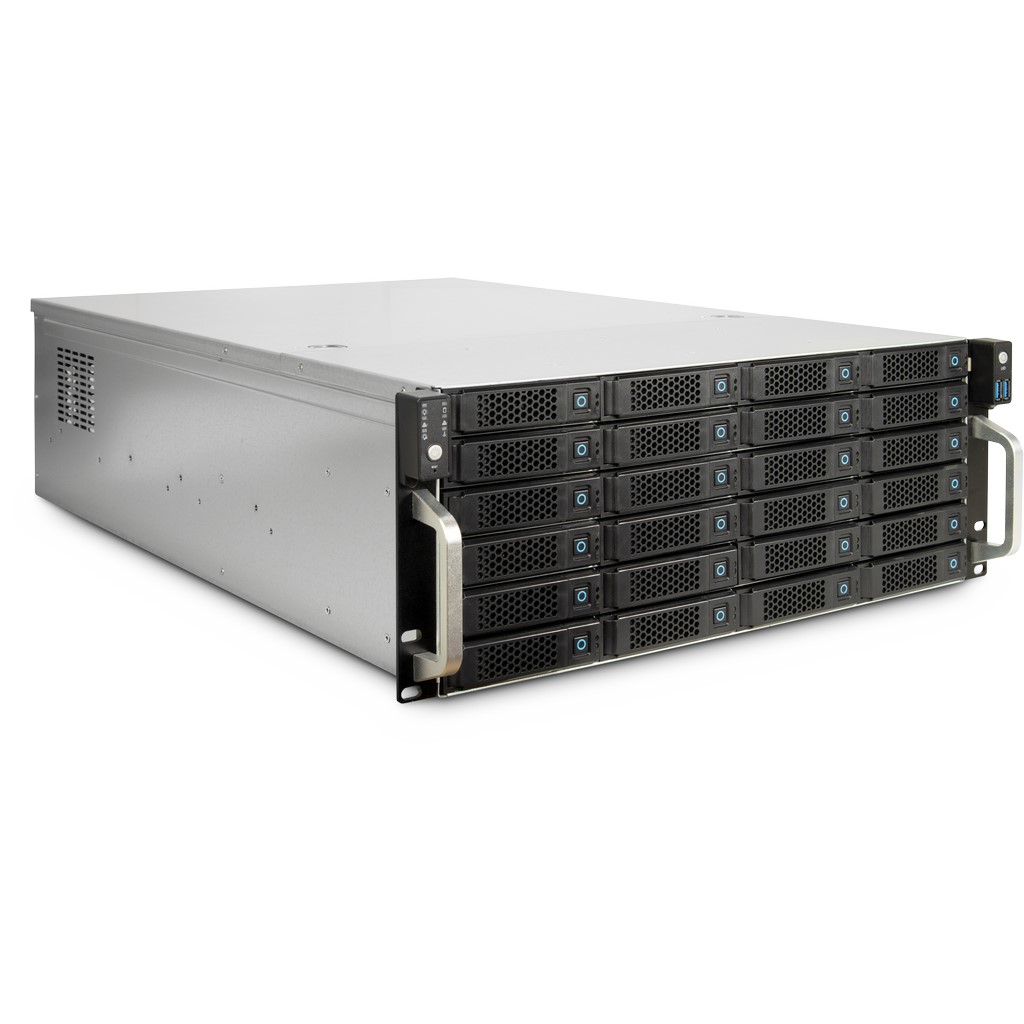

88887384		 4724
Art.-No.
88887354		 4736
Art.-No.
88887355
Overview as
Excel file








    Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing Techn. Drawing
Dimension Height 4U 4U 4U 4U 4U 4U 4U 4U 4U
Width 19" 19" 19" 19" 19" 19" 19" 19" 19"
Depth (without handles) 480 mm 650mm 650mm 650mm 650mm 480 mm 480 mm 650 mm 650 mm

HDD mounting space

 5.25" external - 3 2 1 (slim) - 2 - - -
3.5" external - - - - - - - - -
2.5" or 3.5" external 8 10 16 20 24 8 8 24 36
3.5" internal - 1 2 2 1 - - - -
2.5" internal - 4 8 3 2 2 1 2 2
2.5" or 3.5" internal 1 - - - - - - - -
2x2.5" or 1x3.5" internal - - - - - - - - -
4x2.5" or 1x3.5" internal - 1 in 1x 5,25" frame - - - - - - -

Backplane Backplane quantity 2 5 4 5 6 2 1 2 3
Hard disk quantity 8 10 16 20 24 8 8 24 36
Transfer speed 12 Gb/s 12 Gb/s 12 Gb/s 12 Gb/s 12 Gb/s 6Gb/s 12Gb/s 6Gb/s 6Gb/s
Connector hard disks SAS/ SATA SAS/ SATA SAS/ SATA SAS/ SATA SAS/ SATA S-ATA/SAS S-ATA/SAS S-ATA/SAS S-ATA/SAS
Connector controller SFF-8643 SATA SFF-8643 SFF-8087 SFF-8087 SATA SFF 8643 SFF-8087 SFF-8087
Connector power 1x Molex 1x Molex 1x Molex 1x Molex 1x Molex 2x Molex 2x Molex 3x Molex 3x Molex

Front connectors USB A 2x 3.2 Gen1 1x 3.2 Gen1
1x 2.0		 1x 3.2 Gen1
1x 2.0		 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1 2x 2.0 2x 2.0 2x 2.0
USB C - - - - - - - - -
Headphone - - - - - - - - -
Microphone - - - - - - - - -

Fans 140mm - - - - - - - - -
120mm - 3x Molex Hotswap 3x Molex Hotswap 3x Molex Hotswap 3x Molex Hotswap -   3x 3 Pin -
80mm 2x 3 Pin 2x Molex 2x Molex 2x 3 Pin 2x 3 Pin 2x Molex 4x 4Pin Hotswap 2x Molex 7x 4Pin
60mm - - - - - - - - -
40mm - - - - - - - - -

Mounting options Mainboard up to SSI EEB up to SSI EEB up to SSI EEB up to SSI EEB up to SSI EEB up to SSI EEB up to SSI EEB up to SSI EEB up to SSI EEB
Power supply ATX, PS2/Mini-red.,
3U/2U red. or 2U		 ATX, PS2/Mini-red.,
3U/2U red. or 2U		 ATX, PS2/Mini-red.,
3U/2U red. or 2U		 ATX, PS2/Mini-red.,
3U/2U red. or 2U		 ATX, PS2/Mini-red.,
3U/2U red. or 2U

ATX or
PS2/Mini-red.

 ATX or
PS2/Mini-red.		 ATX or
PS2/Mini-red.		 2U or 2U red.
PCIe - - - - - - - - -
CPU cooler < 80 / 155 mm < 155 mm < 155 mm < 155 mm < 155 mm < 155 mm < 150 mm < 155 mm < 60 mm
Grafikkarte < 190 mm < 345 mm < 345 mm < 345 mm < 345 mm < 250 mm < 265 mm < 340 mm < 340 mm
Fans - 2x 40 mm 2x 40 mm - - 2x 80mm 2x 80mm - -

Scope of delivery   Case Case Case Case Case Case Case Case Case
  Screws Screws Screws Screws Screws Screws Screws Screws Screws
  Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies
  - 4x drive rails - - - - - - -

Warranty   24 Months 24 Months 24 Months 24 Months 24 Months 24 Months 24 Months 24 Months 24 Months

Logistic data Net weight 9.06 kgs 14.85 kgs 15.14 kgs 15.10 kgs 15.30 kgs 11.3 kgs 9.64 kgs 15.58 kgs 18.43 kgs
Gross weight 11.32 kgs 17.34 kgs 17.73 kgs 18.00 kgs 18.20 kgs 14.57 kgs 11.72 kgs 18.22 kgs 21.07 kgs
Article number 88887191 88887203 88887120 88887121 88887122 88887336 88887384 88887354 88887355
GTIN 4260133128620 4260133129634 4260133126411 4260133126428 4260133126435 4260455646437 4260455648356 4260455647250 4260455647267
Packing unit 1/ 15 (Pallet) 1/ 12 (Pallet) 1/ 14 (Pallet) 1/ 12 (Pallet) 1/ 12 (Pallet) 1/ 12 (Pallet) 1/ 15 (Pallet) 1/ 14(Pallet) 1/ 14 (Pallet)
    5512
Art.-Nr.

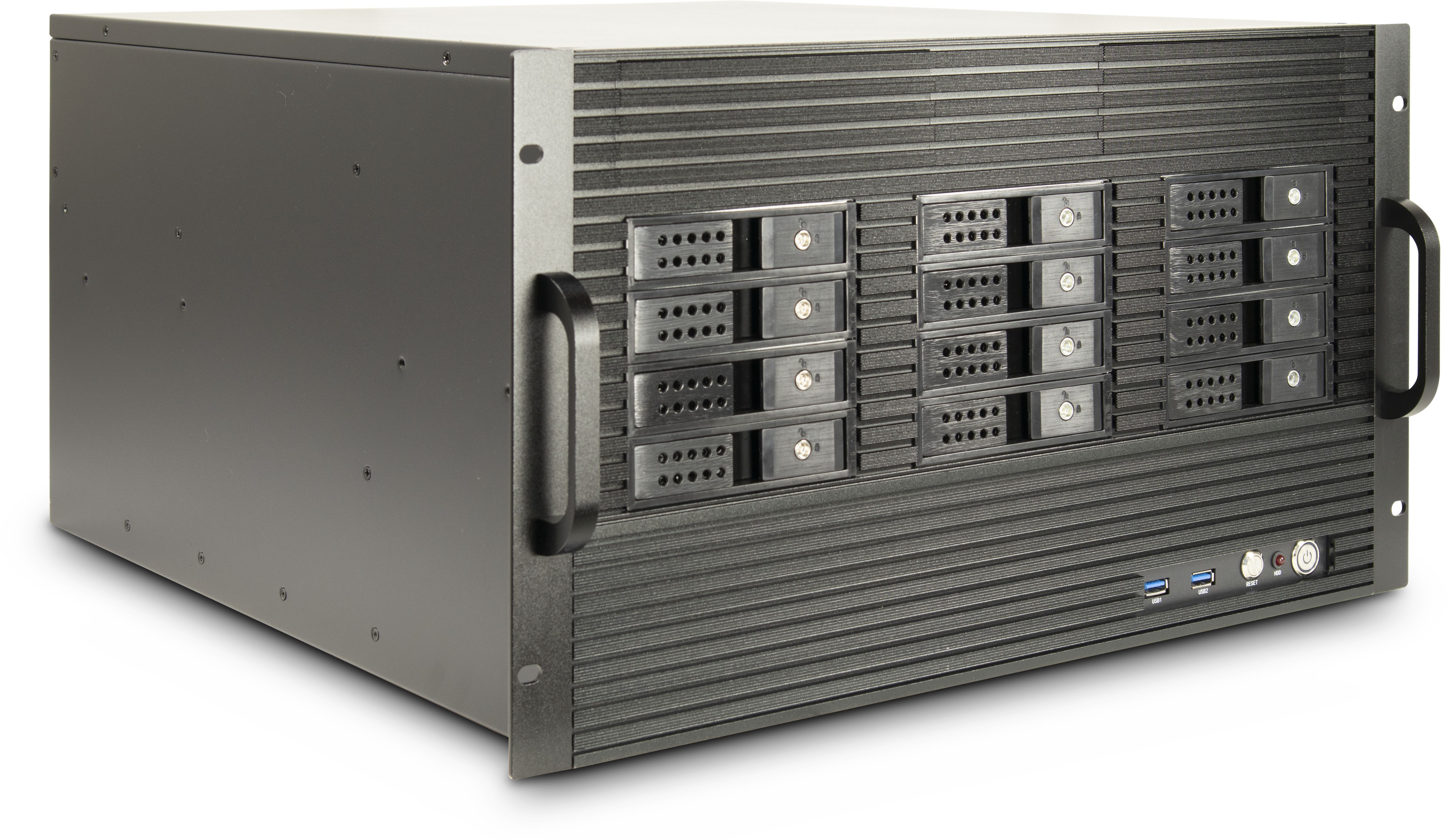

88887337		 6520
Art.-Nr.
88887338		 6606
Art.-Nr.
88887339


Overview as
Excel file





    Techn. Drawing Techn. Drawing Techn. Drawing
Dimension Height 19" 19" 19"
Width 5U 6U 6U
Depth (without handles) 480 mm 480 mm 551 mm

HDD mounting space 5.25" external 2 2 1
3.5" external - - -
2.5" or 3.5" external 12 20 6
3.5" internal - - 9
2.5" internal 5 2 7
2.5" or 3.5" internal - - -
2x2.5" or 1x3.5" internal - - -
4x2.5" or 1x3.5" internal - - -

Backplane Backplane quantity 3 6 2
Hard disk quantity 12 20 6
Transfer speed 6Gb/s 6Gb/s 6Gb/s
Connector hard disks SATA/SAS SATA/SAS SATA/SAS
Connector controller SATA SATA SATA
Connector power 2x Molex 2x Molex 2x Molex

Front connectors USB A 2x 3.2 Gen1 2x 3.2 Gen1 2x 3.2 Gen1
USB C - - -
Headphone - - -
Microphone - - -

Fans 140mm - - -
120mm - - 3x Molex
80mm 3x Molex 6x Molex -
60mm - 1x Molex -
40mm - - -

Mounting options Mainboard up to SSI EEB up to SSI EEB up to E-ATX
Power supply ATX
or PS2/Mini-red.		 ATX
or PS2/Mini-red.		 ATX
or PS2/Mini-red.
PCIe 7x 7x Low Profile 7x Low Profile
CPU cooler < 105 mm < 105 mm < 135 mm
Graphics adapter < 250 mm < 250 mm < 330 mm
Fans 2x 80 mm 2x 80 mm 2x 80 mm

Scope of delivery   Case Case Case
  Screws Screws Screws
  Mounting frame
for power supplies		 Mounting frame
for power supplies		 Mounting frame
for power supplies

Warranty   24 Months 24 Months 24 Months

Logistic data Net weight 13.66 kgs 18.93 kgs 20.14 kgs
Gross weight 17.08 kgs 22.44 kgs 23.76 kgs
Article number 88887337 88887338 88887339
GTIN 4260455646444 4260455646451 4260455646468
Packing unit 1/ 9  (Pallet) 1/ 10  (Pallet) 1/ 10  (Pallet)

Comming soon

Kontakt

  • You can reach us:

    Mon. - Thurs. 8:30 a.m. - 5:30 p.m.

    Fri. 8:30 a.m. - 3:00 p.m.

    Email: vertrieb@servertek.de

    Privacy Policy

    Legal Notice

Copyright 2025. All Rights Reserved SERVERTEK.
Settings saved
Privacy settings

On our website we use cookies. You can choose whether only the cookies that are necessary for the proper operation of the website should be used or whether you want to accept additional cookies. You can either do this as a lump sum via "Accept all" or for each service individually. You can revoke or change your consent at any time via data protection settings in the Services/Data protection menu for the future. By selecting "Accept all", you agree to the transfer of your data to countries that do not have a level of data protection comparable to the EU standard. This means that authorities may have access to your data and you may not have any legal redress.

Privacy Policy Legal notice
Search
You are using an outdated browser. The website may not be displayed correctly. Close
