4U-465M2

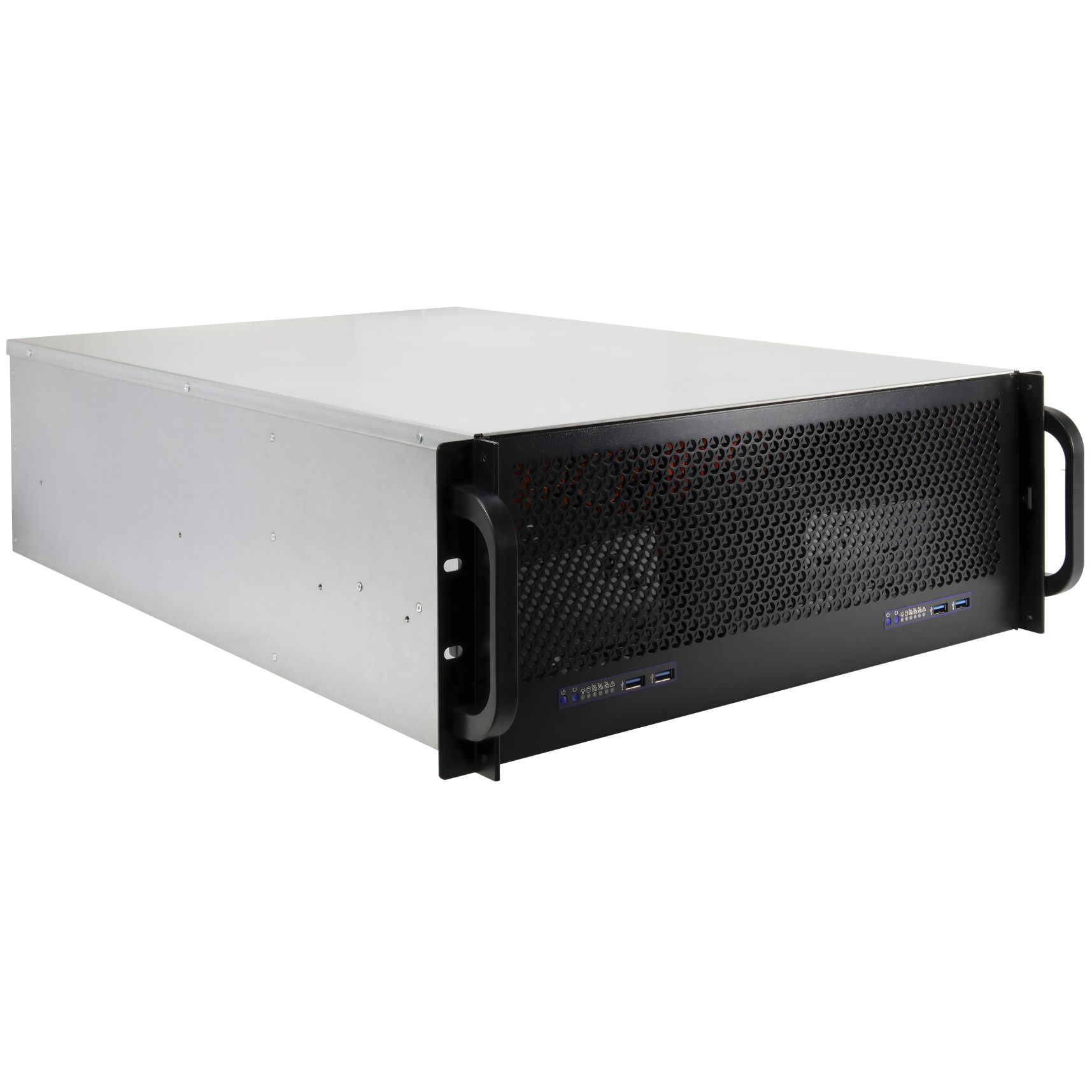

The 4U server case 4U-465M2 has been specially developed for high-performance and flexible server solutions and is ideal for professional IT environments, virtualisation systems or storage applications.
Thanks to its well-thought-out design, it enables multiple systems to be operated in parallel within a single case.
A key feature is the support for installing two Mini-ITX motherboards, making the case ideal for redundant systems, cluster solutions or energy-efficient dual-server setups. Each motherboard has its own front-panel connection, each featuring two USB 3.2 Gen1 ports, enabling convenient operation and fast data transfer.

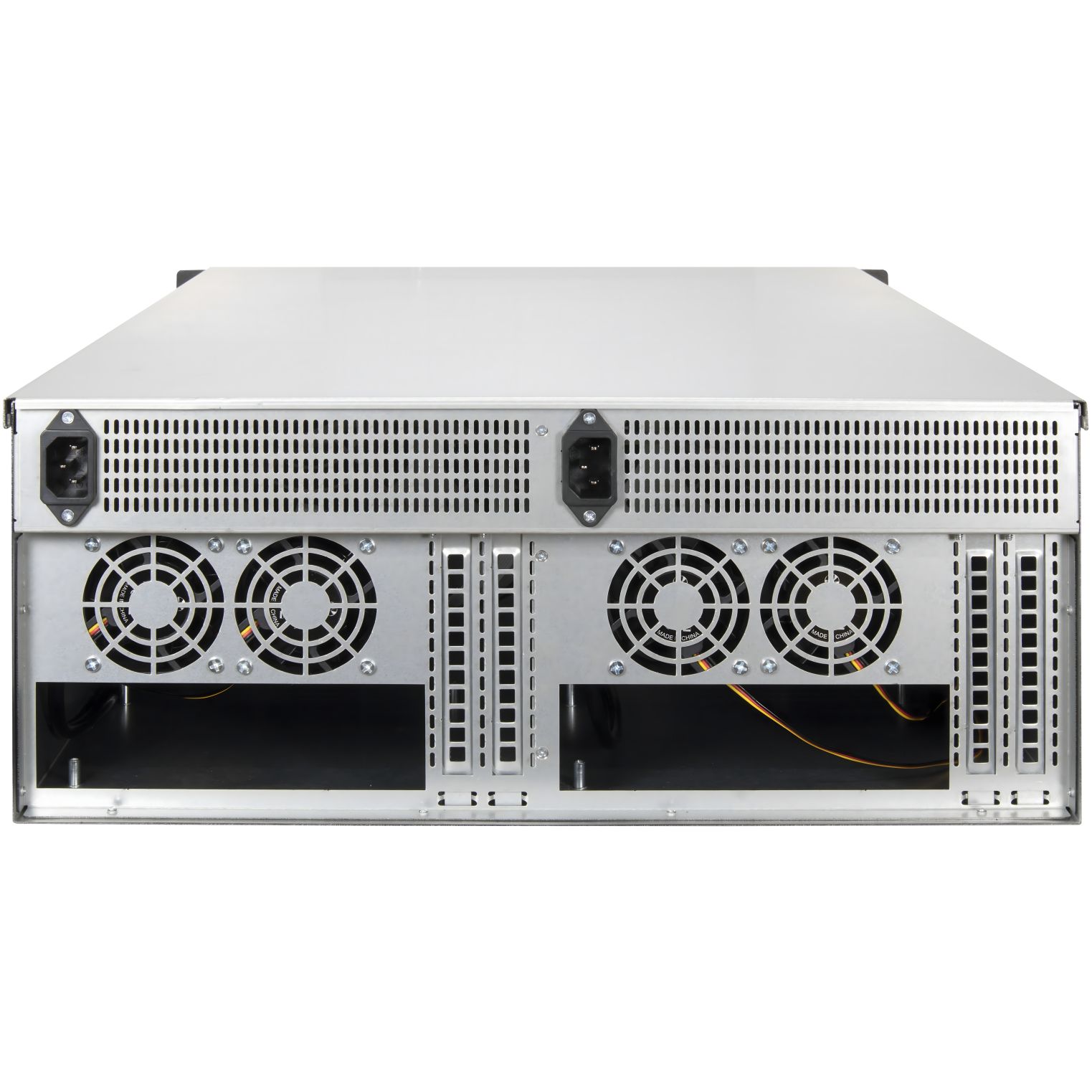

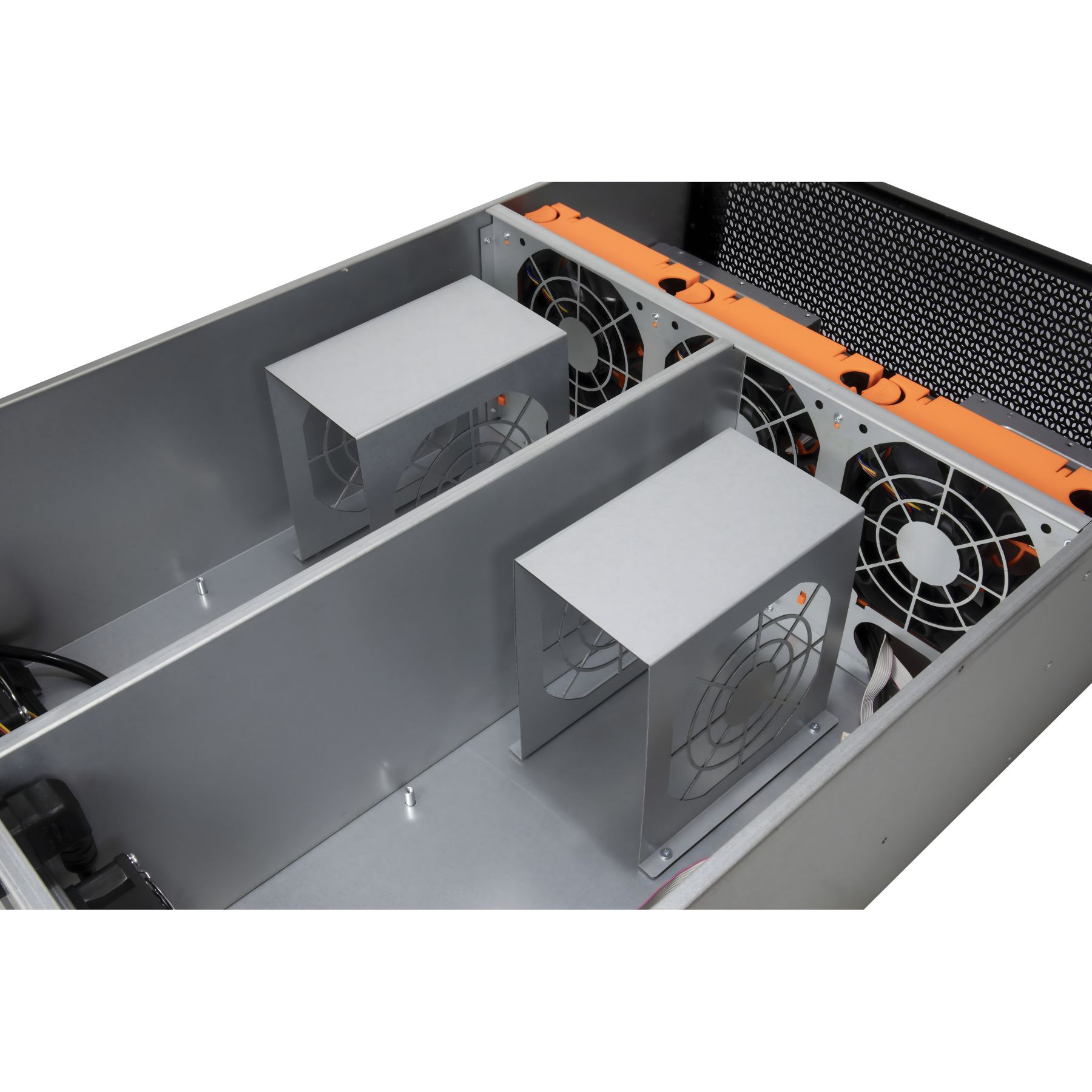

Two ATX power supplies can be integrated to provide power, enabling both systems to operate independently and reliably – ideal for ensuring redundancy and load balancing.

Features

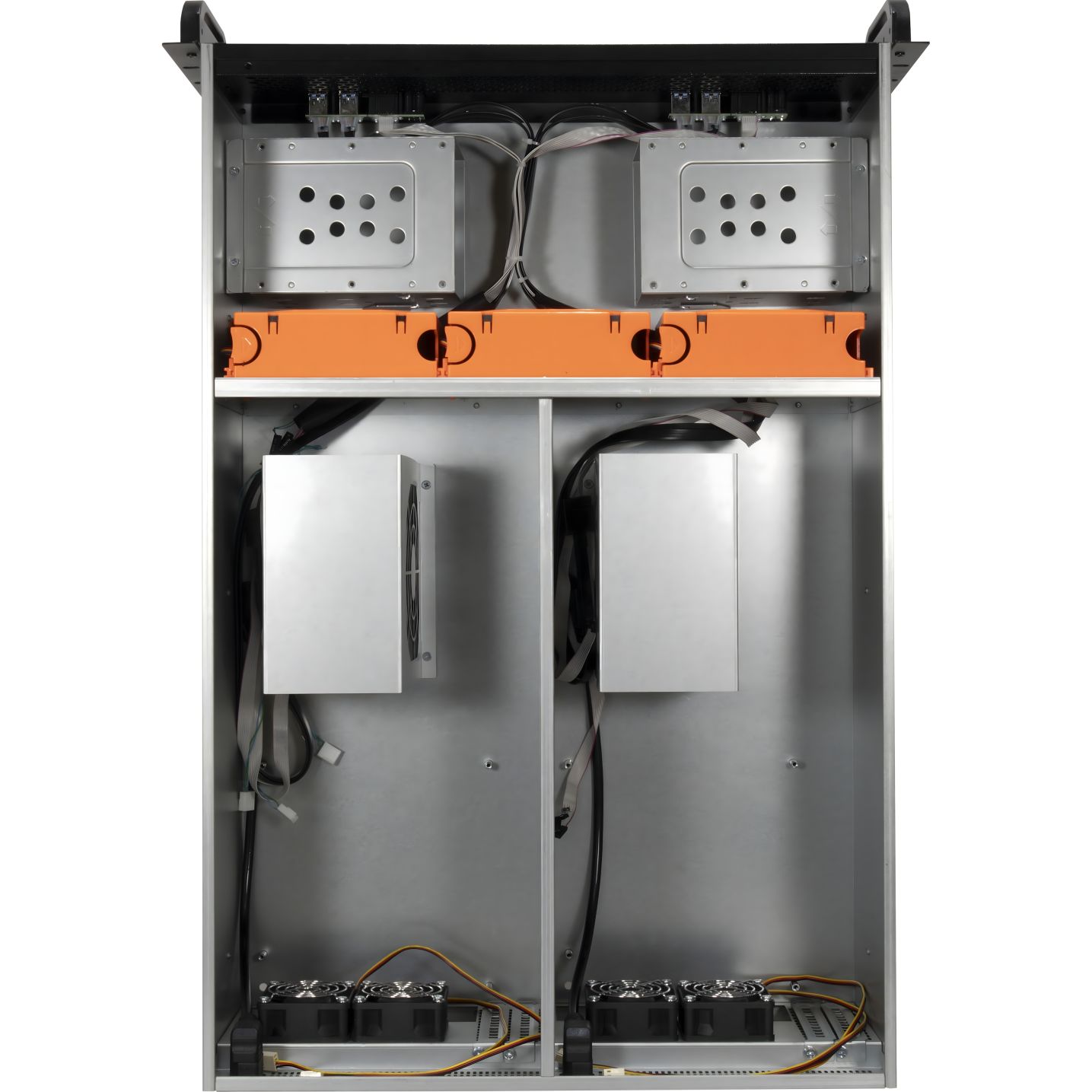

Installation of two separate systems with ITX motherboards

Size
Mainboard
Case
Cage
Mini-ITX
480 x 692 x 174mm (wxdxh)
430 x 662 x 174mm (wxdxh)

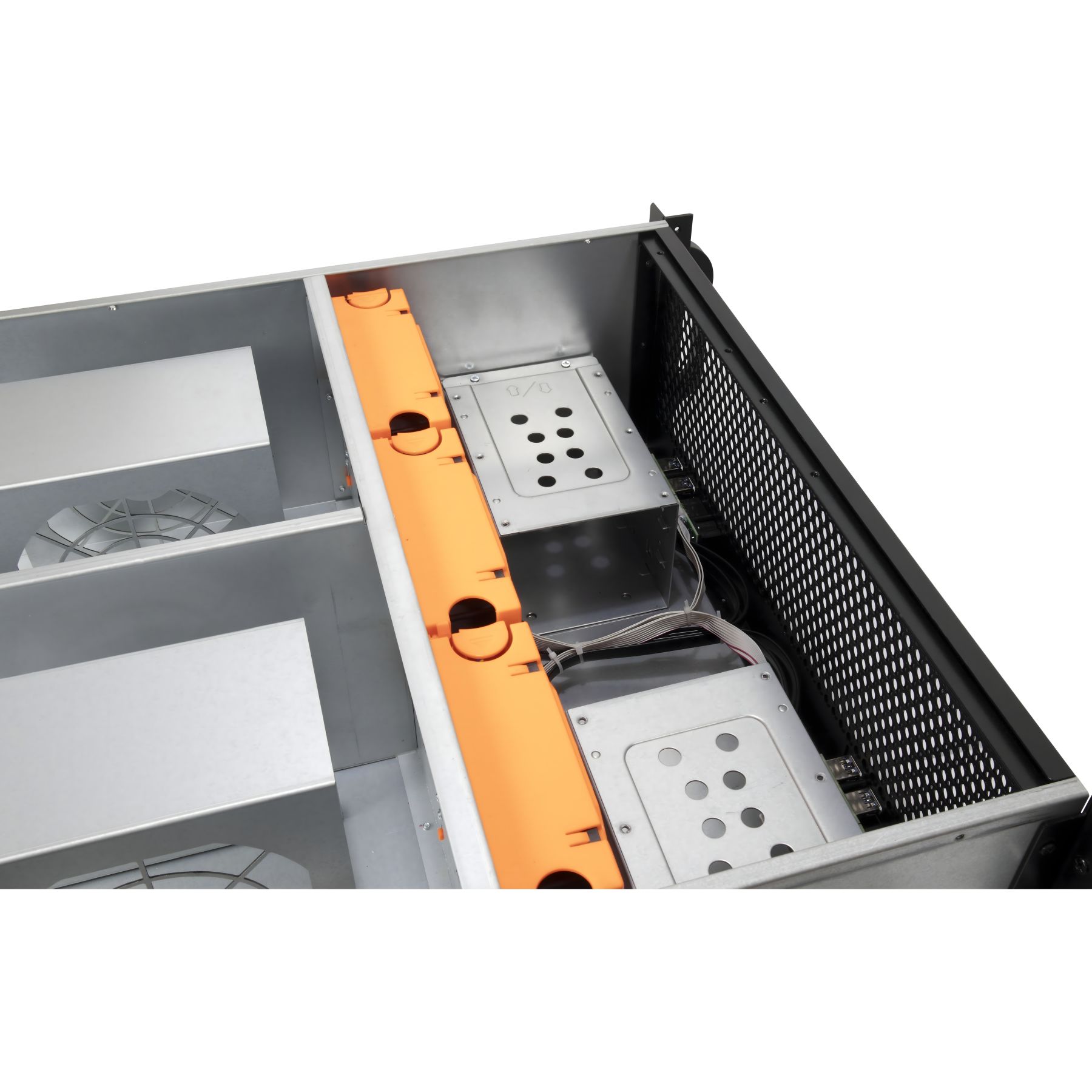

HDD/ ODD Mounting space
5,25" external
3,5" external
2,5" external
3,5" external or 2,5"
3,5" internal
2,5" internal
3,5" or 2,5" internal
-
-
-
-
2x 3
-
-

Front connectors
USB A 3.0
USB A 2.0
USB Type C
Headphone
Microphone
Card Reader
2x 2x 3.2Gen1
-
-
-
-
-

Mounted fans
200mm
140mm
120mm
80mm
60mm
40mm
-
-
3
-
-
2x 2

Further mounting options
Power supply
CPU cooler
Graphic adapter
Fans
2x ATX
max. 145 mm
-
-

Scope of delivery

Case
Screws

Warranty

24 Months

Logistic data
Net weight
Gross weight
Article number
GTIN
Packing unit
14.41 kgs
16.58 kgs
88887424
4260455649964
1 pc
12 pcs (pallet)



Currently no tests available

Data sheet 4U-465M2
Download
Technical drawing 4U-465M2
Download
Pictures 4U-465M2
Download





Telescopic rails

26" Telescopic rails


Power supplies

ATX Power supplies
