PATCHPANEL CAT5E UTP 24 PORT

Article No.
88887152

Patchpanel for connection and distribution of Ethernet cables.

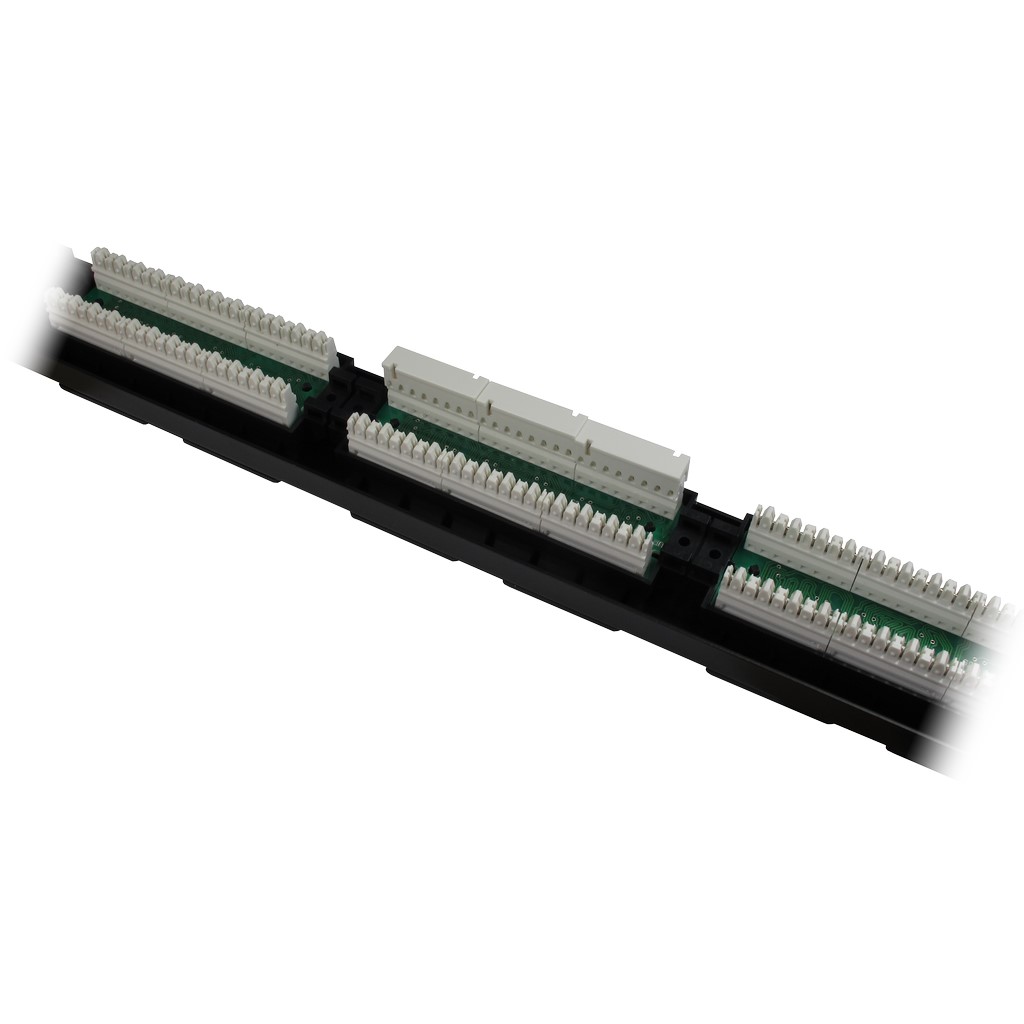

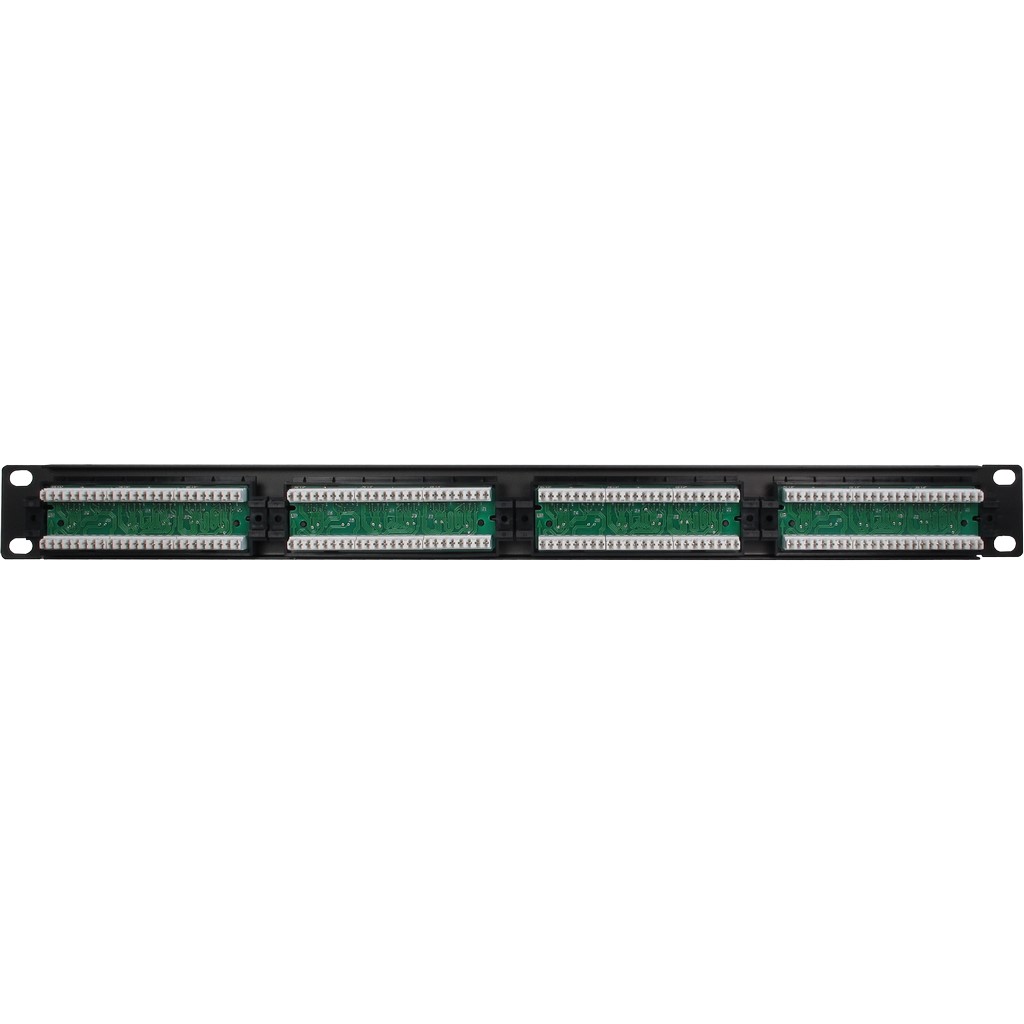

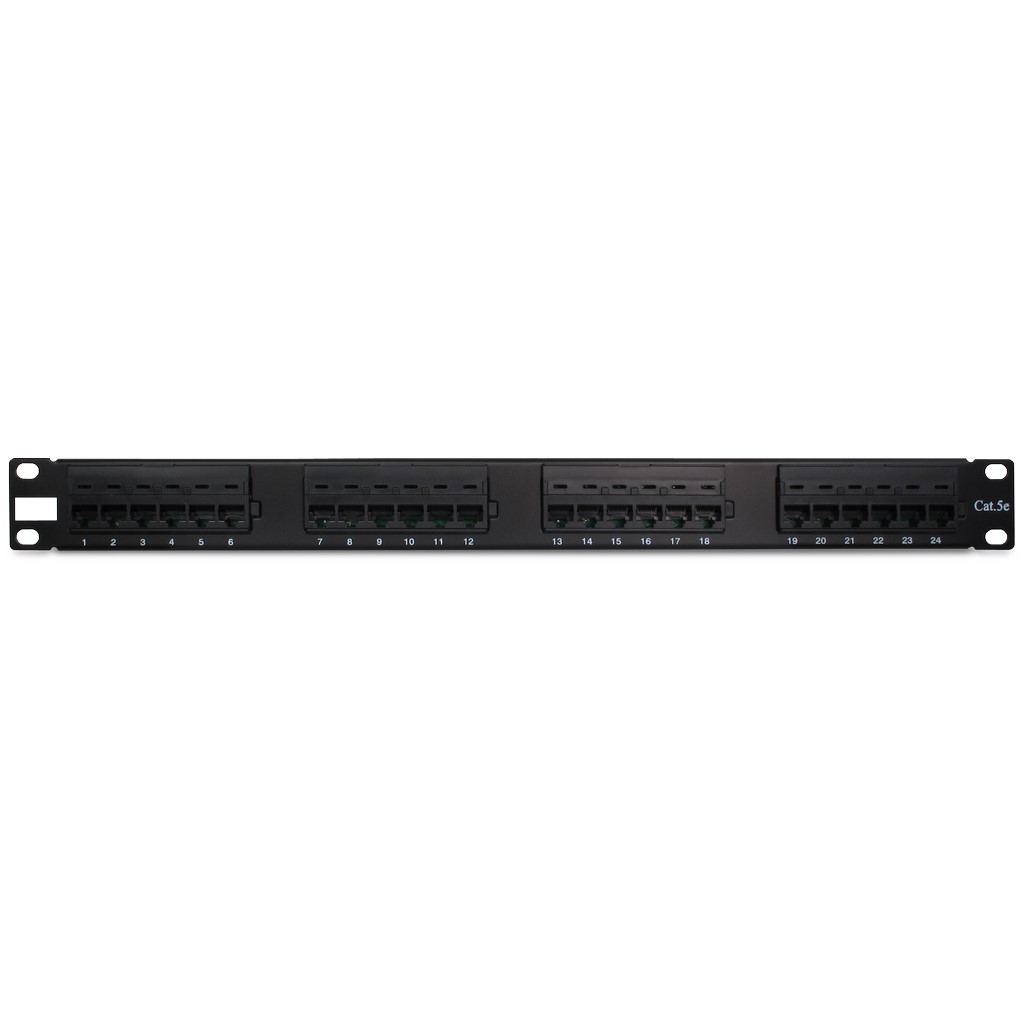

The cables will be connected by LSA Plus at the backside. Frontside with RJ45 sockets for Patch cable.

GENERAL DATA
Front Connectors 24x RJ45
Rear Connectors Cable connectors 24x 110DIC
LSA for cable standard 22 - 26 AWG
Standard TIA/EIA 568A/B
Cat.5e UTP
1U 19" Rackmount
max. Transfer Rate 100MHz
Material Metal front
Plastic connector module
OTHER DATA
Dimension (h/w/d) 45 x 482 x 35mm
Guarantee 24 months
SCOPE OF DELIVERY & FEATURES
Scope of delivery

Patchpanel Cat5e

24x cover cap with insertion function for LSA-Connectors

Screws

Cable strap

User Manual (English)
Features

Cablestrain relief rear

Provides Network and Telephone
LOGISTICAL DATA
Shipping Unit 1 Pcs
Weight net = 0.440kgs
gross = 0.605kgs
Item number 88887152
EAN-Code 4260133127760
