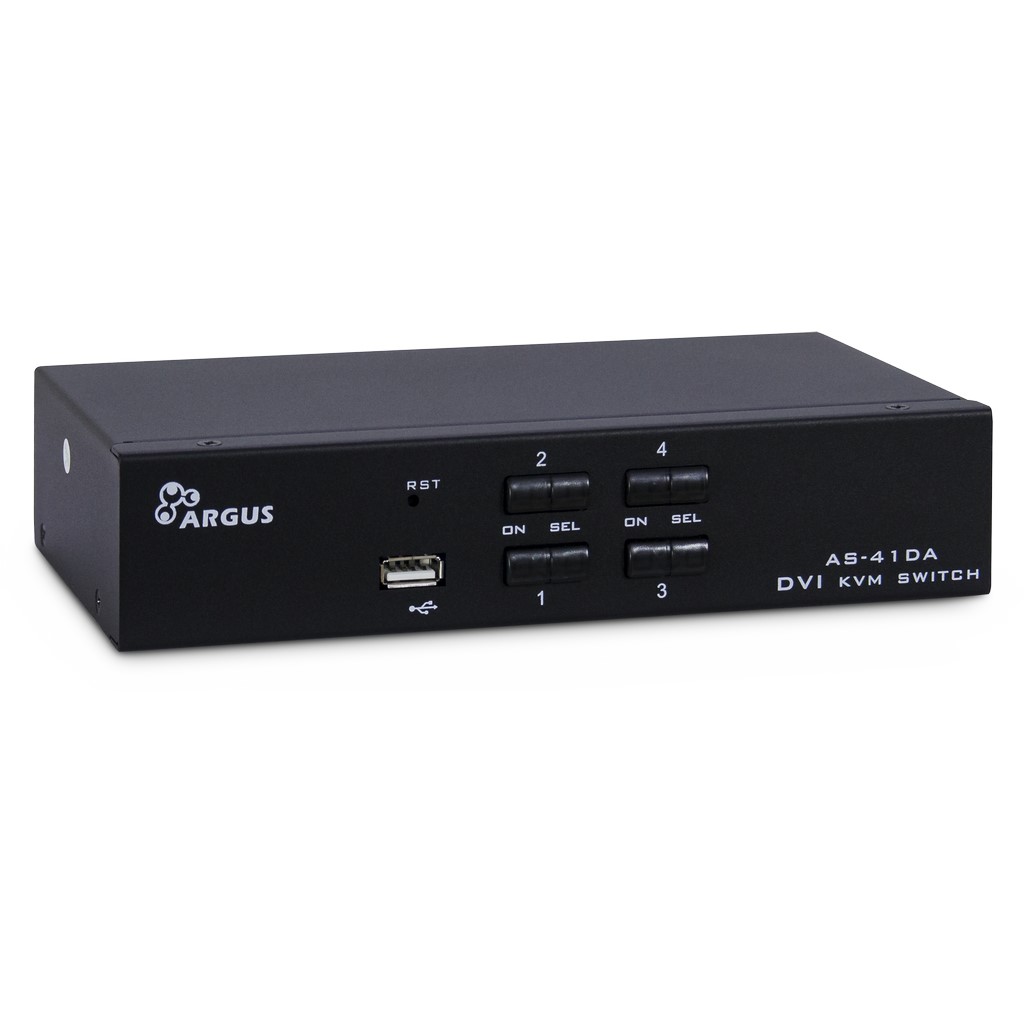

AS-41DA - 4-Port DVI KVM
The KVM AS-41DA DVI is a 4-Port KVM-Switch with reasonable price and automatic audio switch for Desktops.
The KVM is connected to your system via USB (Keyboard / Mouse), 4x 3.5mm Audio Jack (Audio Mic/Line) and DVI-I or DVI-D by 4 included cables.
The additional USB port in the front allows to connect external data drives, such as USB sticks.
| GENERAL DATA | |
|---|---|
| Outputs | 4 |

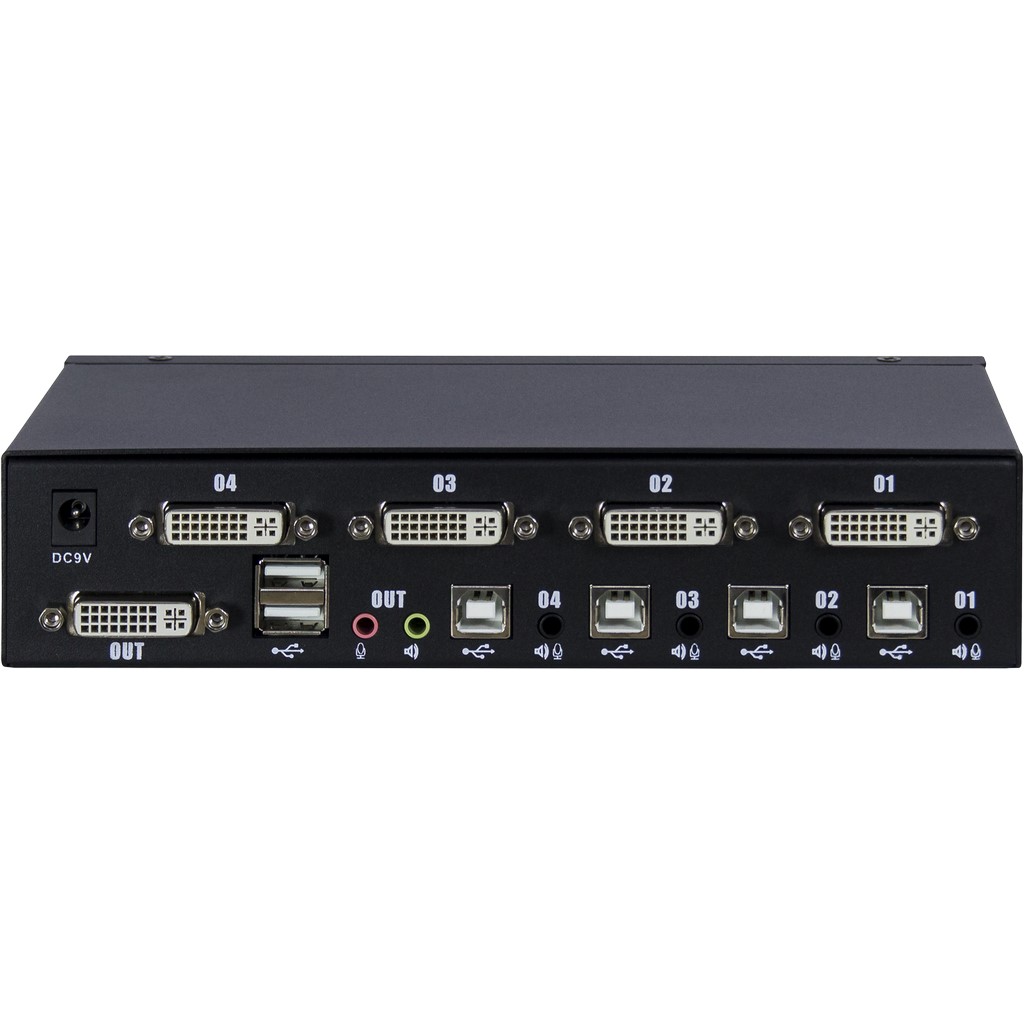

| Connectors input | 4x DVI-I or DVI-D (VGA, USB Keyboard, Mouse (only digital)) 8x 3.5mm 3 Pol. Audio Jack (4x Line in/4x Mic in) 1x Power |
| Connectors output | 2x USB (Keyboard/Mouse) 2x 3.5mm 3 Pol. Audio Jack (1x Line out/1x Mic out) 1x DVI-I or DVI-D (only digital) |
| Controls | 4x selection |
| LED | 4x selection, 4x online |
| Supported OS | No Restrictions |
| Switch Modi | Hotkey or Controls |
| Switch Scan Time | 5s (fix) |
| DDC | |
| Display Resolution | 1920x1200 DVI Single Link |
| OTHER DATA | |
| Power Supply | Via connected PC or External PSU (optional) |
| Input | 9V ~ 0.5A DC |
| Material | Rust-resistant Steel |
| Operating Temperature Storage Temperature |
5°C~40°C -2°C~60°C |
| Humidity | 0-80% |
| MBTF | Approx. 120.000 hrs. |
| Dimension (h/w/d) | 41 x 203 x 115mm |
| Guarantee | 24 months |
| SCOPE OF DELIVERY & FEATURES | |
| Scope of delivery |

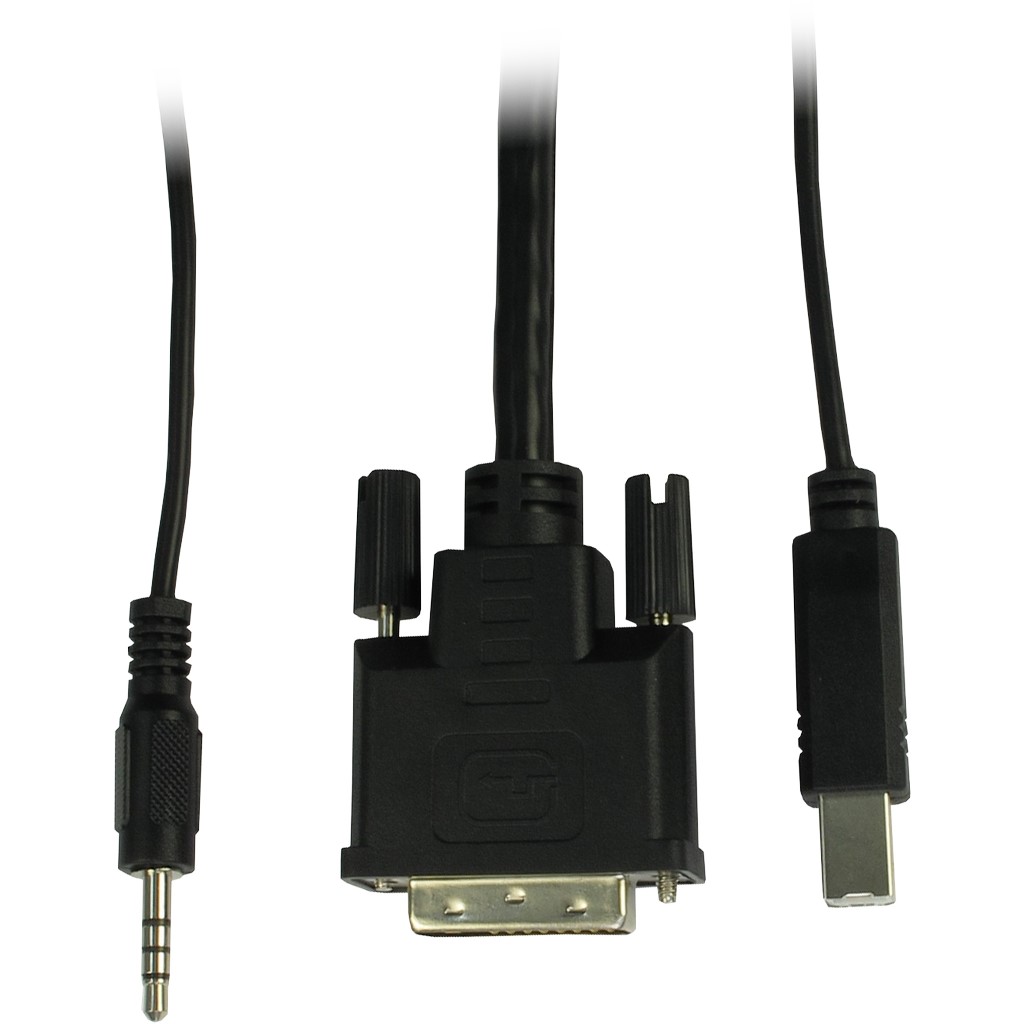

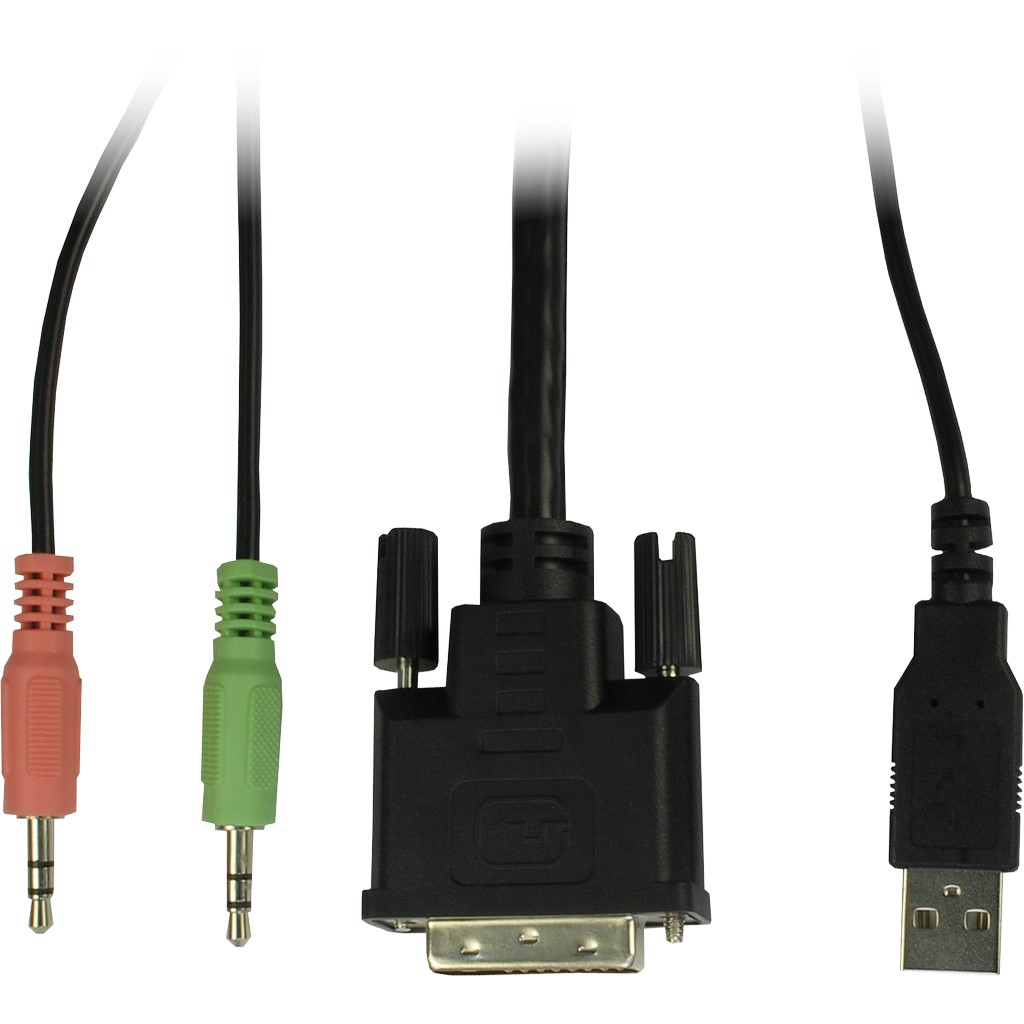

KVM AS-41DA Retail packaging 4x Cable DVI-I/USB/Audio to DVI-I/USB/Audio (180cm) User manual on CD (german / english) |
| Features |
4x Hotkeys USB-Port in the front for external data drives |
| LOGISTICAL DATA | |
| Shipping Unit | 1 Pcs |
| Weight | net = 0.76kgs gross = 2.01kgs |
| Item number | 88887201 |
| EAN-Code | 4260133128842 |
