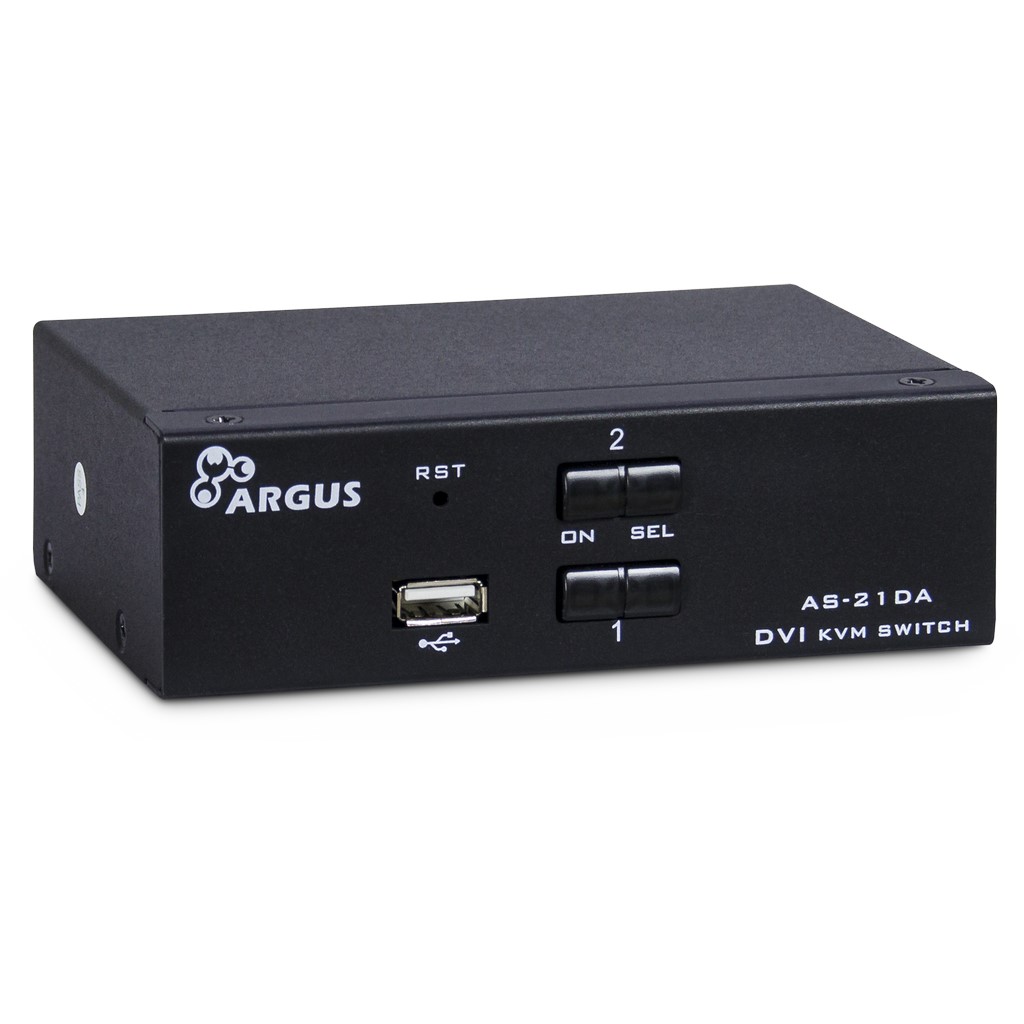

AS-21DA - 2-Port DVI KVM

Article No.

88887200

The KVM AS-21DA DVI is a 2-Port KVM-Switch with reasonable price and automatic audio switch for Desktops.

The KVM is connected to your system via USB (Keyboard / Mouse), 2x 3.5mm Audio Jack (Audio Mic/Line) DVI-D by 2 included cables.

GENERAL DATA
Outputs	2

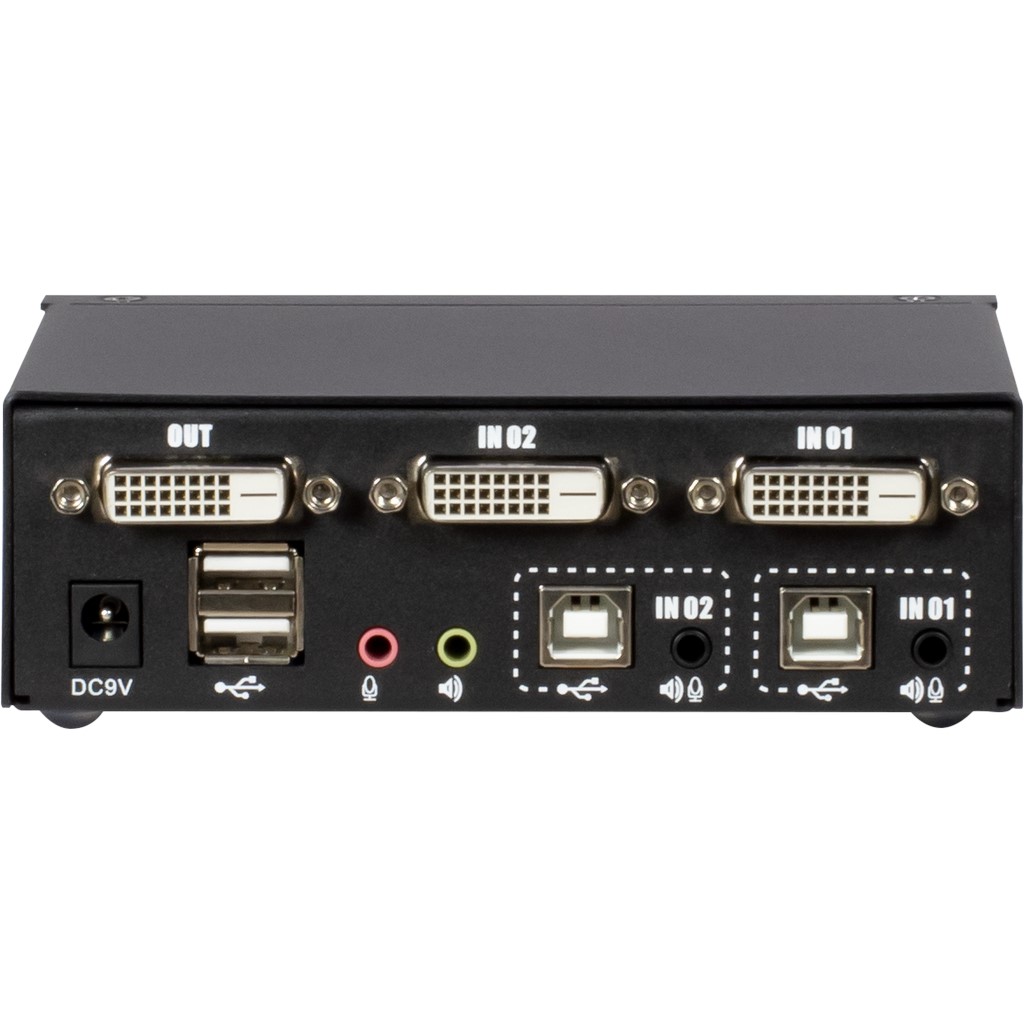

Connectors input	2x DVI-D (VGA, USB Keyboard, Mouse (only digital)) 4x 3.5mm 3 Pol. Audio Jack (2x Line in/2x Mic in) 1x Power
Connectors output	2x USB (Keyboard/Mouse) 2x 3.5mm 3 Pol. Audio Jack (1x Line out/1x Mic out) 1x DVI-D (only digital)
Controls	2x selection
LED	2x selection, 2x online
Supported OS	No Restrictions
Switch Modi	Hotkey or Controls
Switch Scan Time	5s (fix)
DDC
Display Resolution	1920x1200 DVI Single Link
OTHER DATA
Power Supply	Via connected PC or External PSU (optional)
Input	9V ~ 0.5A DC
Material	Rust-resistant Steel
Operating Temperature Storage Temperature	5°C~40°C -2°C~60°C
Humidity	0-80%
MBTF	Approx. 120.000 hrs.
Dimension (h/w/d)	42 x 132 x 97mm
Guarantee	24 months
SCOPE OF DELIVERY & FEATURES

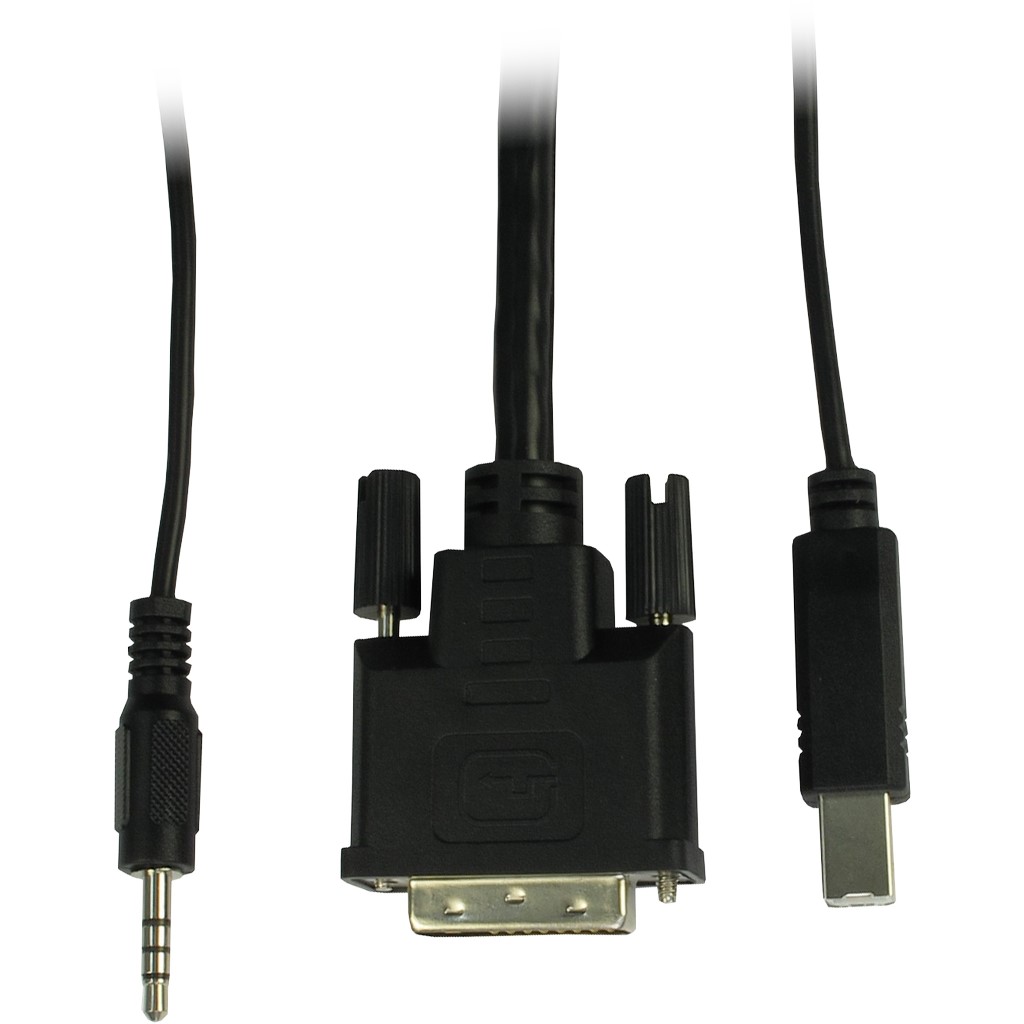

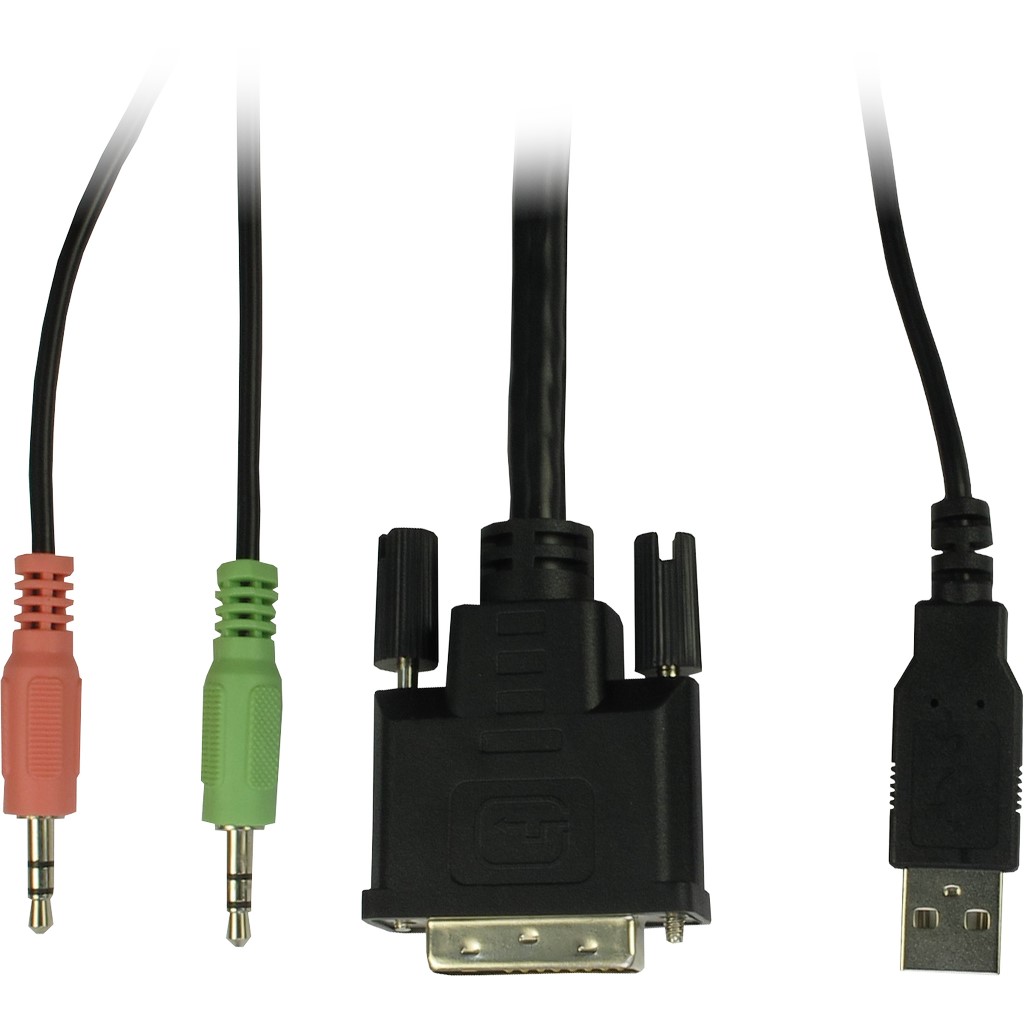

Scope of delivery	KVM AS-21DA Retail packaging 2x Cables DVI-D/USB/Audio to DVI-D/USB/Audio (180cm) User manual on CD (german / english)
Features	2x Hotkeys The additional USB port in the front allows to connect external data drives, such as USB sticks.
LOGISTICAL DATA
Shipping Unit	1 Pcs
Weight	net = 0.53kgs gross = 1.22kgs
Item number	88887200
EAN-Code	4260133128835

Data sheet AS-21DA DVI	Download
Declaration of conformity AS-21DA DVI	Download
Manual AS-21DA DVI	Download
Picture package AS-21DA DVI	Download

* You need a PDF reader to read these documents
* Pictures and drivers are always packed as Zip. You need to unzip them before using.
