SR-680
High-performance server tower with extensive expansion options
This professional server tower case has been specially designed for powerful server and workstation configurations. It offers outstanding flexibility, generous space for components, and is ideal for demanding IT environments.
Drive capacity:
- Up to 2x 5.25" drives – e.g. for hot-swap frames, removable frames, or other devices
- Up to 8x 3.5" hard drives – ideal for large storage configurations
Expansion cards:

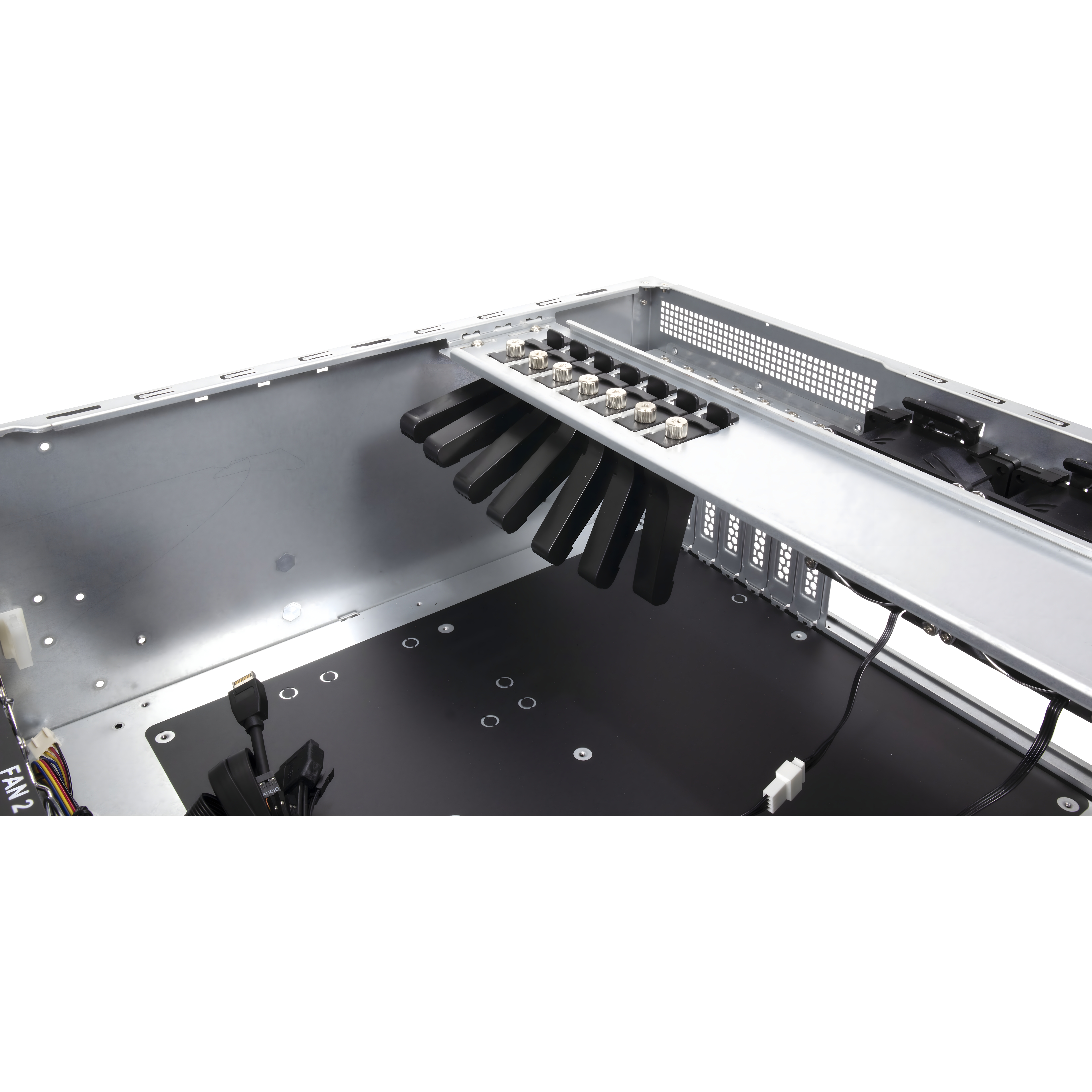

- Space for 8 expansion slots – for GPU, RAID, network, or other PCIe cards
Motherboard compatibility:
- Supports mainboards up to E-ATX (Extended ATX)
- Ideal for high-end server and workstation motherboards
Other:
- 5 built-in fans for optimal airflow

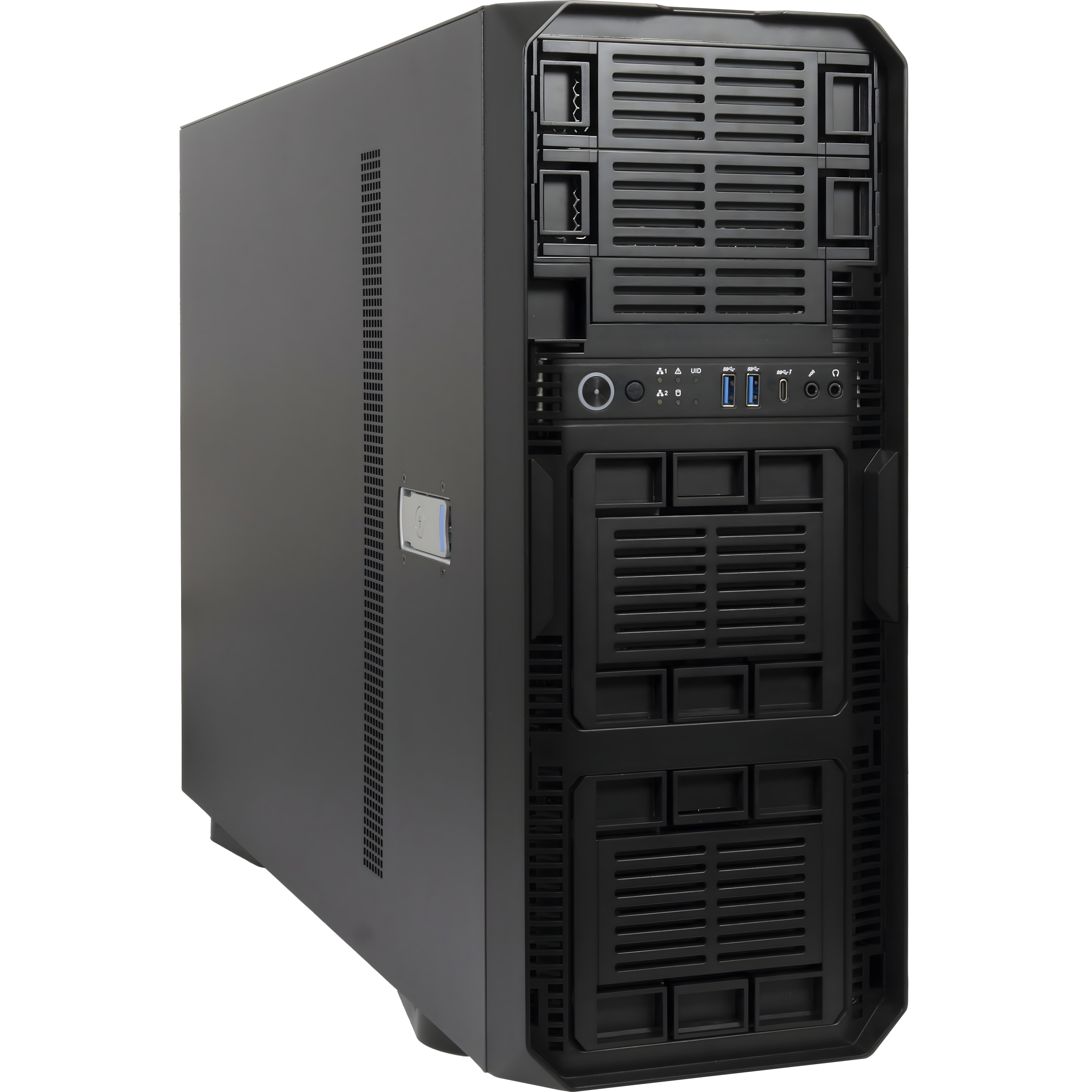

- Case open switch and UID LED on the front, especially for administrators.
Perfect for servers, NAS systems, video editing workstations, virtualization, or computationally intensive applications – this case provides the optimal platform for your individual high-end system
Features |
Mainboards up to E-ATX
|
|
Size |
Mainboard
|
Mini-ITX, mATX, ATX, E-ATX
|
HDD/ ODD Mounting space |
5.25" external3.5" external3.5" or 2.5" external3.5" internal2.5" internal3.5" or 2.5" internal |
21-8-- |
Front connectors |
USB A 3.0USB A 2.0USB Type CHeaphoneMicrophoneCard Reader |
2x 3.2 Gen1-1x 3.2 Gen2x2--- |
Mounted fans |
200mm140mm120mm80mm60mm |

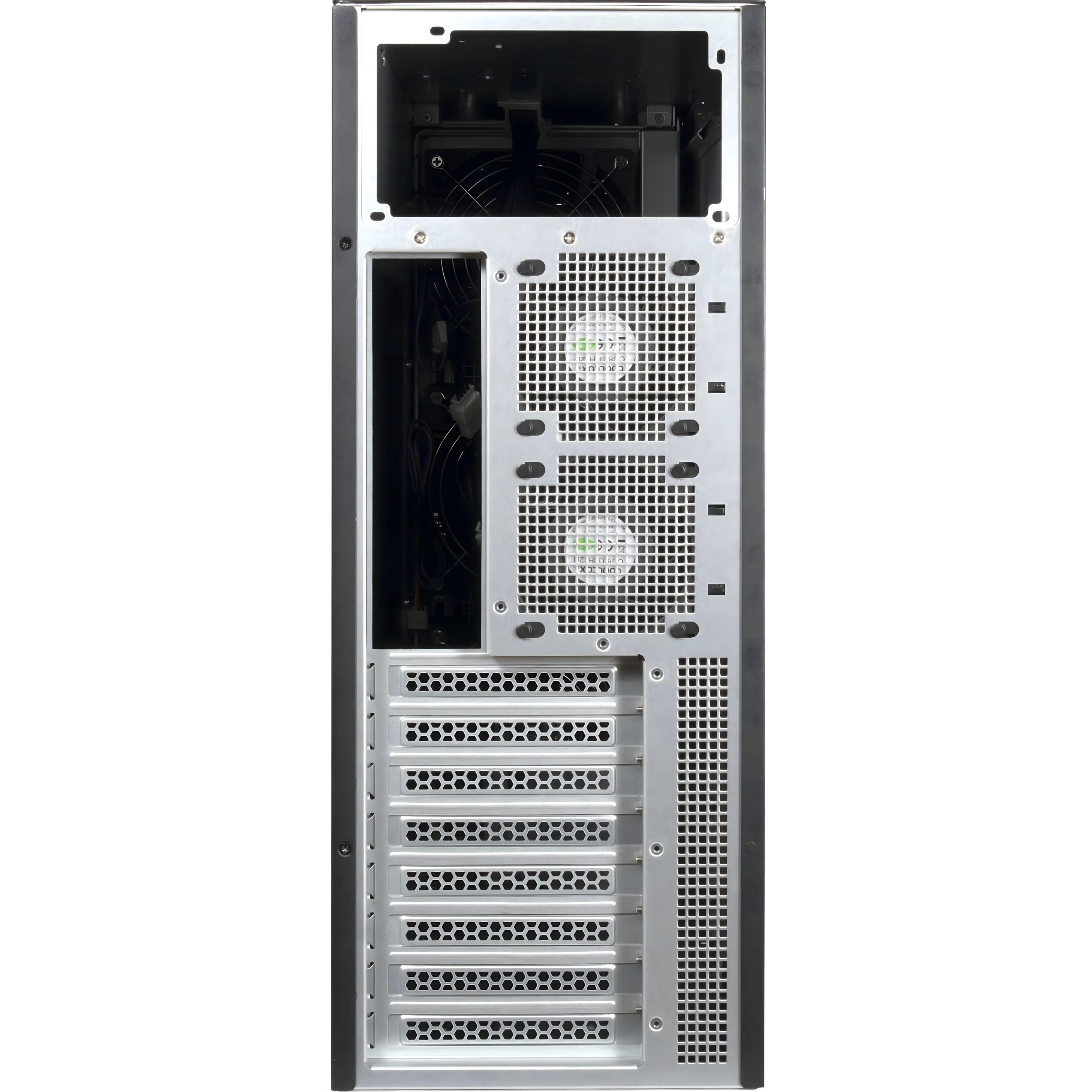

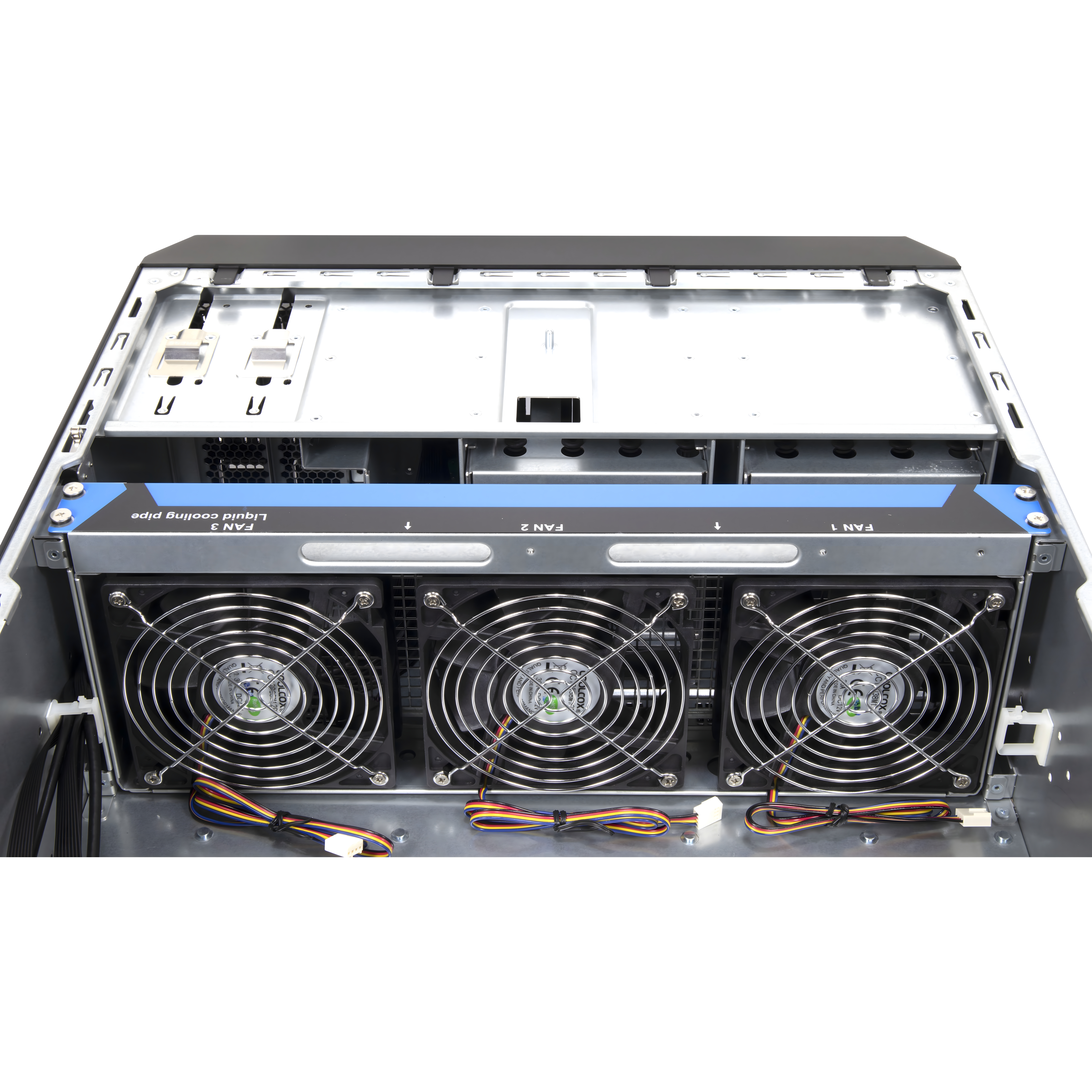

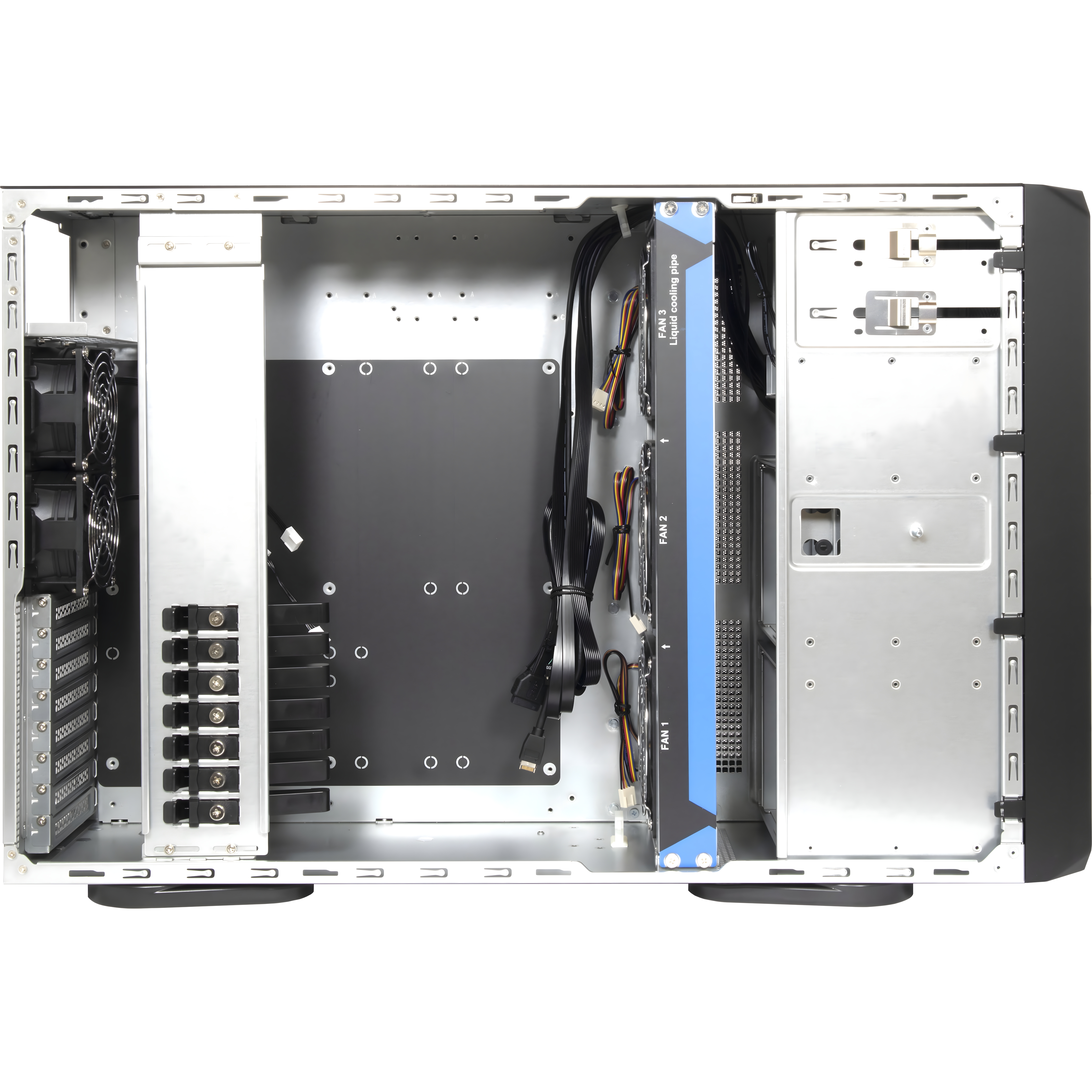

--3x in the center console2x in the rear panel- |
Further mounting options |
Power supplyCPU coolerGraphic adapterFansLiquid cooling |

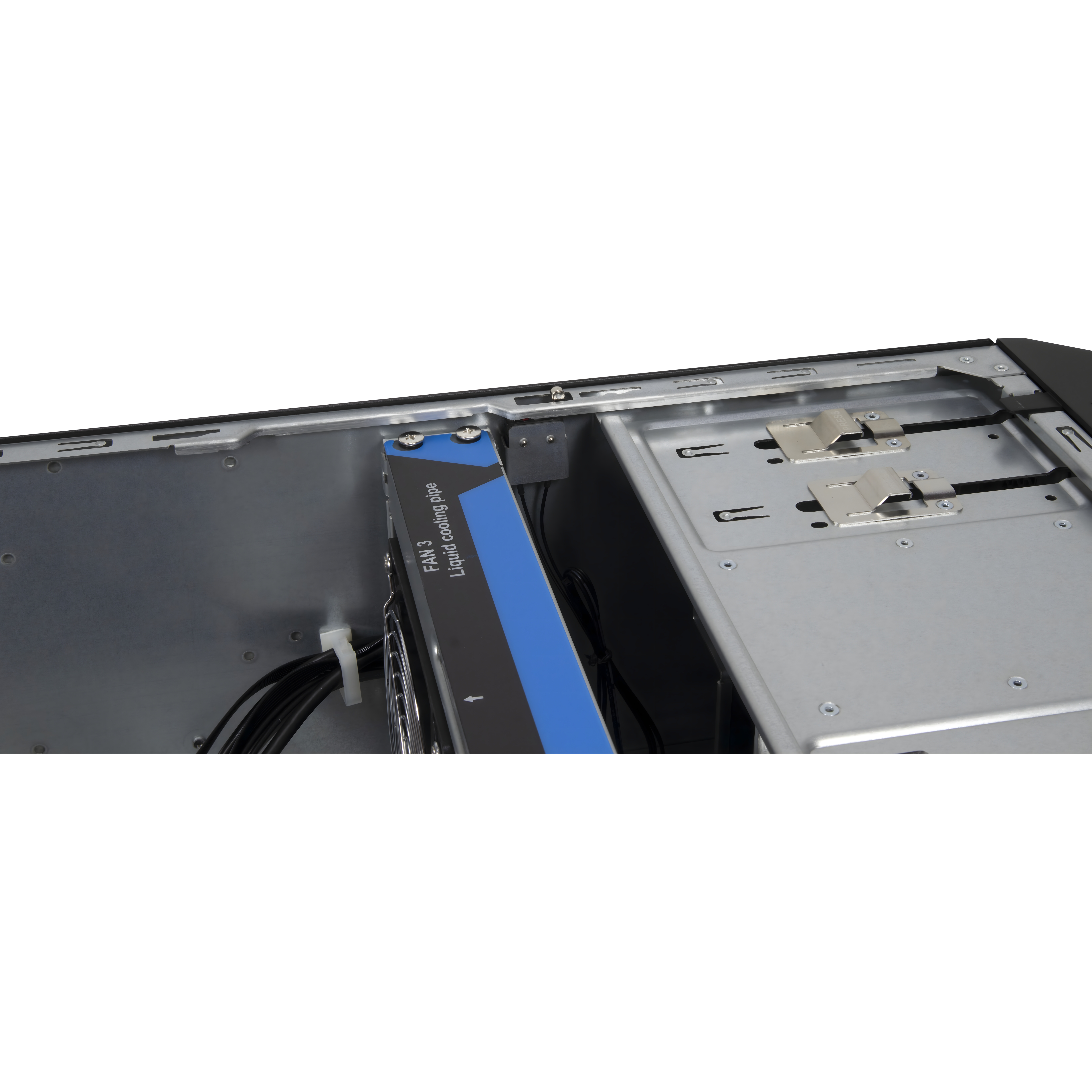

ATX, 2U (only GW)max. 155mmmax. 350mm-120mm or 240mm or 360mm, replacing the 120 mm fans in the center console |
Scope of delivery |
|
Case
|
Warranty |
|
24 Months |
Logistic data |
Net weightGross weightArticle numberGTINPacking unit |
16.00 kgs21.40 kgs8888741542604556497281 pcs
|
No tests available
 |

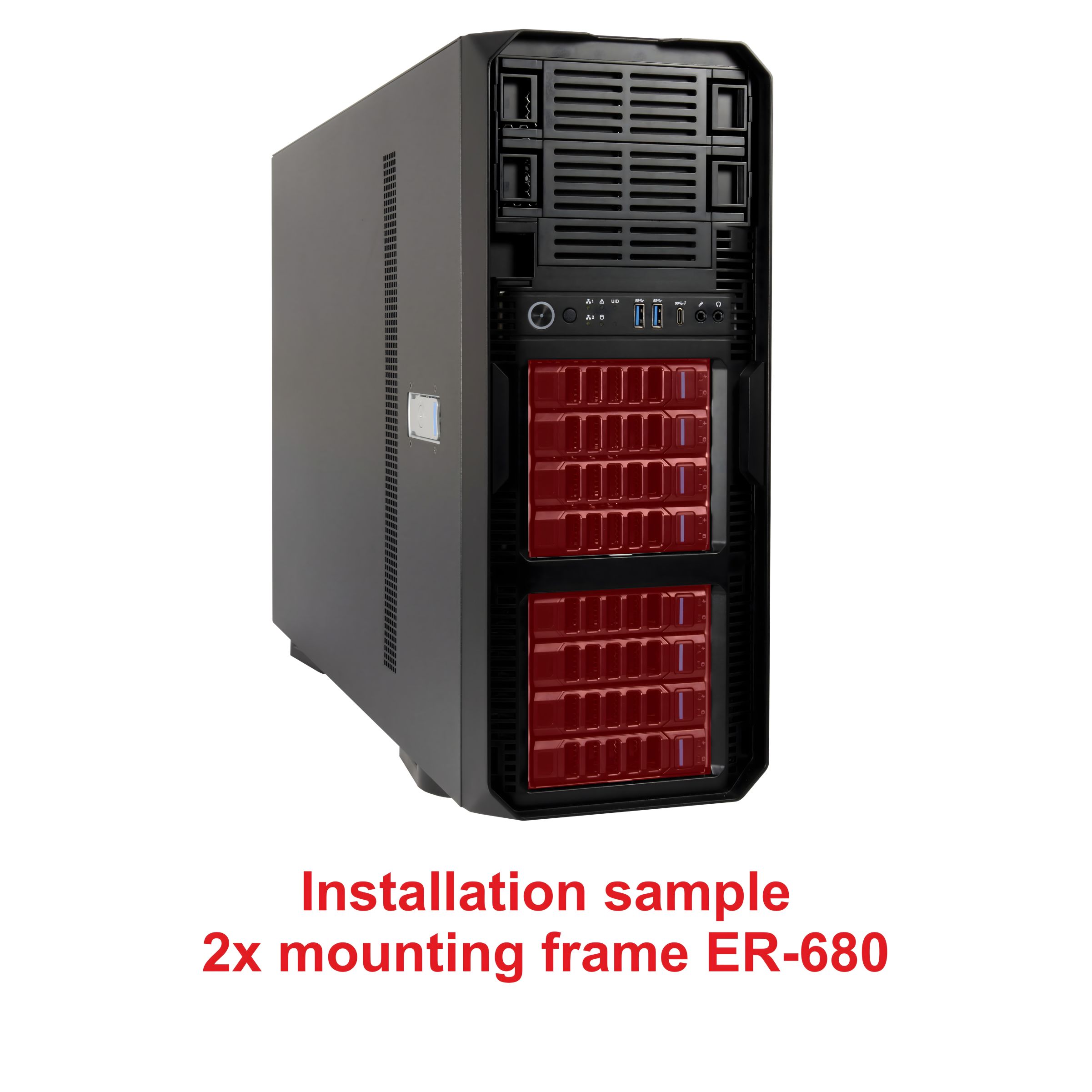

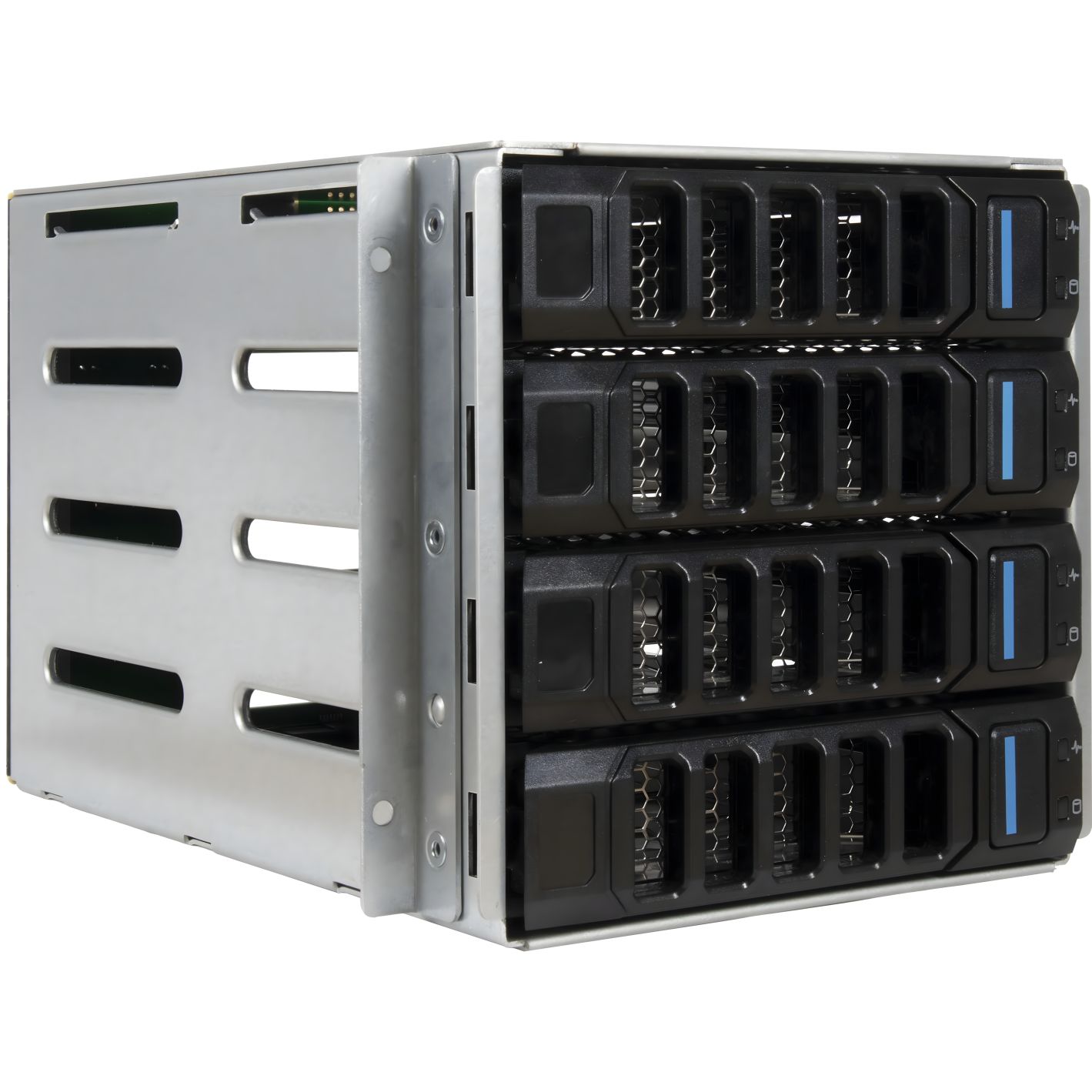

Hot-Swap frame ER-680 |
 |
