4U-47045

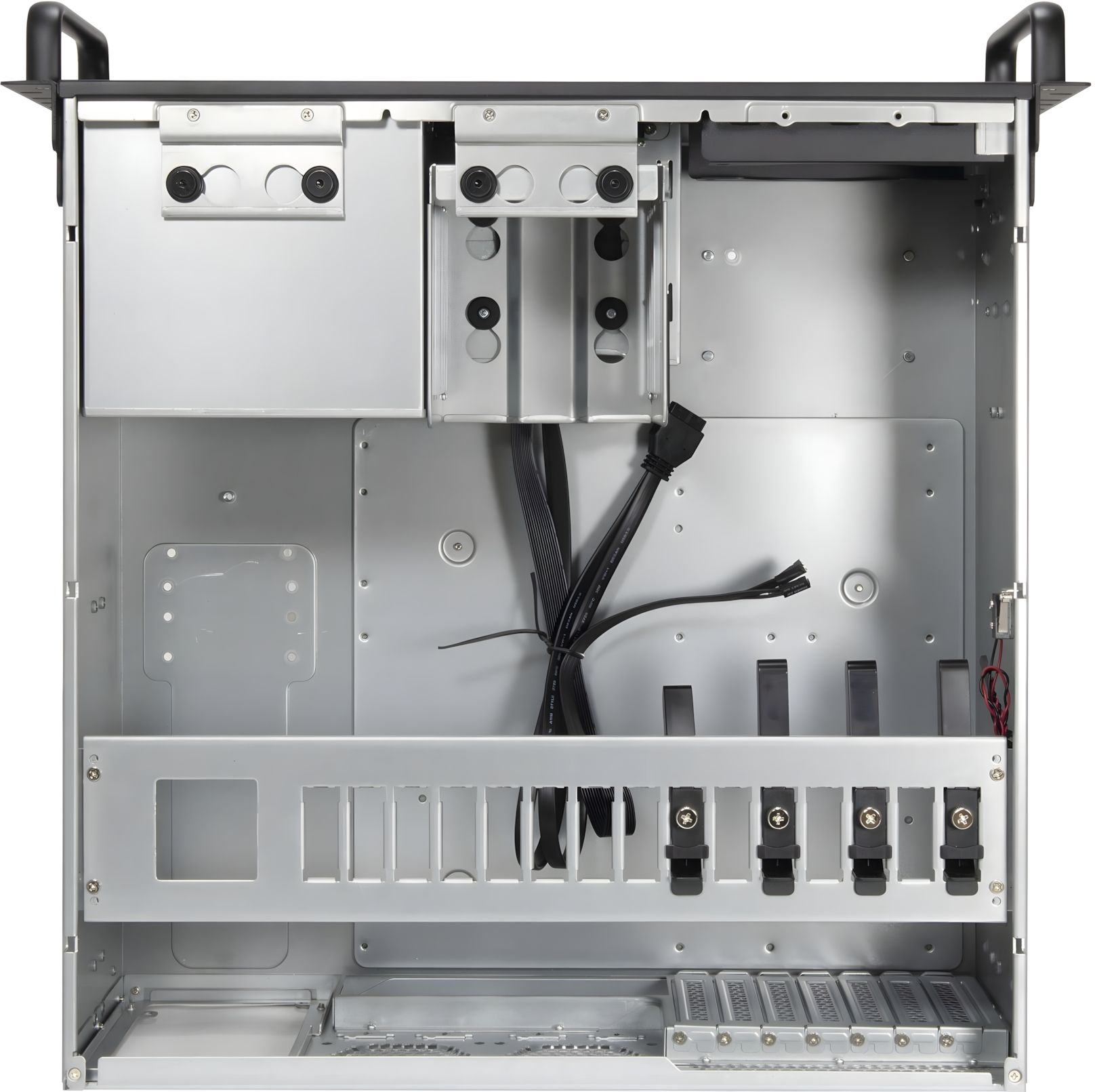

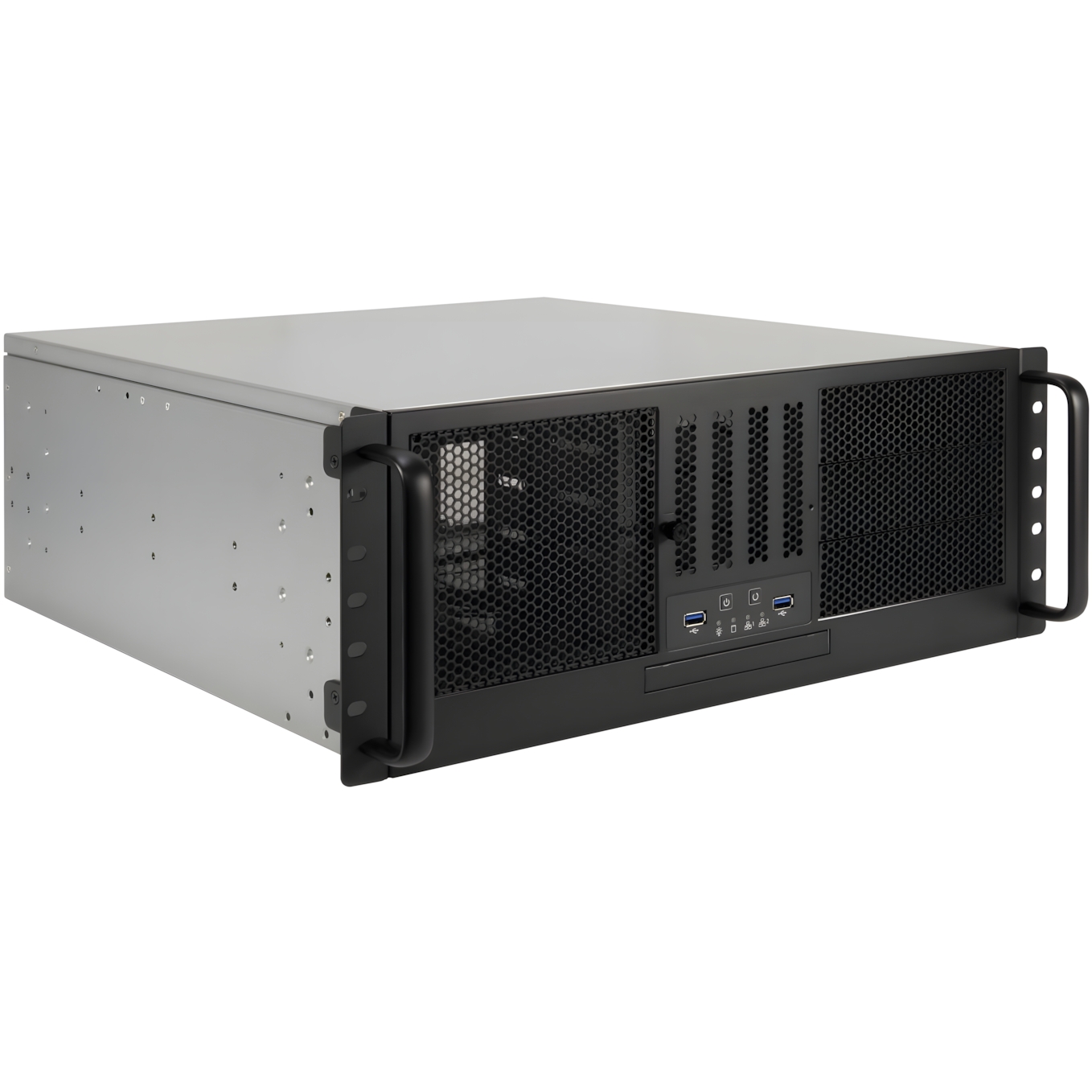

The 4U-47045 is a versatile 4U server case with many expansion options and is suitable for use in a 19" rack or as a stand-alone tower.
The case is designed as standard for the installation of three 5.25“ drives, one SLIM DVD drive, four 3.5” drives, and two 2.5" drives.
The number of drives can be expanded to up to six 5.25“ and two 2.5” drives or eight 3.5" and two 2.5" drives by installing optional mounting frames.

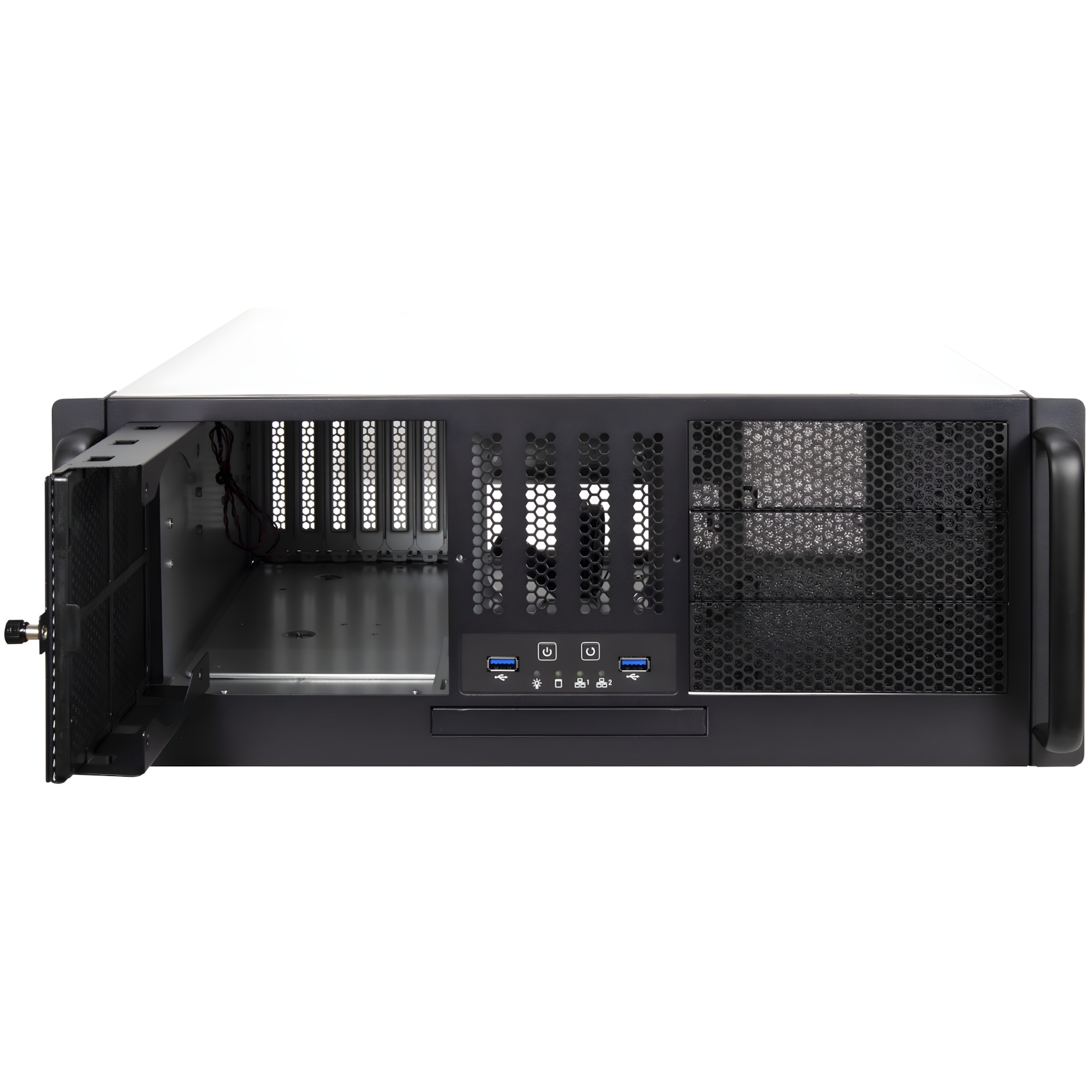

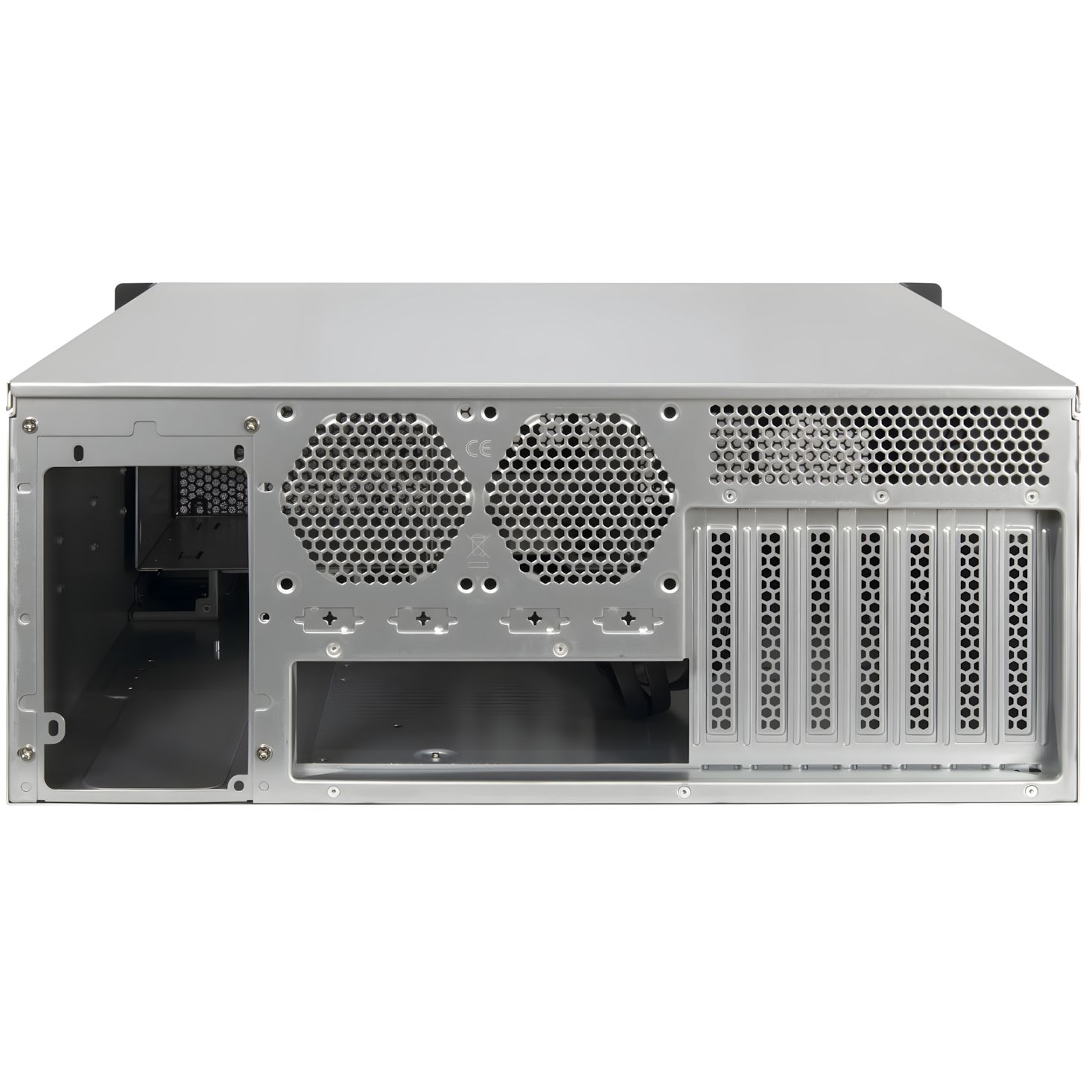

To ensure the necessary airflow, the case can be equipped with two 80mm fans at the rear, one 80mm fan in the 3.5" hard drive cage, and one 120mm fan behind the front door, which is fitted with a removable and washable dust filter.

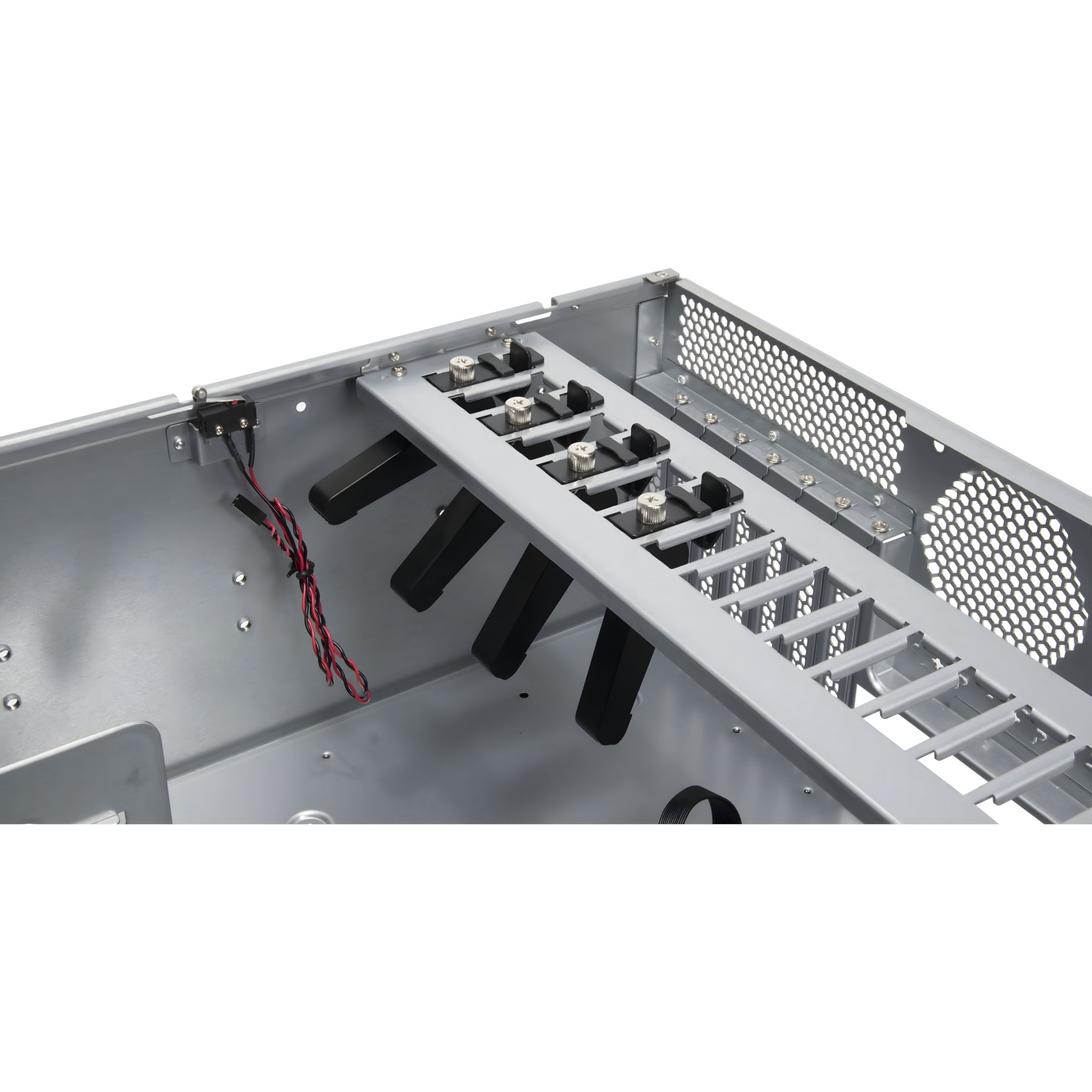

Adjustable graphics card holders ensure that graphics cards or other expansion cards are held securely in place.

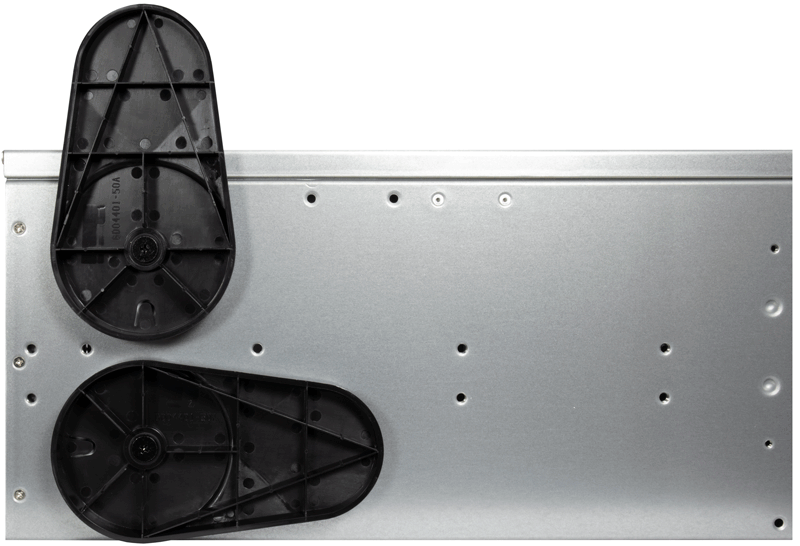

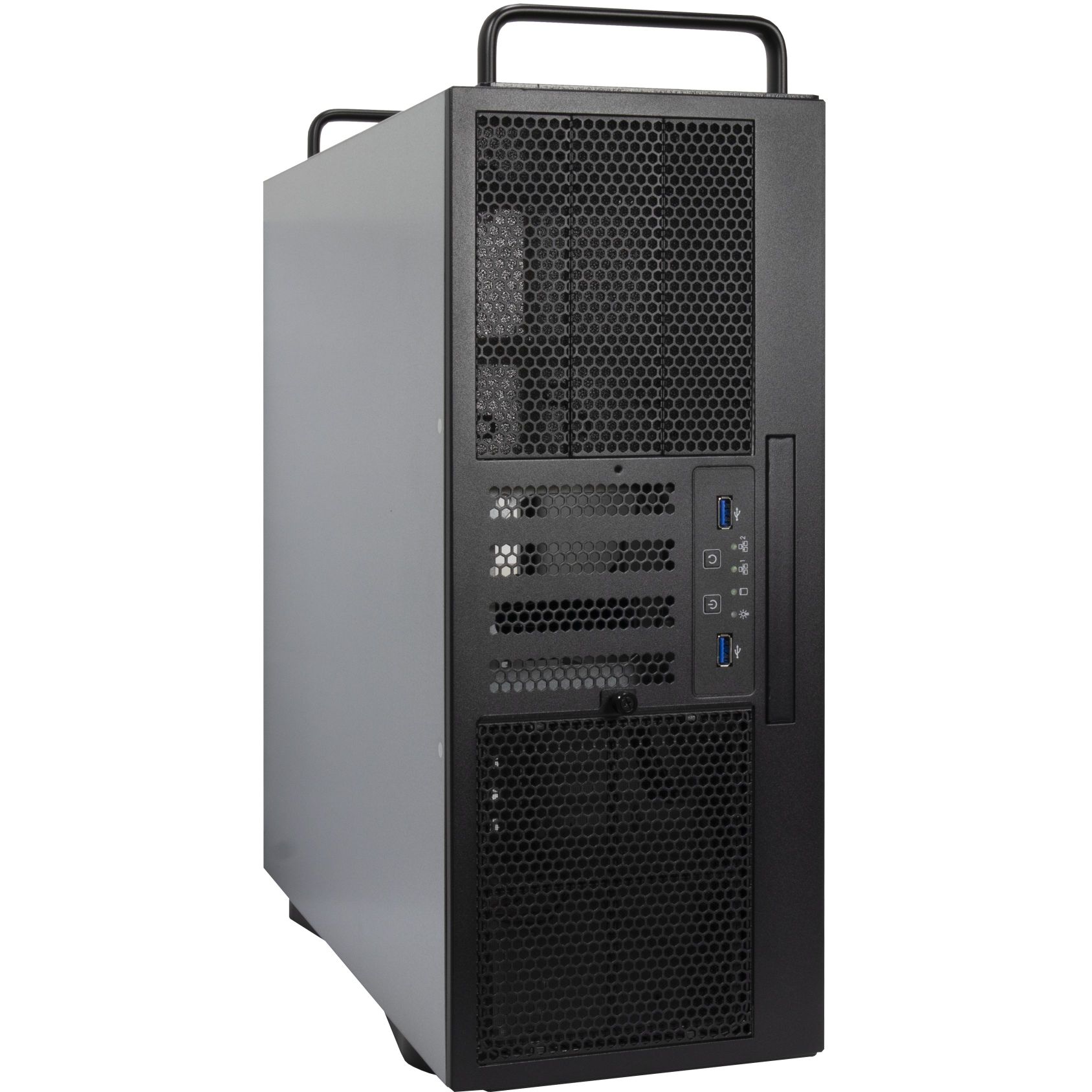

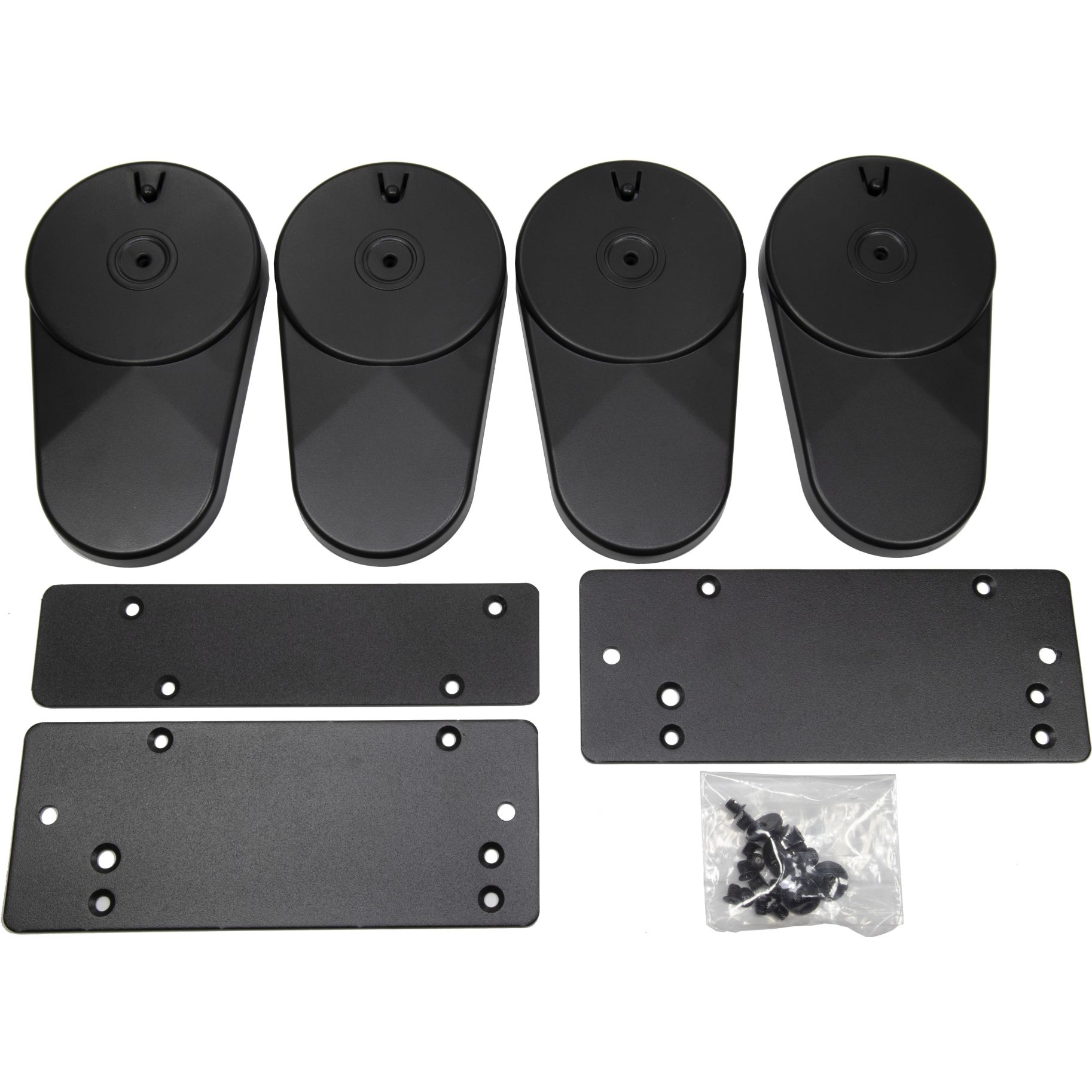

Furthermore, the case can also be used as a stand-alone case with the optionally available “SF-47045” expansion set, which adds feet and top-mounted transport handles.
Features |
Modular airflow cage system
|
|
Size |
MainboardCaseCage |
Mini-ITX, Micro-ATX, ATX, E-ATX
|
HDD/ ODD Mounting space |
5.25" external
3.5" external3.5" or 2.5" external3.5" internal2.5" internal3.5" or 2.5" internal |
3
|
Front connectors |
USB A 3.0USB A 2.0USB Type CHeaphoneMicrophoneCard Reader |
2x 3.2 Gen1----- |
Mounted fans |
200mm140mm120mm80mm60mm |
----- |
Further mounting options |
Power supplyCPU coolerGraphic adapterFans |

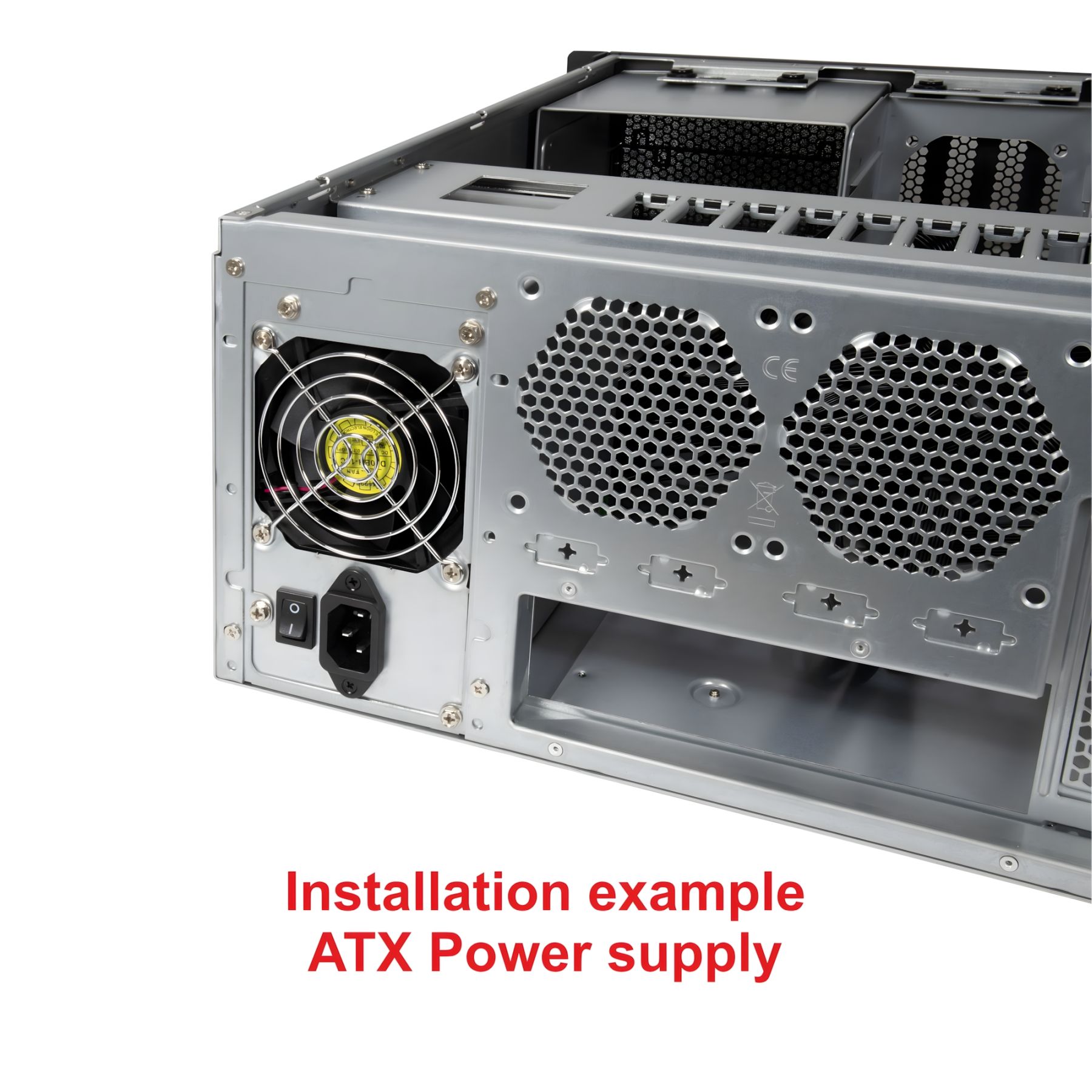

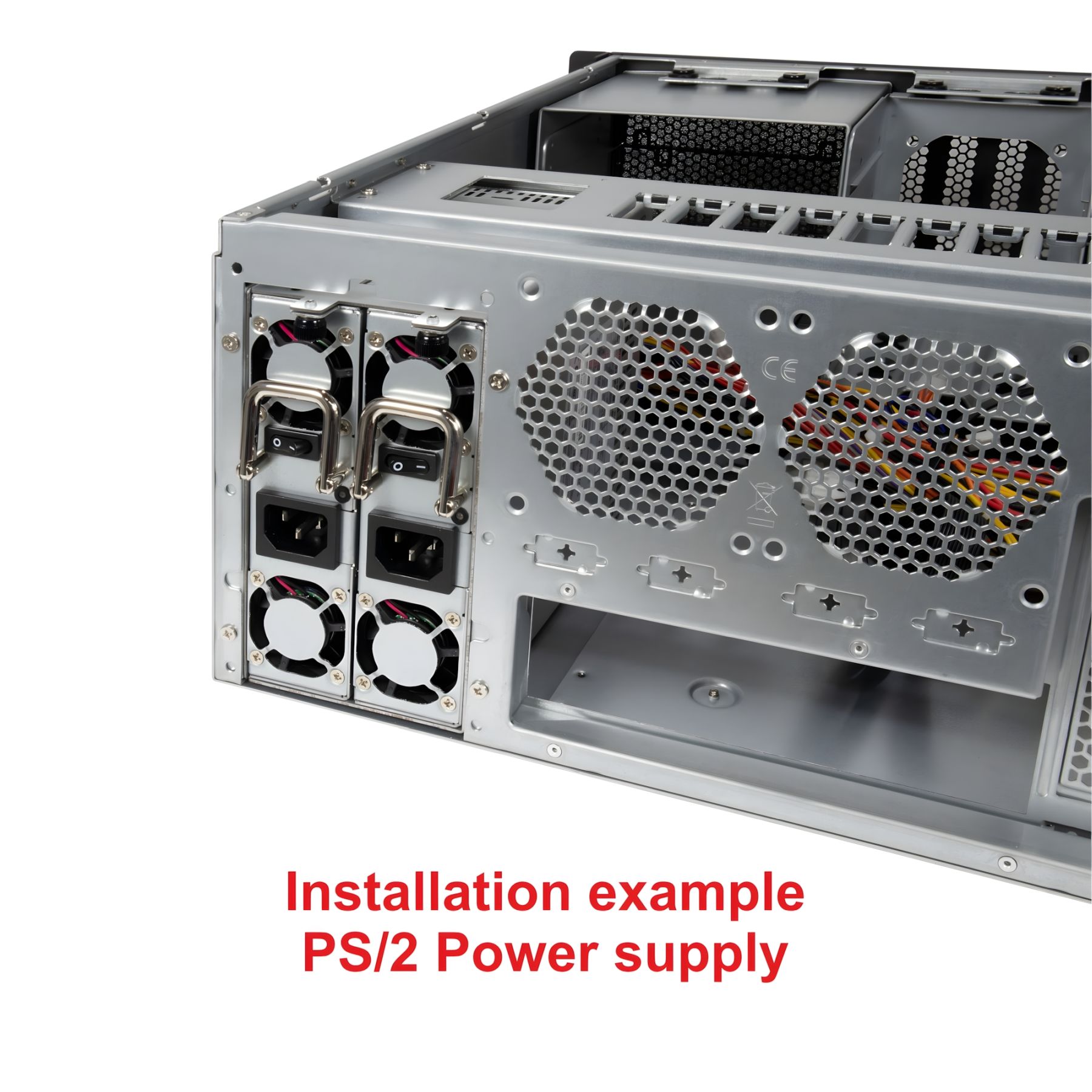

ATX, Mini-Redundant PS/2max. 145 mmmax. 330 mm2x 80mm rear
|
Scope of delivery
|
|
Case
|
Warranty |
|
24 Months |
Logistic data |
Net weightGross weightArticle numberGTINPacking unit |
8.690 kgs13.485 kgs8888741842604556497591 pcs
|
No test reports available at this time
![]() |

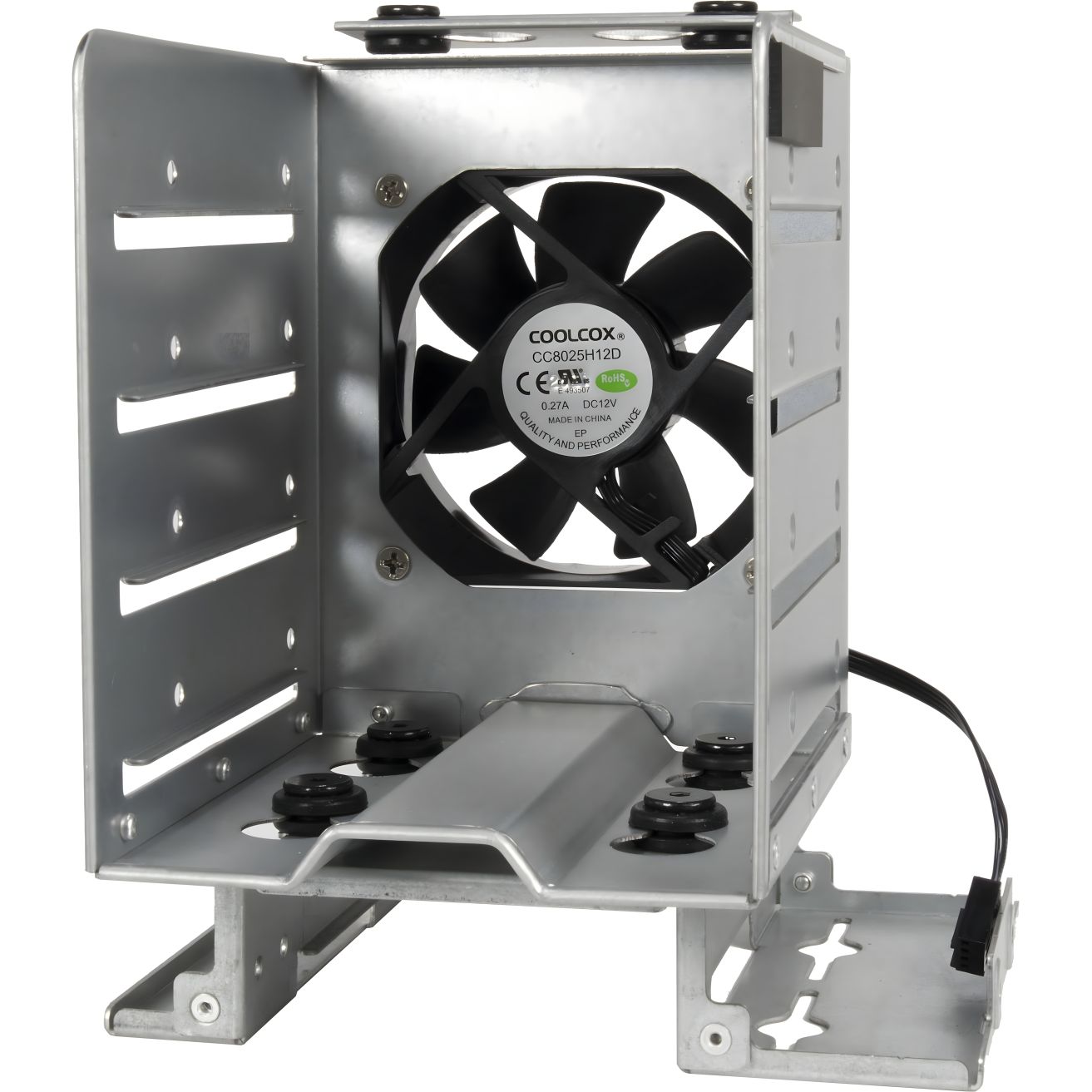

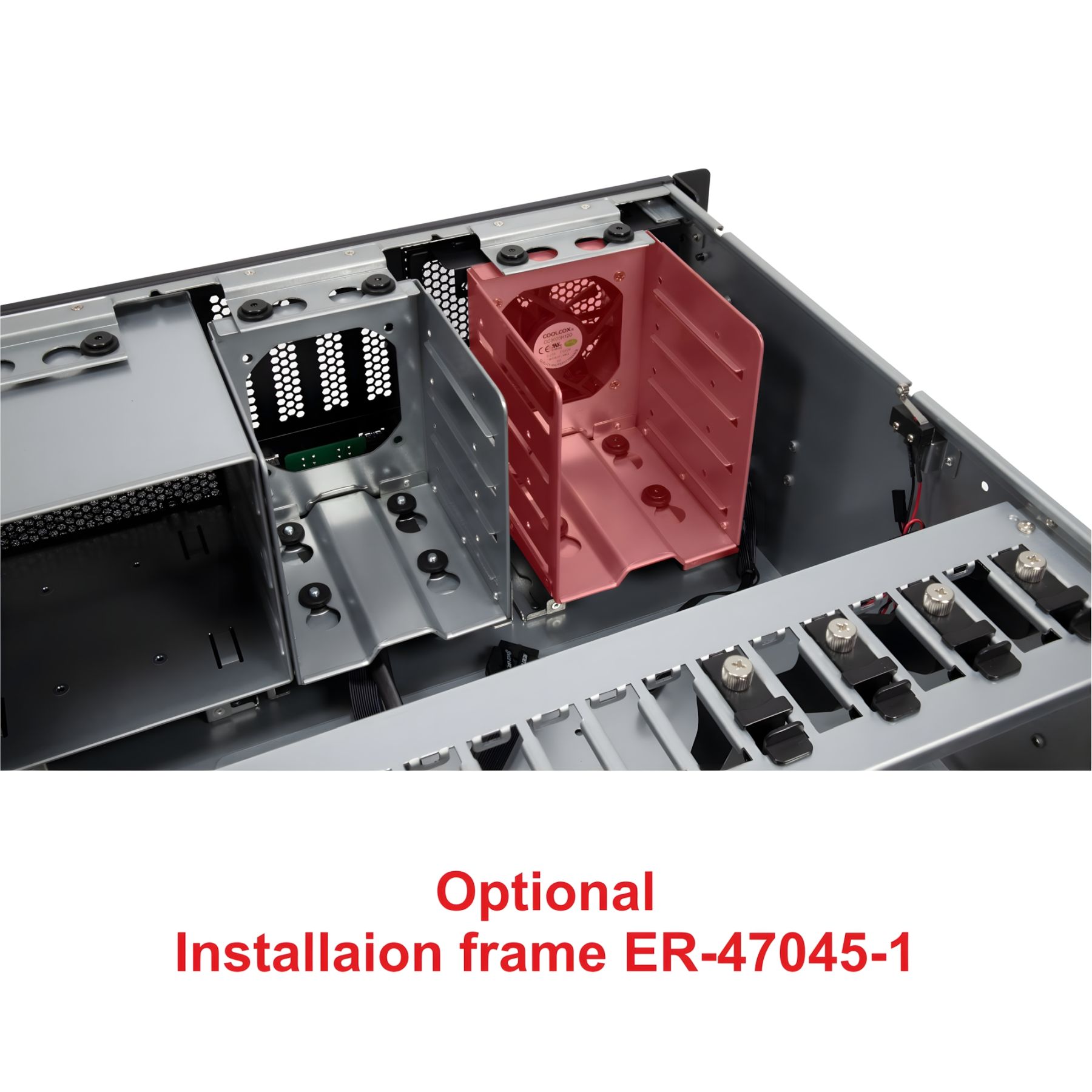

Mounting frame ER-47045-1for 4x 3,5" and 1x 2,5" |
![]() |

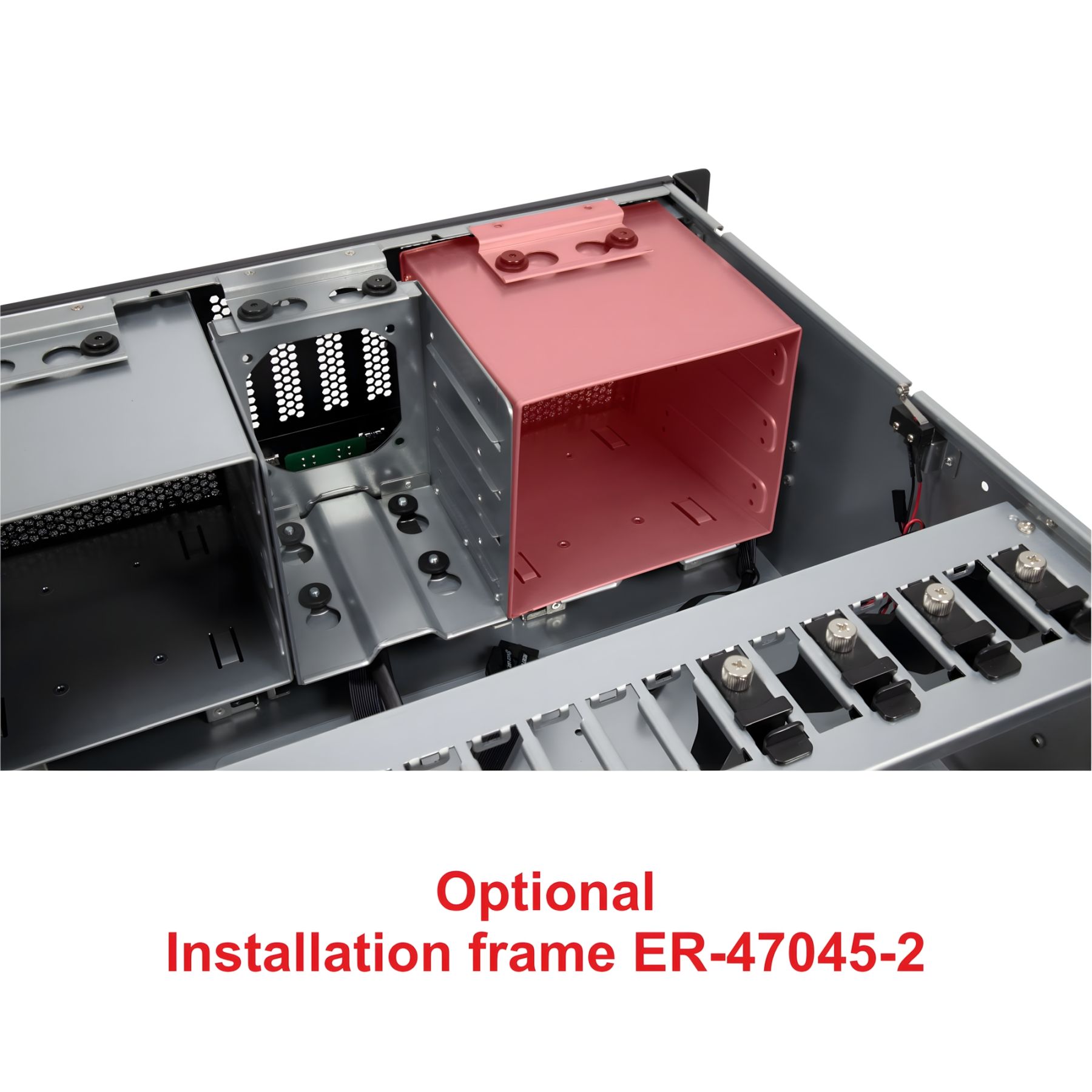

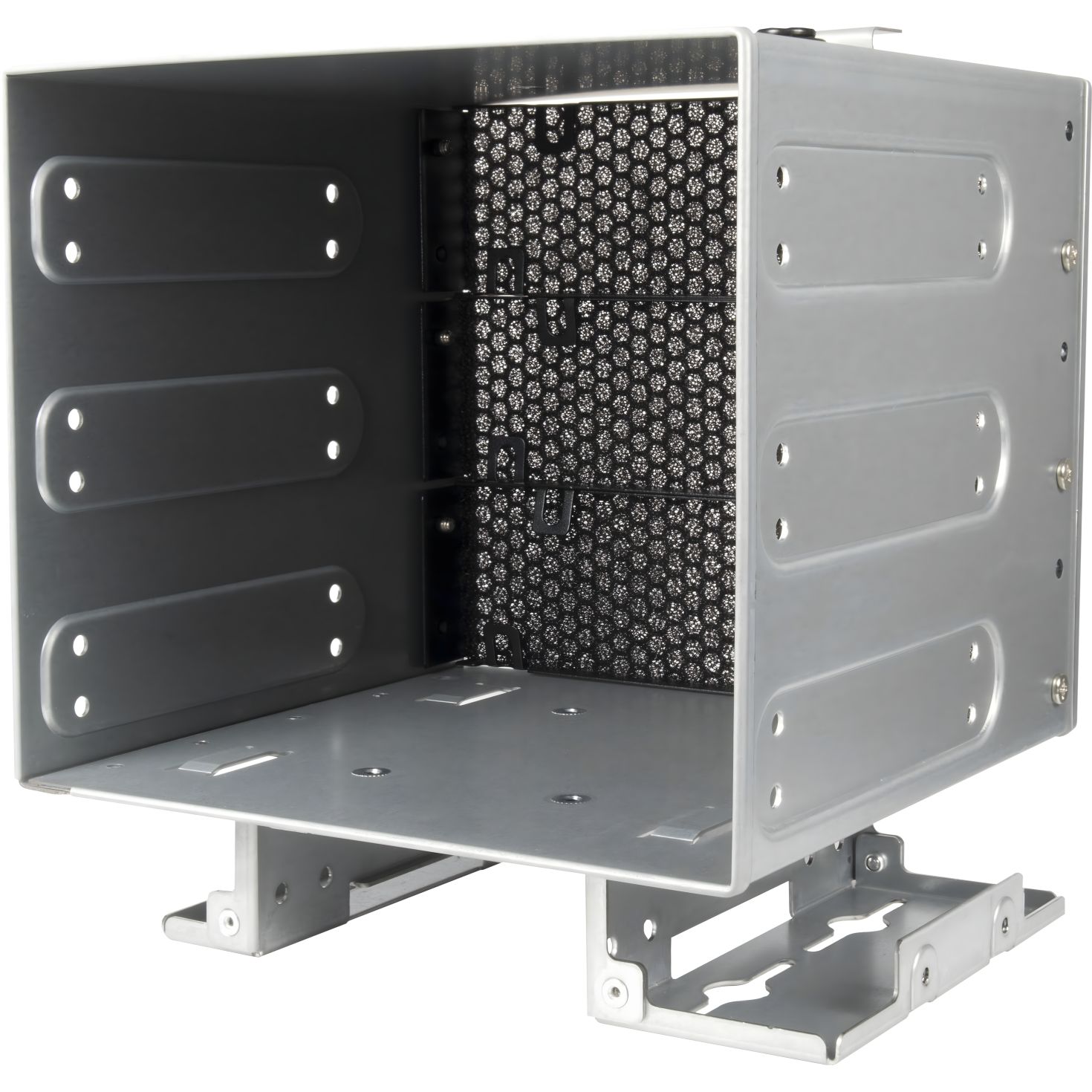

Mounting frame ER-47045-2for 3x 5,25" and 1x 2,5" |
![]() |
Extension kit SF-47045 |
![]() |

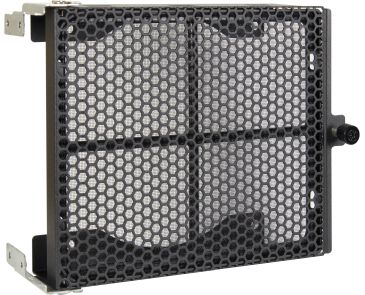

Door T-47045 |
![]() |

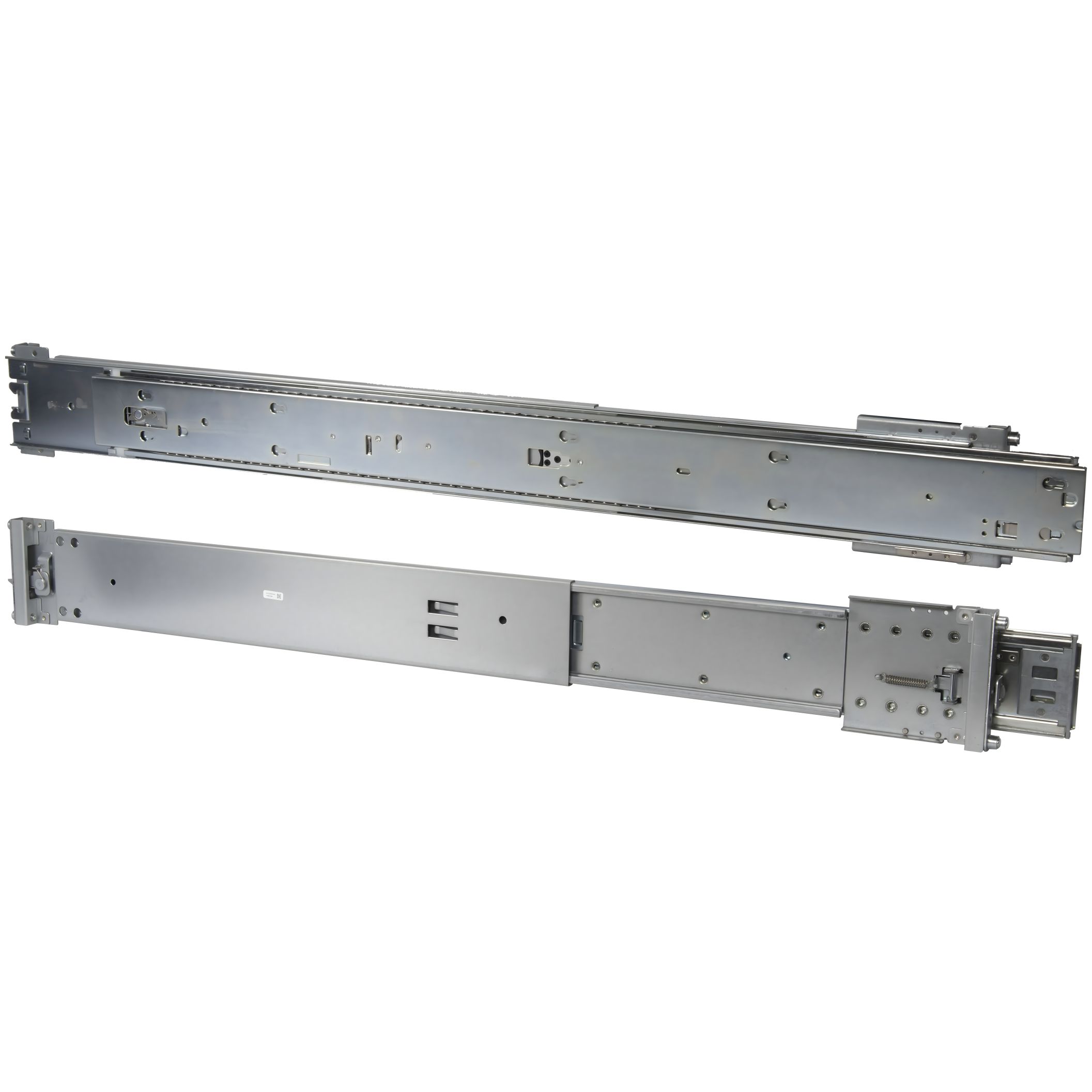

18" x 10mm Telescopic rail |
![]() |
20" x 10mm Telescopic rail |
![]() |
26" x 10mm Telescopic rail |
![]() |
Mini-Redundant PS/2 power supply 450W |
![]() |
Mini-Redundant PS/2 power supply 550W |
![]() |
Mini-Redundant PS/2 power supply 700W |
![]() |
Power Supplies:ATX-Power Supplies |
